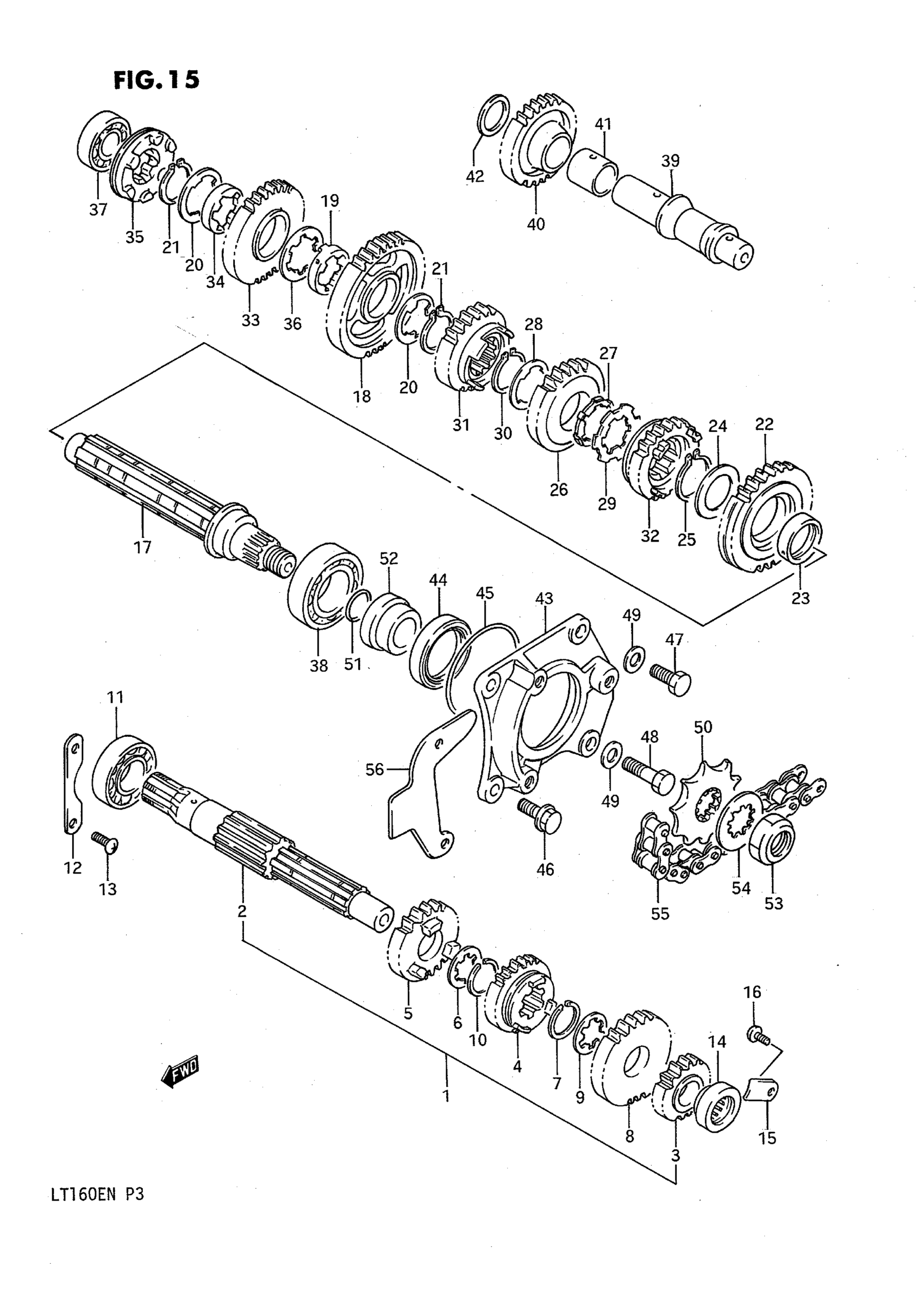

Suzuki LT160E (1992) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 10

24120-02C00

Unavailable

2

COUNTERSHAFT (NT:12)

24121-18A03

Unavailable

3

GEAR, 2ND DRIVE (NT:14) This part replaces 24221-02C00.

24221-02C01

Unavailable

4

GEAR, 3RD DRIVE (NT:17) This part replaces 24231-02C00.

24231-02C01

Unavailable

5

GEAR, 4TH DRIVE (NT:20) This part replaces 24241-02C00.

24241-02C01

Unavailable

6

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.48

7

CIRCLIP

09380-22006

$3.10

8

GEAR, 5TH DRIVE (NT:20) This part replaces 24251-18B00.

24251-18B01

Unavailable

9

WASHER

09167-22013

Unavailable

10

CIRCLIP

09380-22006

$3.10

11

BEARING, RH

09262-22018

$25.60

12

RETAINER

24741-18A00

Unavailable

13

SCREW This part replaces 02112-06128.

02112-06127

$1.84

14

BEARING, LH

09263-17026

$51.10

15

RETAINER

24742-18A00

$4.35

16

SCREW

02112-06087

$1.49

17

DRIVESHAFT

24131-35B10

Unavailable

18

GEAR, 1ST DRIVEN (NT:38) This part replaces 24311-02C00.

24311-02C01

Unavailable

19

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$18.67

20

LOCK WASHER

09167-25016

$3.72

21

SNAP RING

09380-25003

$3.04

22

GEAR, 2ND DRIVEN (NT:30)

24321-02C00

Unavailable

23

BUSH

09300-25020

$16.87

24

WASHER

08211-25351

$3.72

25

SNAP RING

09380-25003

$3.04

26

GEAR, 3RD DRIVEN (NT:28) This part replaces 24331-02C00.

24331-02C01

Unavailable

27

LOCK WASHER

09169-25001

$2.70

28

LOCK WASHER

09167-25016

$3.72

29

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

30

SNAP RING

09380-25003

$3.04

31

GEAR, 4TH DRIVEN (NT:24) This part replaces 24341-02C00.

24341-02C01

Unavailable

32

GEAR, 5TH DRIVEN (NT:19) This part replaces 24351-18B00.

24351-18B01

Unavailable

33

GEAR, REVERSE DRIVEN (NT:34)

24571-18A02

Unavailable

34

BUSH,REVERSE DRIVEN GEAR

24333-18A00

Unavailable

35

DOG

24581-18A00

Unavailable

36

WASHER

09167-25017

$3.87

37

BEARING, RH

09262-20059

$25.60

38

BEARING, LH (30X62X16) This part replaces 09262-30081.

09262-30084

$48.78

39

SHAFT, REVERSE IDLER

24551-35B10

Unavailable

40

GEAR, REVERSE IDLER (NT:29)

24561-18A02

Unavailable

41

BUSH, REVERSE IDLE GEAR

09300-20034

Unavailable

42

THRUST WASHER

08211-20301

$2.35

43

RETAINER

24751-35B10

$65.77

44

OIL SEAL (38X52X8)

09283-38017

$15.67

45

O RING (D:2.5,ID:71.9)

09280-70009

$4.64

46

BOLT, REAR LH This part replaces 01517-08207.

01550-08207

$2.69

47

BOLT

09100-08259

$2.23

48

BOLT

09100-08260

$2.33

49

WASHER (8.5X18X1)

09160-08043

$1.83

50

SPROCKET, ENGINE (NT:11)

27511-35B00

$20.66

51

O RING (D:2.5,ID:21)

09280-21008

$1.91

52

SPACER (L:25.1)

27531-35B10

$44.07

53

NUT

09140-18008

$6.00

54

LOCK WASHER

09167-22012

$1.54

55

CHAIN, DRIVE (520VSX84LE) DID This part replaces 27600-01C10-084.

27600-34A40-084

$145.77

56

PLATE, FRONT CHAIN GUIDE

27641-35B00

$5.30
