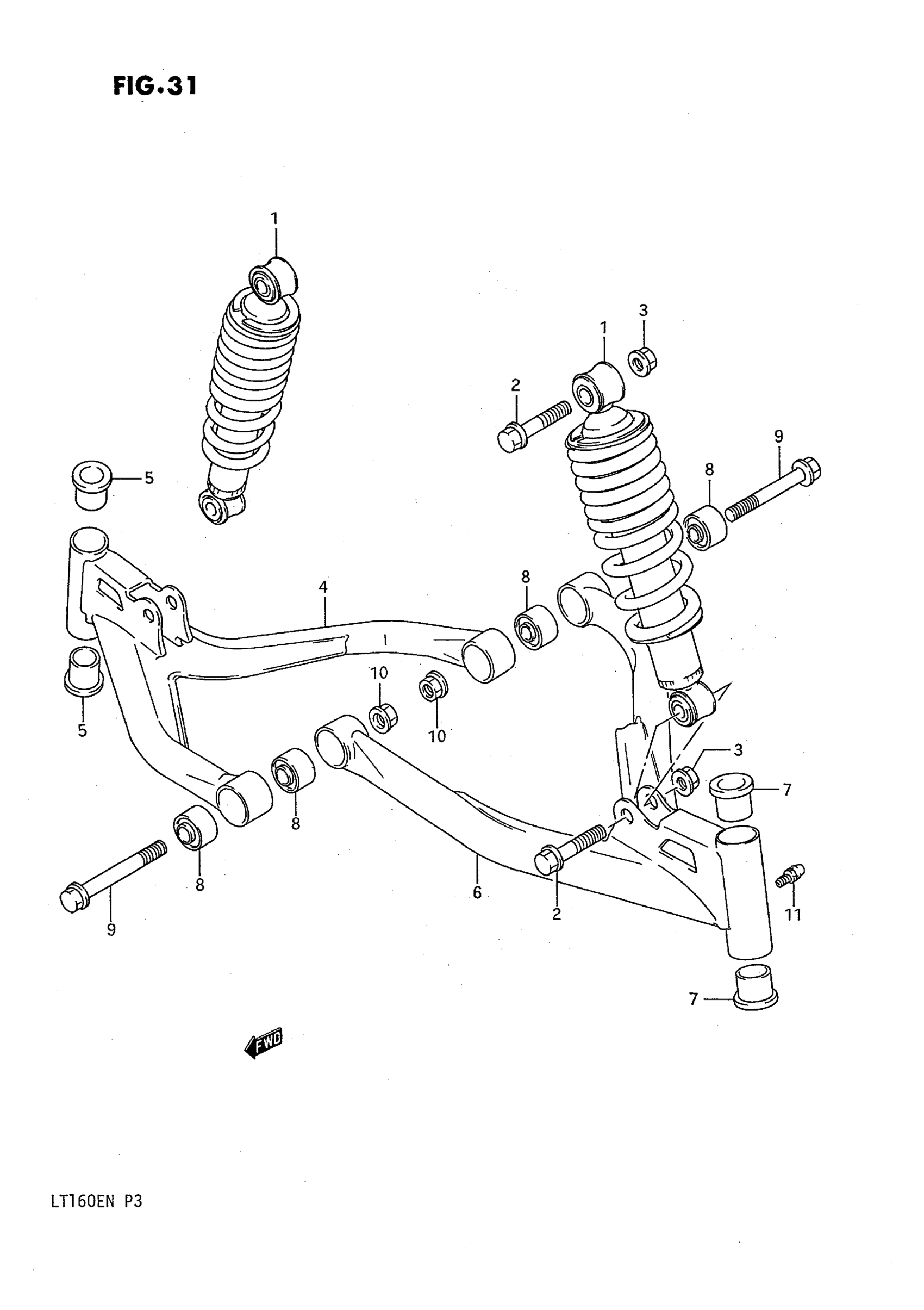

Suzuki LT160E (1992) SUSPENSION ARM Diagram

#

Description
Price

1

SHOCK ABSORBER, FRONT (ORANGE) | MODEL K

52100-02C00-25G

Unavailable

1

SHOCK ABSORBER, FRONT (WHITE) | MODEL L/M/N

52100-02C00-14L

Unavailable

2

BOLT

61181-02C00

$6.88

3

NUT

08319-31107

$2.73

4

ARM, SUSPENSION RH (SILVER) | MODEL K

52410-02C00-13L

Unavailable

4

ARM, SUSPENSION RH (WHITE) | MODEL L/M/N; Includes Item(s) 5

52410-02C00-14L

Unavailable

5

BUSH

51236-40B00

$19.07

6

ARM, SUSPENSION LH (SILVER) | MODEL K

52420-02C00-13L

Unavailable

6

ARM, SUSPENSION LH (WHITE) | MODEL L/M/N; Includes Item(s) 7

52420-02C00-14L

Unavailable

7

BUSH

51236-40B00

$19.07

8

BUSH, SUSPENSION ARM PIVOT

09319-10049

$17.14

9

BOLT, SUSPENSION ARM PIVOT This part replaces 09103-101H3.

09103-10173

$7.05

10

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

11

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68
