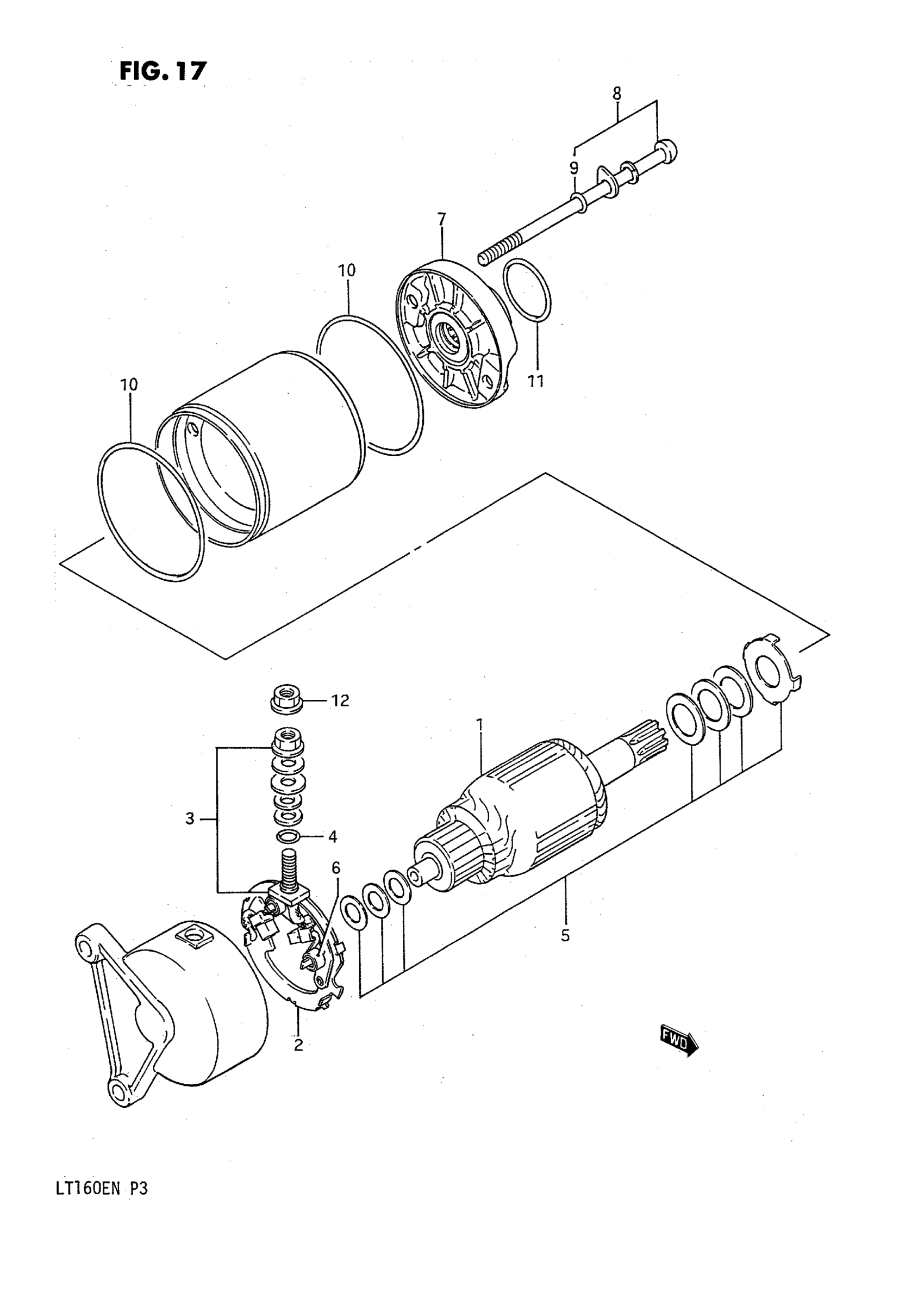

Suzuki LT160E (1992) STARTING MOTOR Diagram

#

Description
Price

MOTOR ASSY, STARTING | MODEL K/L This part replaces 31100-02C00.

31100-02C10

$649.60

MOTOR ASSY, STARTING | MODEL M/N; Includes Item(s) 1 - 10 This part replaces 31100-02C01.

31100-02C10

$649.60

1

ARMATURE | MODEL K/L This part replaces 31311-19B10.

31311-19B12

Unavailable

1

ARMATURE | MODEL M This part replaces 31311-19B11.

31311-19B12

Unavailable

1

ARMATURE | MODEL N

31311-19B12

Unavailable

2

HOLDER SET, BRUSH (-)

31132-19B10

$29.77

3

TERMINAL SET, BRUSH (+)

31130-19B10

$28.15

4

O RING

31143-49040

$3.71

5

WASHER SET

31170-19B10

$12.57

6

SPRING, BRUSH

31135-31300

$4.96

7

BRACKET ASSY, FRONT

31150-19B10

Unavailable

8

BOLT SET

31280-19B10

Unavailable

9

O RING

31143-49040

$3.71

10

O RING This part replaces 31264-31300.

31264-32E00

$6.68

11

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

12

NUT This part replaces 08361-35066.

08361-3506A

$1.80
