1992 Suzuki LT160E Rear Swinging Arm Diagram

← All diagrams

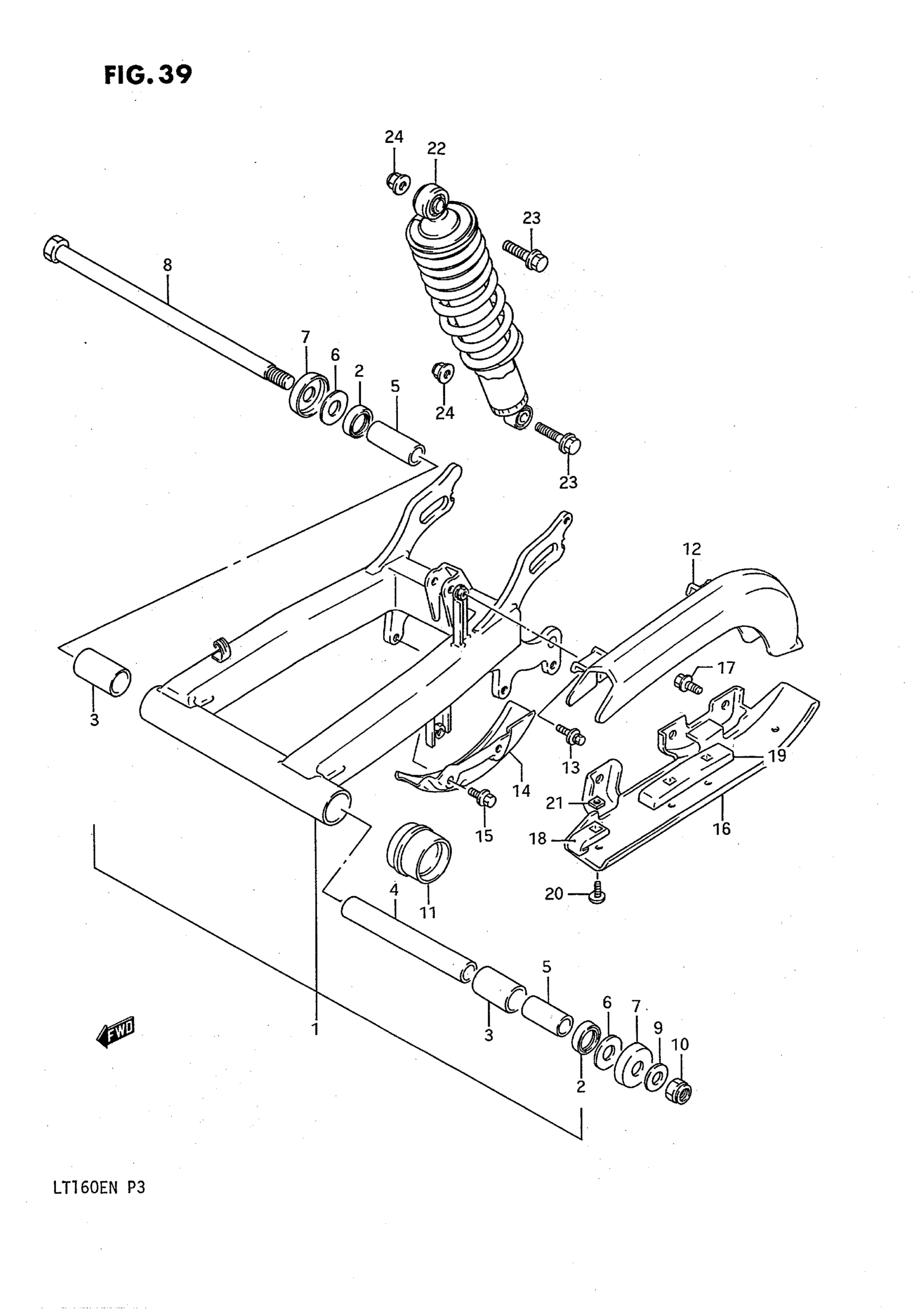

Find the part on the Rear Swinging Arm diagram for your 1992 Suzuki LT160E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Suzuki LT160E Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGINGARM ASSY, REAR (SILVER) | MODEL K

61000-02C00-13L

1
Out of stock

1

SWINGINGARM ASSY, REAR (WHITE) | MODEL L/M/N; Includes Item(s) 2 - 3

61000-02C00-14L

1
Out of stock

2

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

2
Out of stock

3

BUSH

61261-41B00

2
Out of stock

4

SPACER, PIVOT CENTER

61282-02C00

1
Out of stock

5

SPACER, PIVOT

61251-41B00

2
Out of stock

6

WASHER, THRUST

08211-15341

2
Out of stock

7

COVER This part replaces 61262-22A00.

61262-22A01

2
Out of stock

8

SHAFT, PIVOT

61211-02C00

1
Out of stock

9

WASHER

09160-14009

1
Out of stock

10

NUT This part replaces 09159-14013.

09159-14019

1
Out of stock

11

BUFFER, TOUCH DEFENSE This part replaces 61273-22AA0.

61273-22A00

1
Out of stock

12

CASE, CHAIN

61310-02C00

1
Out of stock

13

BOLT This part replaces 01977-06165.

01580-0616A

2
Out of stock

14

GUARD, REAR BRAKE

61380-02C00

1
Out of stock

15

BOLT This part replaces 01517-08128.

01550-08127

2
Out of stock

16

GUARD, SPROCKET

61390-02C00

1
Out of stock

17

BOLT This part replaces 01517-08128.

01550-08127

3
Out of stock

18

BUFFER, SPROCKET GUARD This part replaces 61396-19AA1.

61396-19A01

1
Out of stock

19

BUFFER, SPROCKET GUARD

61397-02C00

1
Out of stock

20

SCREW This part replaces 02142-05104.

02142-0510B

3
Out of stock

21

NUT This part replaces 08318-11056.

08318-1105A

3
Out of stock

22

ABSORBER ASSY, REAR SHOCK (ORANGE) | MODEL K

62100-02C00-25G

1
Out of stock

22

ABSORBER ASSY, REAR SHOCK (WHITE) | MODEL L/M/N

62100-02C00-14L

1
Out of stock

23

BOLT

61181-02C00

2
Out of stock

24

NUT This part replaces 08319-31106.

08319-31107

2
Out of stock
