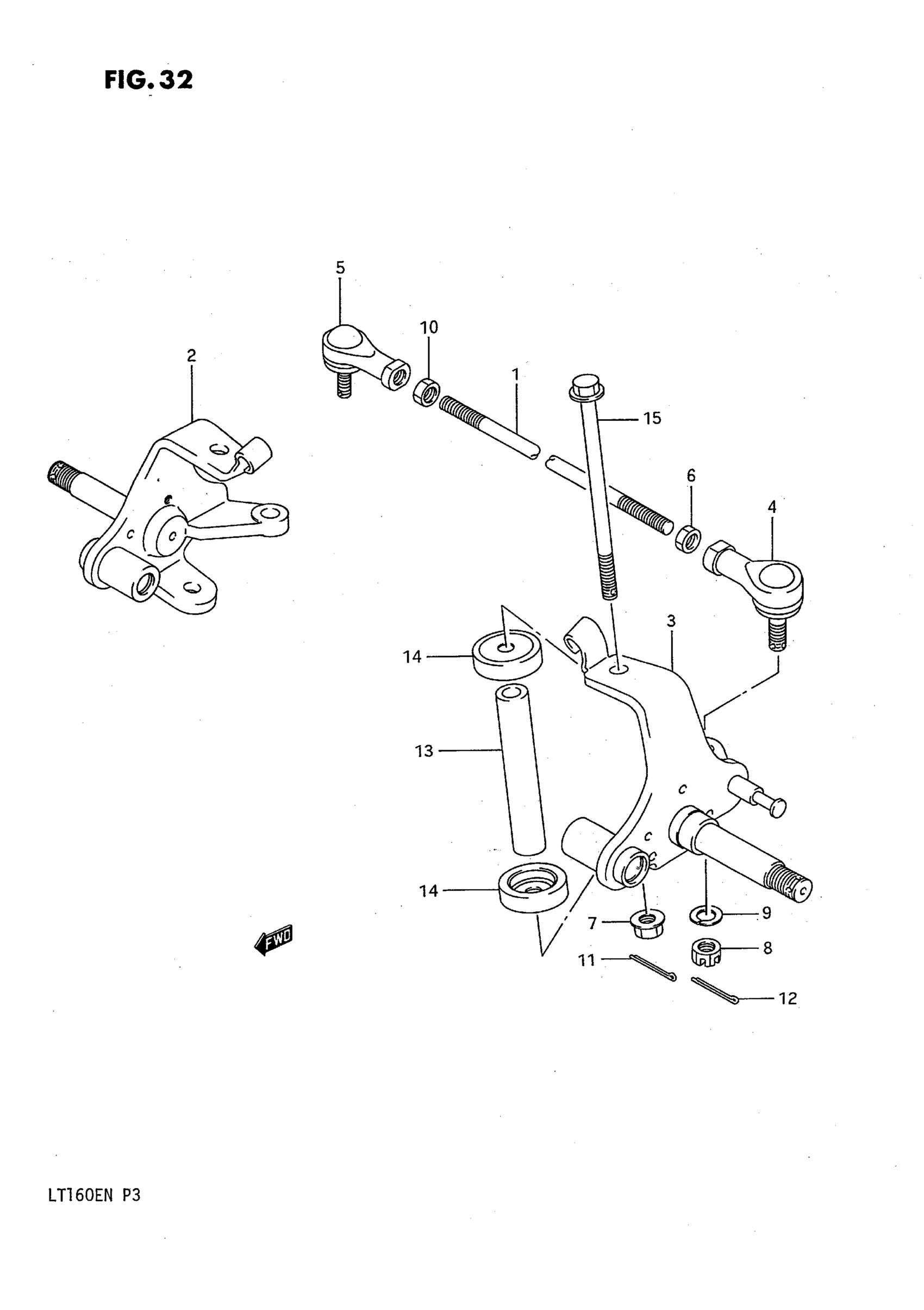

Suzuki LT160E (1992) TIE ROD Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-02C00

$52.60

2

KNUCKLE ARM, RH | MODEL K This part replaces 51230-02C00.

51230-02C01

$295.55

2

KNUCKLE ARM, RH | MODEL L/M/N

51230-02C01

$295.55

3

KNUCKLE ARM, LH | MODEL K This part replaces 51240-02C00.

51240-02C01

$290.08

3

KNUCKLE ARM, LH | MODEL L/M/N

51240-02C01

$290.08

4

END,ROD,R This part replaces 51260-02C00.

51260-43G00

$106.48

5

ROD END, LH

51270-02C00

$78.27

6

NUT This part replaces 08310-22105.

09140-10043

$2.92

7

NUT This part replaces 08319-31105.

08319-3110A

$2.73

8

NUT This part replaces 08314-41108.

08314-4010B

$2.50

9

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.86

10

NUT, TIE ROD, LH THREAD

09140-10027

$1.54

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

12

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

13

SPACER, RR SPNSN ARM UPPER This part replaces 51251-18901.

61554-31G00

$18.51

14

DUST SEAL

51255-18900

$4.09

15

BOLT, KNUCKLE ARM

09103-10202

$7.26
