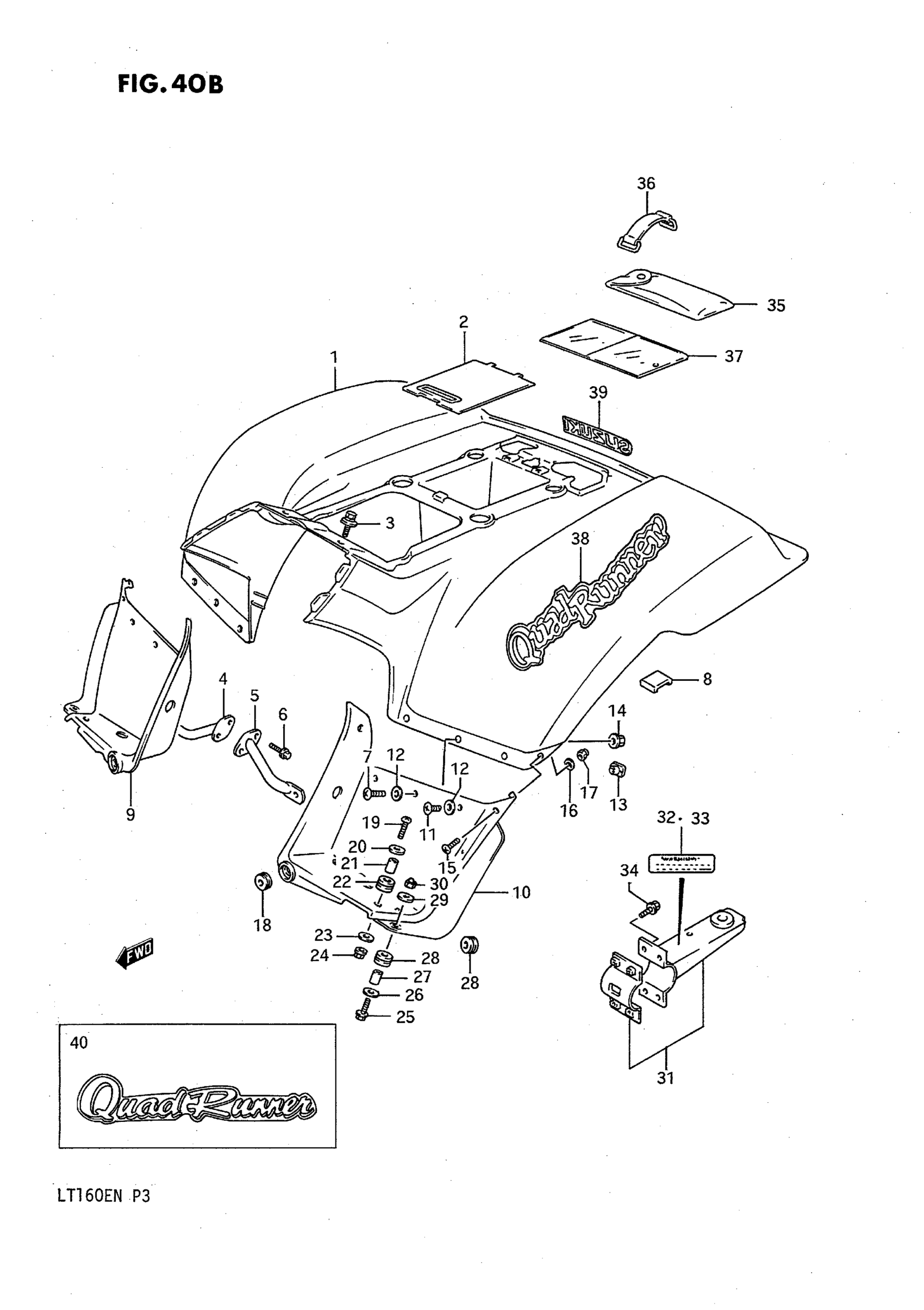

Suzuki LT160E (1992) REAR FENDER (MODEL M/N) Diagram

#

Description
Price

1

FENDER, REAR (WHITE)

63111-02C00-14L

Unavailable

2

COVER, FENDER (WHITE)

63171-02C00-14L

Unavailable

3

BOLT This part replaces 09118-060B7.

09118-06017

$2.12

4

REINFORCEMENT, RH

63140-02C00

Unavailable

5

REINFORCEMENT, LH

63150-02C00

Unavailable

6

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

7

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

8

PLUG

09250-09007

Unavailable

9

BODY, MUD GUARD RH (BLACK)

63330-02C10-291

Unavailable

10

BODY, MUD GUARD LH (BLACK)

63340-02C10-291

Unavailable

11

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

12

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

13

NUT This part replaces 09146-06001.

09146-06003

$2.12

14

NUT, CENTER

08319-31067

$2.03

15

SCREW This part replaces 02142-15125.

02142-1512B

$2.34

16

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

17

.NUT This part replaces 08319-21055.

08319-2105A

$2.19

18

CUSHION (8.5X20X8) This part replaces 09320-080A7.

09320-08510

$1.97

19

SCREW, REAR This part replaces 02142-05204.

02142-0520B

$1.78

20

WASHER (5.5X16X1.2) This part replaces 09160-05031.

09160-05037

$1.49

21

SPACER (6.1X8X9.5) This part replaces 09180-06044.

09180-06248

$2.12

22

CUSHION (8X22X7) This part replaces 09320-080B3.

09320-08509

$1.93

23

WASHER (5.5X20X1.2) This part replaces 09160-05011.

09160-05501

$1.84

24

NUT This part replaces 08319-31056.

08319-3105B

$3.55

25

BOLT This part replaces 01534-05165.

01550-0516B

$2.88

26

WASHER (5.5X20X1.2) This part replaces 09160-05011.

09160-05501

$1.84

27

SPACER (6.1X8X9.5) This part replaces 09180-06044.

09180-06248

$2.12

28

CUSHION (8X22X7) This part replaces 09320-080B3.

09320-08509

$1.93

29

WASHER (5.5X16X1.2) This part replaces 09160-05031.

09160-05037

$1.49

30

NUT This part replaces 08313-11055.

08313-1005B

$2.70

31

TWO SET, TRAILER | OPT; Includes Item(s) 32 - 34

95209-02C20

Unavailable

32

LABEL, WARNING | OPT

68617-02C40

Unavailable

33

LABEL, WARNING | OPT

68617-02C50

Unavailable

34

BOLT, BRACE | OPT This part replaces 01937-08206.

01570-0820A

$3.15

35

TOOL ASSY This part replaces 09800-20018.

09800-21075

$44.50

36

BAND This part replaces 09462-000E6.

09462-00046

$3.70

37

BAG,OWNER'S MAN This part replaces 94980-02C00.

94980-01C02

$20.65

38

EMBLEM, Q.S | MODEL M

68172-02C30-0VZ

Unavailable

39

EMBLEM,SUZUKI | MODEL M/N

68174-02C00-E76

Unavailable

40

EMBLEM, Q.R | MODEL N ***

68171-02C00-1JL

Unavailable
