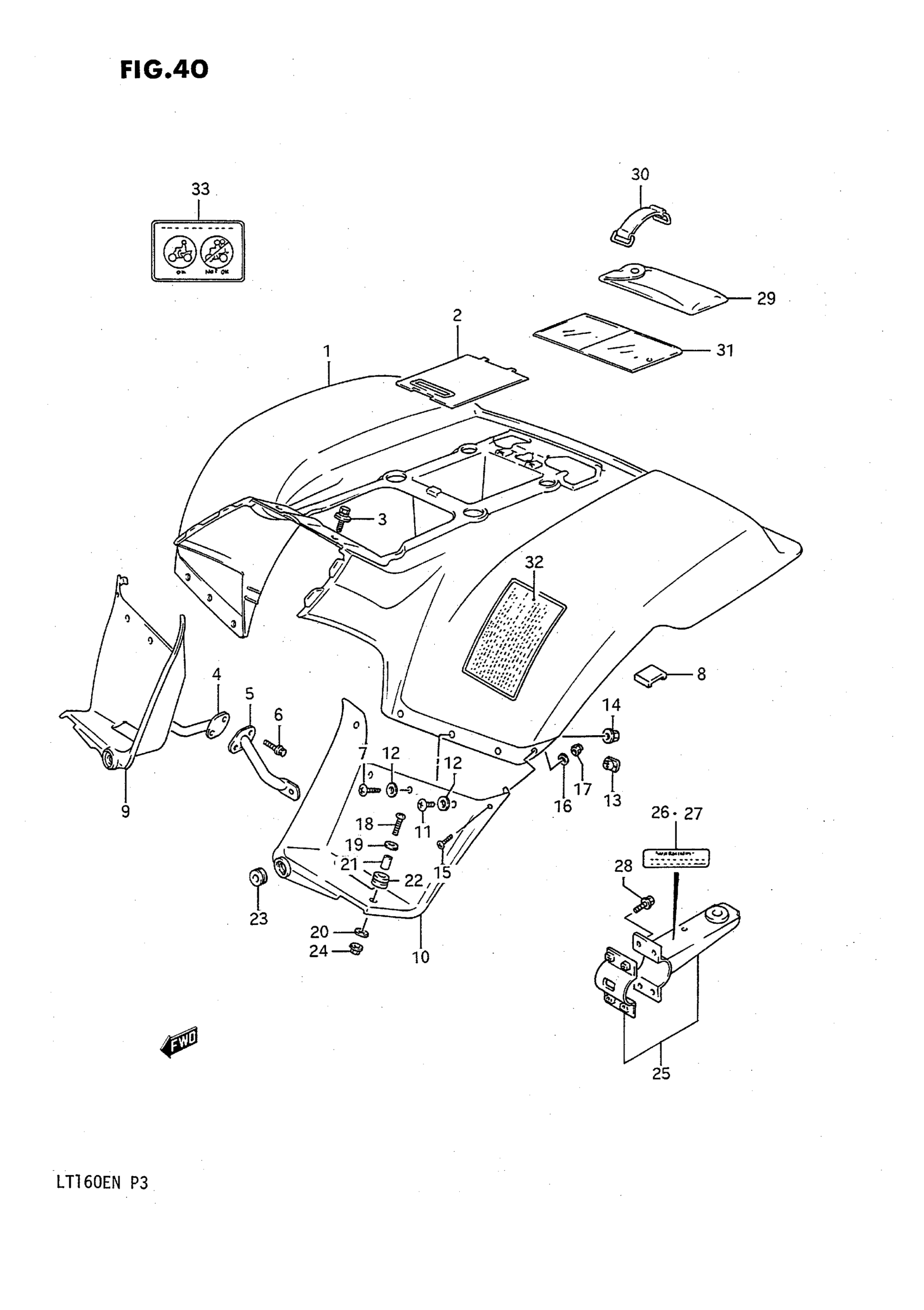

Suzuki LT160E (1992) REAR FENDER (MODEL K) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 63111-02C00-25G.

63111-02X50-25G

Unavailable

2

COVER, FENDER (ORANGE)

63171-02C00-25G

Unavailable

3

BOLT This part replaces 09118-060B7.

09118-06017

$2.12

4

REINFORCEMENT, RH

63140-02C00

Unavailable

5

REINFORCEMENT, LH

63150-02C00

Unavailable

6

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

7

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

8

PLUG

09250-09007

Unavailable

9

MUD GUARD, RH (BLACK)

63331-02C00-291

Unavailable

10

MUD GUARD, LH (BLACK)

63341-02C00-291

Unavailable

11

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

12

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

13

NUT This part replaces 09146-06001.

09146-06003

$2.12

14

NUT, CENTER

08319-31067

$2.03

15

SCREW This part replaces 02142-15125.

02142-1512B

$2.34

16

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

17

.NUT This part replaces 08319-21055.

08319-2105A

$2.19

18

SCREW, REAR This part replaces 02142-05204.

02142-0520B

$1.78

19

WASHER (5.5X16X1.2) This part replaces 09160-05031.

09160-05037

$1.49

20

WASHER (5.5X20X1.2) This part replaces 09160-05011.

09160-05501

$1.84

21

SPACER (6.1X8X9.5) This part replaces 09180-06044.

09180-06248

$2.12

22

CUSHION (8X22X7) This part replaces 09320-080B3.

09320-08509

$1.93

23

CUSHION (8.5X20X8) This part replaces 09320-080A7.

09320-08510

$1.97

24

NUT This part replaces 08319-31056.

08319-3105B

$3.55

25

TWO SET, TRAILER | OPT,TO 95209-02C20; Includes Item(s) 26 - 28 This part replaces 95209-02C10.

95209-02C20

Unavailable

26

LABEL, WARNING TRAILER | OPT,TO 68617-02C40 This part replaces 68617-02C20.

68617-02C40

Unavailable

27

LABEL, WARNING TRAILER | OPT,TO 68617-02C50 This part replaces 68617-02C30.

68617-02C50

Unavailable

28

BOLT, BRACE | OPT This part replaces 01937-08206.

01570-0820A

$3.15

29

TOOL ASSY This part replaces 09800-20018.

09800-21075

$44.50

30

BAND This part replaces 09462-000E6.

09462-00046

$3.70

31

BAG,OWNER'S MAN This part replaces 94980-19002.

94980-19022

$5.62

32

LABEL, WARNING

68366-189A0-7ZS

Unavailable

33

LABEL,WARNING This part replaces 68367-046A0.

68367-04611

Unavailable
