1992 Suzuki LT160E Rear Brake Diagram

← All diagrams

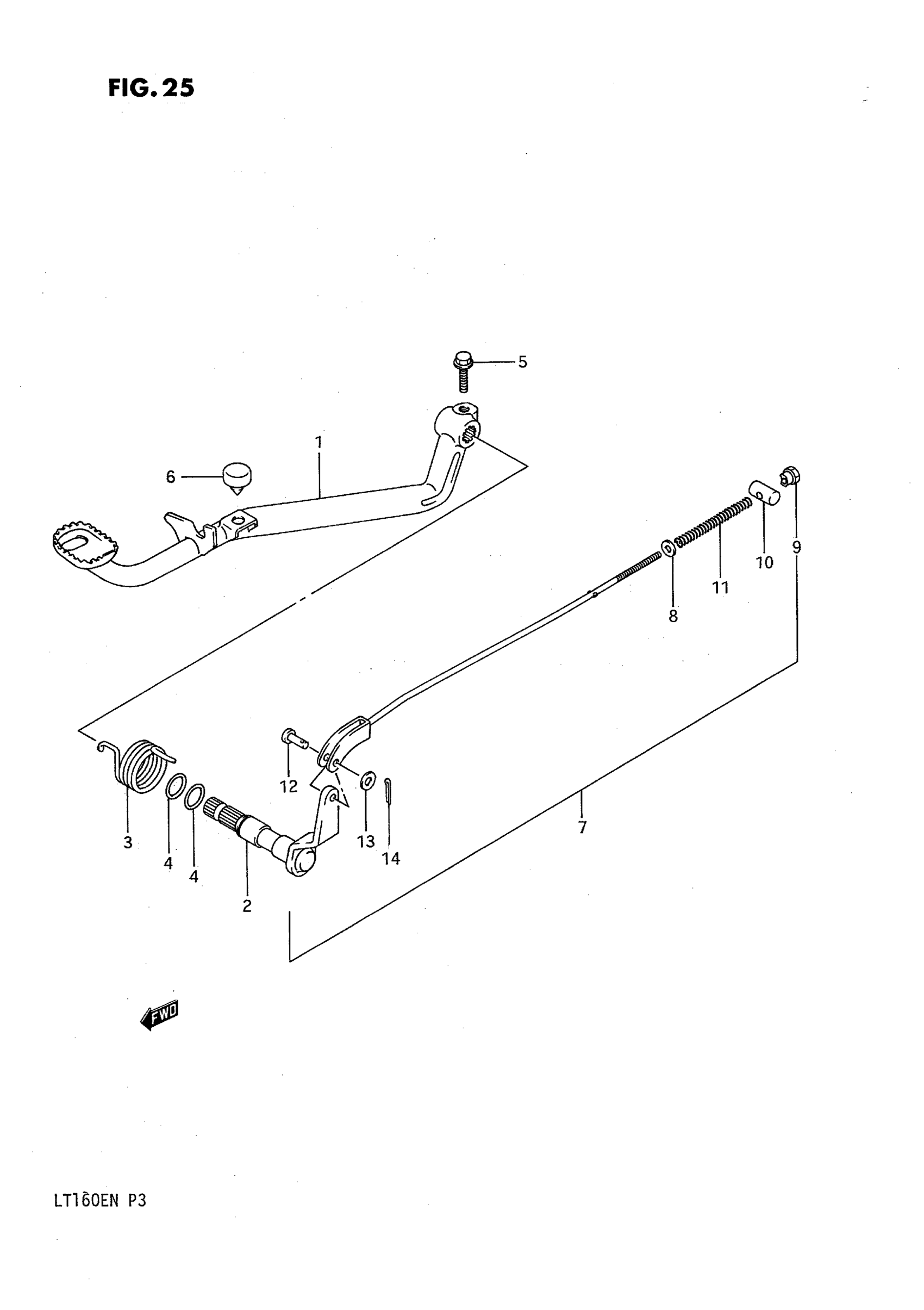

Find the part on the Rear Brake diagram for your 1992 Suzuki LT160E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Suzuki LT160E Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE (BLACK) | MODEL K

43110-02C00-019

1
Out of stock

1

PEDAL, BRAKE (BLACK) | MODEL L This part replaces 43110-02C00-19F.

43110-02C00-019

1
Out of stock

1

PEDAL, BRAKE (BLACK) | MODEL M/N This part replaces 43110-02C20-19F.

43110-02C20-019

1
Out of stock

2

ARM, BRAKE PEDAL

43120-02C00

1
Out of stock

3

SPRING, RETURN

43211-02C00

1
Out of stock

4

O RING

09280-17004

2
Out of stock

5

BOLT This part replaces 01517-08256.

01550-0825A

1
Out of stock

6

CUSHION This part replaces 09321-100B2.

09321-10012

1
Out of stock

7

ROD ASSY, BRAKE | Includes Item(s) 8 - 14

43300-02C00

1
Out of stock

8

.WASHER This part replaces 08322-21066.

08322-0106B

1
Out of stock

9

.NUT This part replaces 09150-06009.

09150-06010

1
Out of stock

10

PIN This part replaces 09209-130A6.

09209-13006

1
Out of stock

11

.SPRING This part replaces 09440-090B3.

09440-09004

1
Out of stock

12

PIN

09200-060B3

1
Out of stock

13

.WASHER This part replaces 08322-21066.

08322-0106B

1
Out of stock

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock
