1992 Suzuki LT160E Front Wheel Brake Diagram

← All diagrams

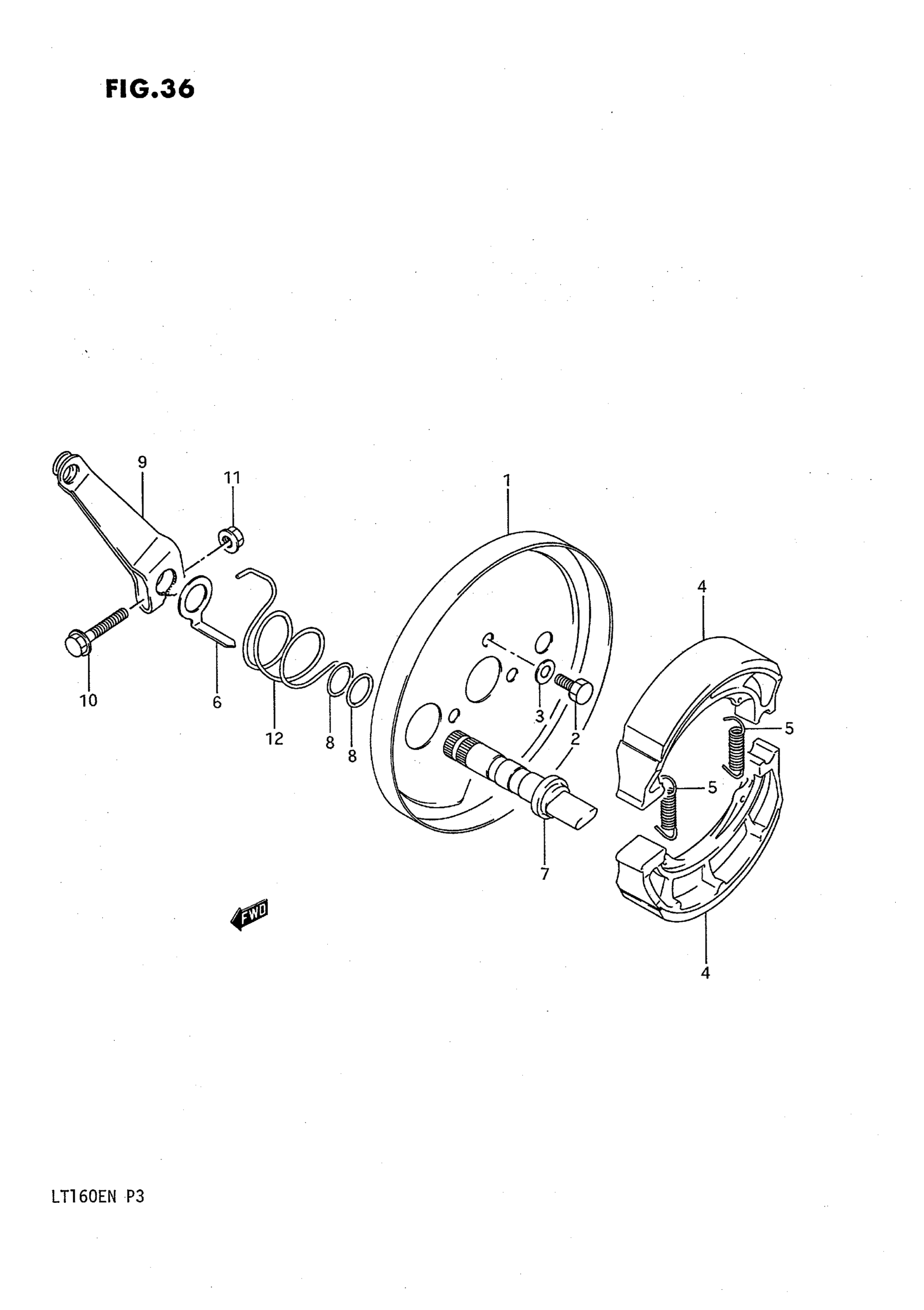

Find the part on the Front Wheel Brake diagram for your 1992 Suzuki LT160E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Suzuki LT160E Front Wheel Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PLATE, FRONT BRAKE RH

54511-02C00

1
Out of stock

1

PLATE, FRONT BRAKE LH

54811-02C00

1
Out of stock

2

BOLT This part replaces 01107-06106.

01500-0610B

6
Out of stock

3

6

$1.97

In stock

4

SHOE SET, FRONT BRAKE This part replaces 54410-02C00.

54400-02810

4
Out of stock

5

SPRING

09443-07025

4
Out of stock

6

PLATE, LINING INDICATOR

54492-02C00

2
Out of stock

7

CAM, FRONT BRAKE

54441-02C00

2
Out of stock

8

O RING

09280-14004

4
Out of stock

9

LEVER, FRONT BRAKE CAME RH

54451-02C00

1
Out of stock

9

LEVER, FRONT BRAKE CAME LH

54461-02C00

1
Out of stock

10

BOLT | MODEL K This part replaces 01517-06306.

01550-0630A

2
Out of stock

10

BOLT, CAME LEVER | MODEL L/M/N

09103-06135

2
Out of stock

11

NUT This part replaces 08316-16066.

08316-1006B

2
Out of stock

12

SPRING, CAME LEVER RETURN RH

54484-02C00

1
Out of stock

12

SPRING, CAME LEVER RETURN LH

54494-02C00

1
Out of stock
