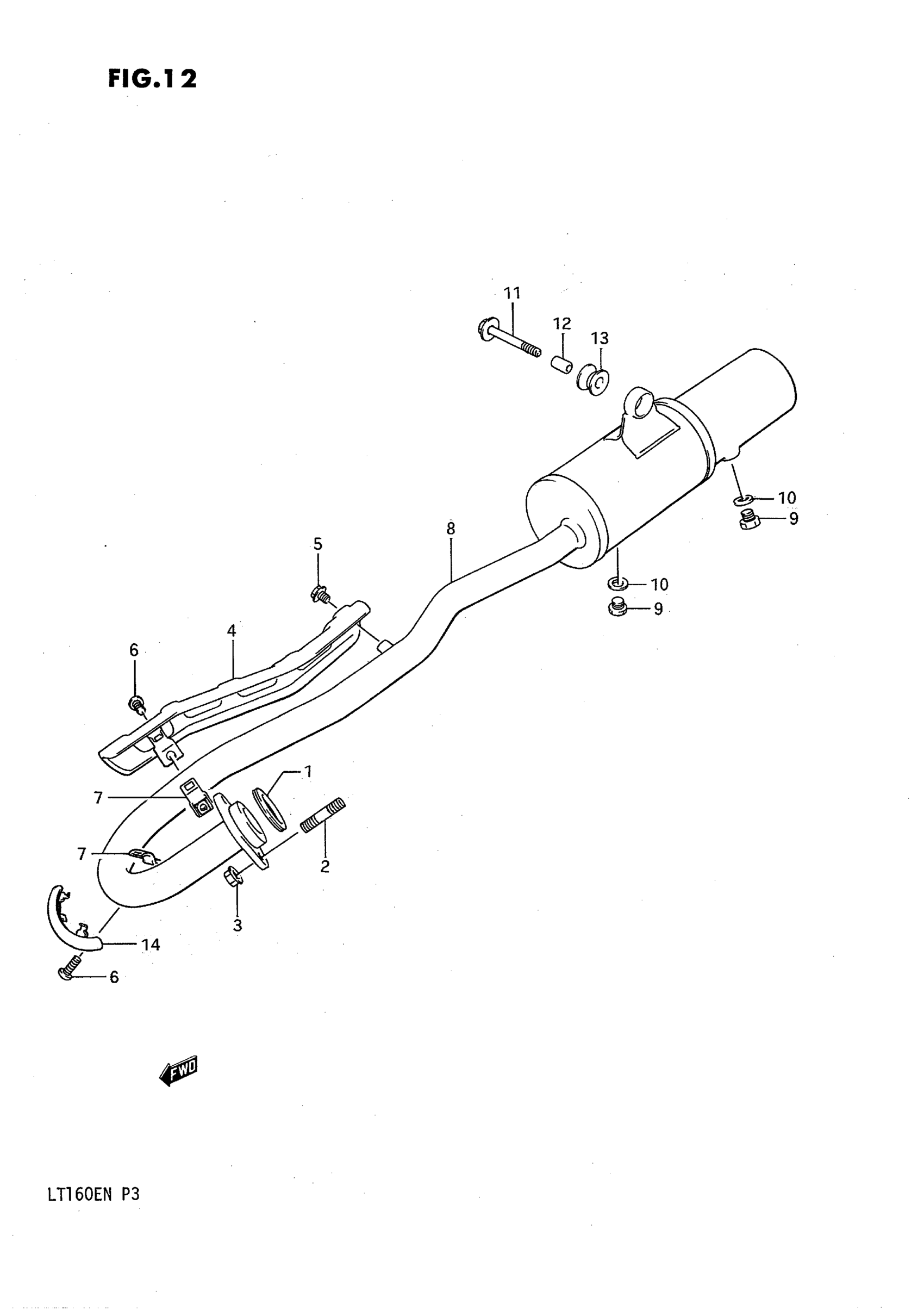

Suzuki LT160E (1992) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST This part replaces 14181-02C00.

14181-18C00

$7.22

2

STUD BOLT This part replaces 01421-08208.

01421-0820A

$1.91

3

NUT This part replaces 08361-15085.

08361-1508A

$2.02

4

COVER, EXHAUST PIPE

14180-02C00

Unavailable

5

BOLT This part replaces 01177-06105.

01580-0610A

$2.90

6

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

7

CLAMP, EXHAUST PIPE COVER

14190-02C00

$6.38

8

MUFFLER

14310-02C01

$722.21

9

PLUG, DRAIN

09247-12103

$2.84

10

GASKET

09168-12002

$1.59

11

BOLT (8X75)

09118-08133

Unavailable

12

SPACER (8.5X12X18.5) This part replaces 09180-08127.

09180-08195

$3.87

13

CUSHION This part replaces 09320-120D5.

09320-12033

$31.71

14

COVER, EXHAUST PIPE FRONT

14170-02C00

Unavailable
