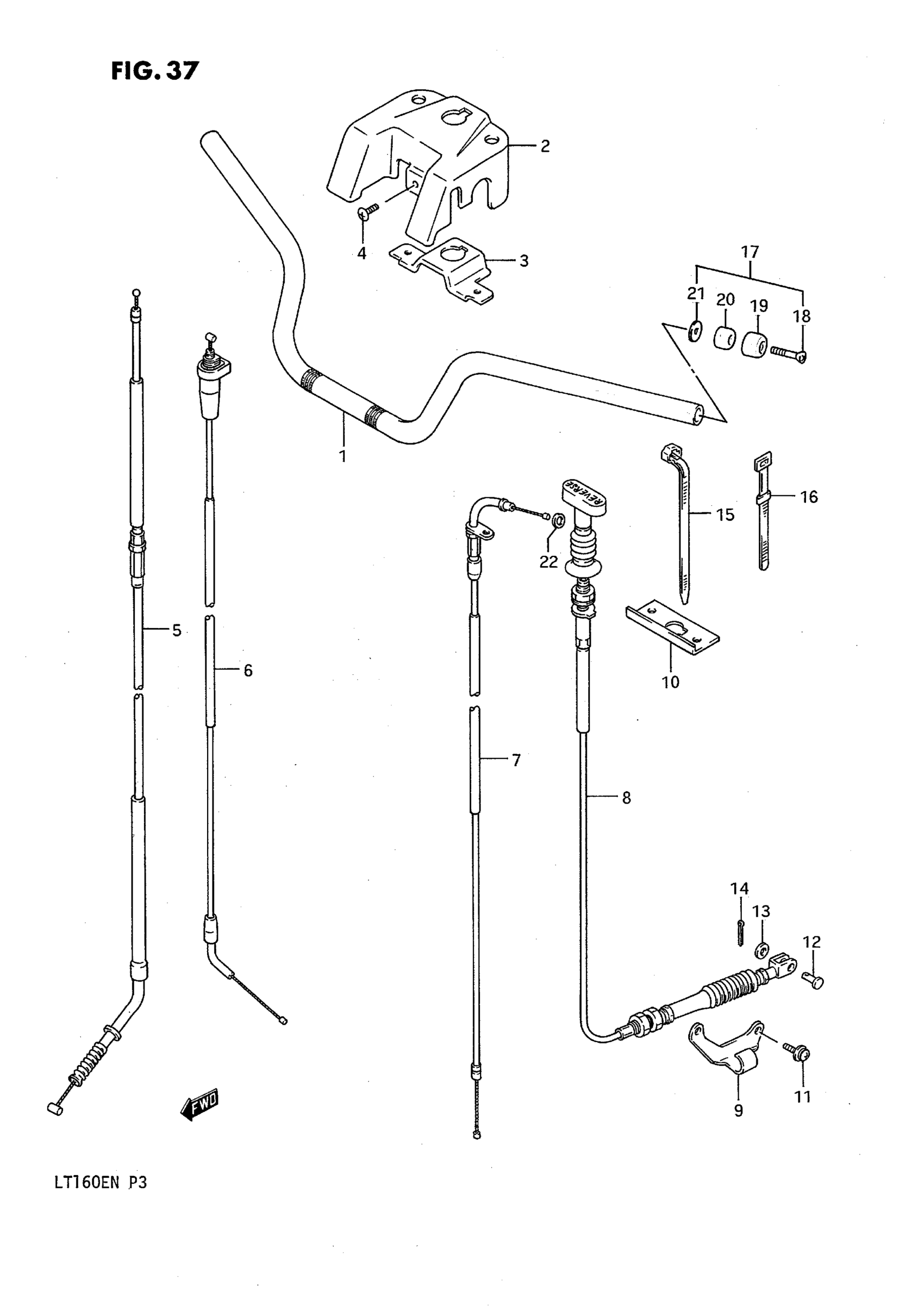

Suzuki LT160E (1992) HANDLE BAR Diagram

#

Description
Price

1

HANDLE BAR (BLACK)

56110-02C01-291

Unavailable

2

COVER, STEERING HEAD (BLACK) This part replaces 56171-02C00-19F.

56171-02C00-291

$21.10

3

BRACKET, COVER

56172-02C00

$13.05

4

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-16105.

02142-0610A

$1.49

5

CABLE ASSY, BRAKE

58100-02C01

$67.73

6

CABLE ASSY,THRO This part replaces 58300-02C00.

58300-02C02

$24.37

7

CABLE ASSY, STARTER

58400-02C01

$21.65

8

CABLE ASSY, REVERSE

58840-02C01

$115.03

9

BRACKET, LOWER

58871-02C00

Unavailable

10

BRACKET, UPPER

58872-02C00

$8.77

11

SCREW This part replaces 02112-76128.

02112-76127

Unavailable

12

PIN

09200-05001

$1.65

13

WASHER

09160-060B7

Unavailable

14

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

15

CLAMP This part replaces 09407-184A2.

09407-18402

$2.19

16

CLAMP

09407-12402

$3.04

17

BALANCER SET,HA | Includes Item(s) 18 - 21 This part replaces 56200-01810.

56200-02812

Unavailable

18

SCREW This part replaces 02132-06405.

02122-0640A

$2.83

19

CAP

56274-33400

Unavailable

20

BALANCER

56271-33400

Unavailable

21

SPACER This part replaces 56275-34400.

56275-34401

$4.02

22

WASHER This part replaces 09161-05015.

09320-06503

$2.63
