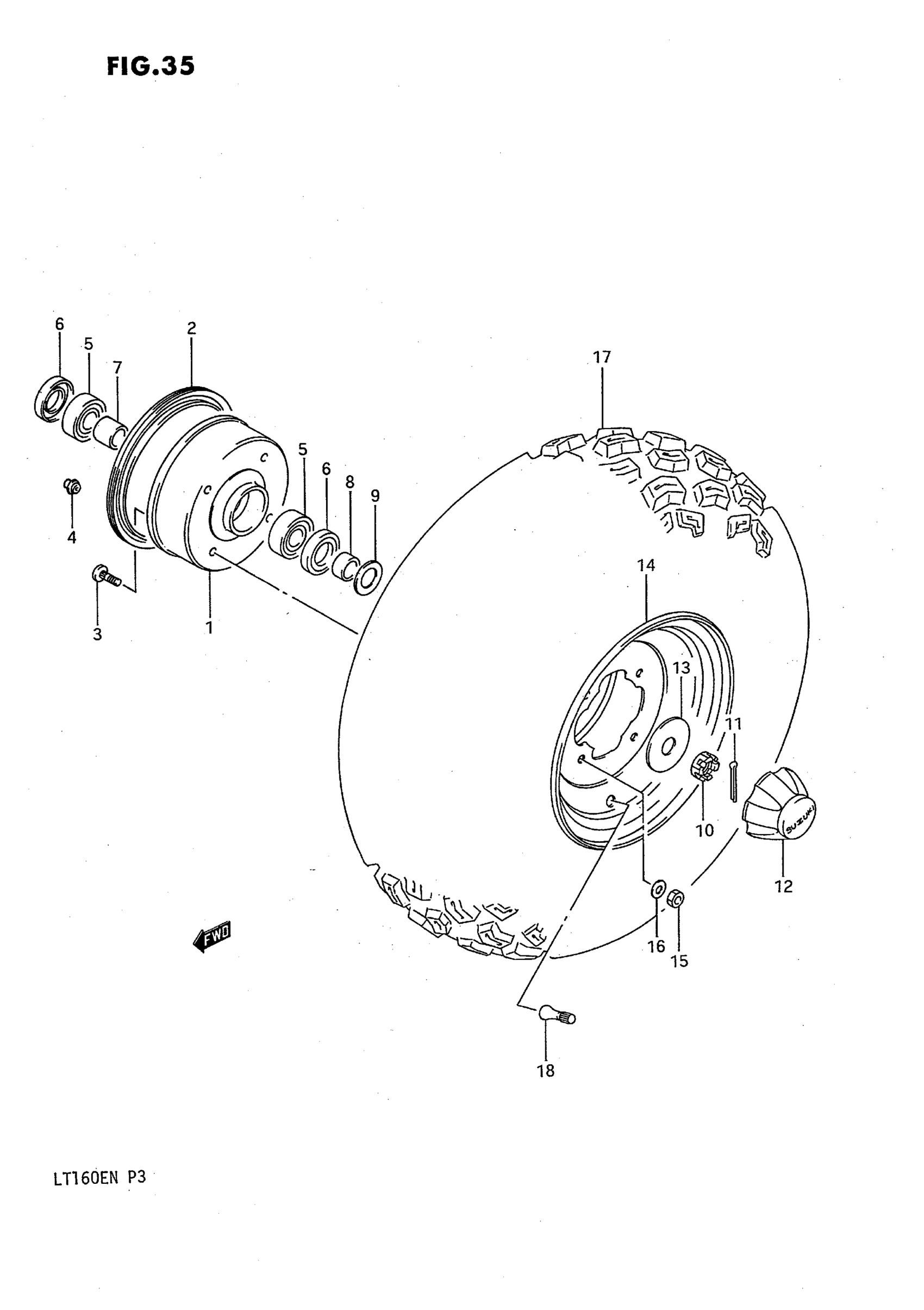

Suzuki LT160E (1992) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT (SILVER) This part replaces 54111-02C10-126.

54111-02C10-13L

$305.05

2

DUST SEAL, DRUM BRAKE

54124-02C00

$63.72

3

BOLT, FRONT HUB

09119-08073

$3.68

4

PLUG, BRAKE HOLE

54265-02C00

Unavailable

5

BEARING

08120-62037

$21.05

6

DUST SEAL

09284-22002

$13.87

7

SPACER, FRONT HUB

54731-02C00

$10.06

8

SPACER, FRONT AXLE

54741-189A0

$6.64

9

WASHER This part replaces 08322-11166.

08322-0116A

$1.84

10

NUT, HUB This part replaces 08314-41166.

08314-4016A

$3.79

11

PIN, REAR AXLE This part replaces 04111-40306.

04111-4030A

$1.49

12

CAP, WHEEL CENTER This part replaces 54725-19B00.

54725-39D00

$14.76

13

HOLDER, CAP This part replaces 64726-40BA0.

64726-40B00

$4.02

14

RIM, FRONT WHEEL (SILVER)

55310-02C00-13L

Unavailable

15

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

16

WASHER This part replaces 08322-21088.

08322-01087

$2.13

17

TIRE, FRONT (AT20X7-8) | MODEL K This part replaces 55100-02C10.

55100-02C30

Unavailable

17

TIRE, FRONT (AT20X7-8) (GOLDEN BOY) | MODEL L/M/N

55100-02C30

Unavailable

18

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25
