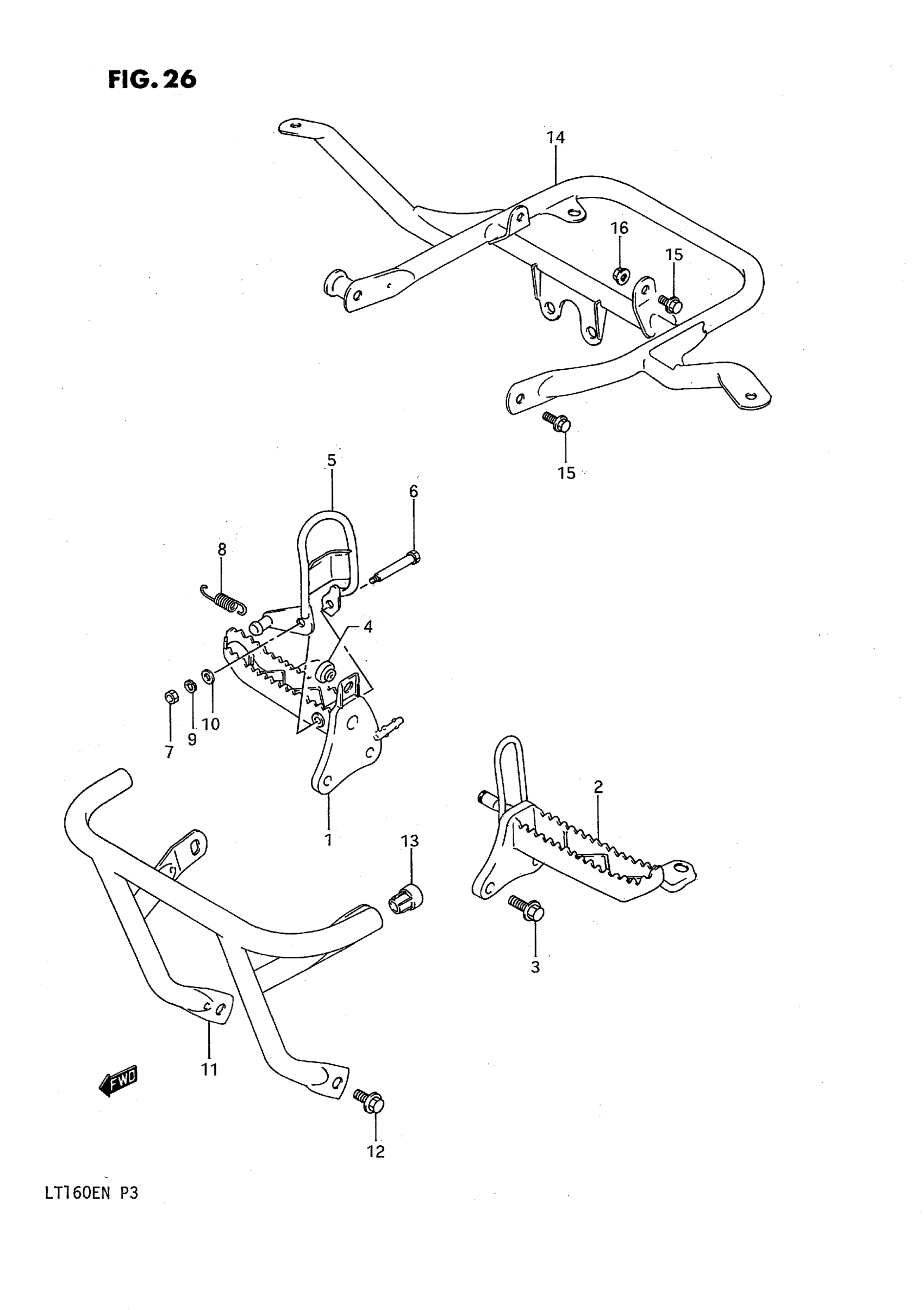

Suzuki LT160E (1992) FOOTREST Diagram

#

Description
Price

1

FOOTREST, FRONT RH (BLACK) | MODEL K

43510-02C00-019

Unavailable

1

FOOTREST, FRONT RH (BLACK) | MODEL L This part replaces 43510-02C00-19F.

43510-02C00-019

Unavailable

1

FOOTREST, FRONT RH (BLACK) | MODEL M/N This part replaces 43510-02C10-19F.

43510-02C10-019

Unavailable

2

FOOTREST, FRONT LH (BLACK) | MODEL K

43520-02C00-019

Unavailable

2

FOOTREST, FRONT LH (BLACK) | MODEL L This part replaces 43520-02C00-19F.

43520-02C00-019

Unavailable

2

FOOTREST, FRONT LH (BLUE) | MODEL M/N

43520-02C10-19F

Unavailable

3

BOLT

09103-10201

Unavailable

4

CUSHION This part replaces 09321-100A7.

09321-10007

$2.71

5

GUARD, FOOTREST RH (BLACK) | MODEL K

43590-02C00-019

Unavailable

5

GUARD, FOOTREST RH (BLUE) | MODEL L/M/N

43590-02C00-19F

Unavailable

6

BOLT, GUARD

09111-06060

Unavailable

7

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

8

SPRING

09443-13017

$6.63

9

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

10

WASHER, REAR This part replaces 09160-06098.

09160-06502

$2.30

11

GRIP, FRONT (ORANGE) | MODEL K

43990-02C00-25G

Unavailable

11

GRIP, FRONT (WHITE) | MODEL L/M/N

43990-02C00-14L

Unavailable

12

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

$2.32

13

CAP

43978-02C00

$4.33

14

GRIP, REAR (ORANGE) | MODEL K

43980-02C00-25G

Unavailable

14

GRIP, REAR (WHITE) | MODEL L/M/N

43980-02C00-14L

Unavailable

15

BOLT (8X16) This part replaces 01517-08165.

01550-0816A

$2.32

16

NUT This part replaces 08316-16085.

08316-1008B

$2.66
