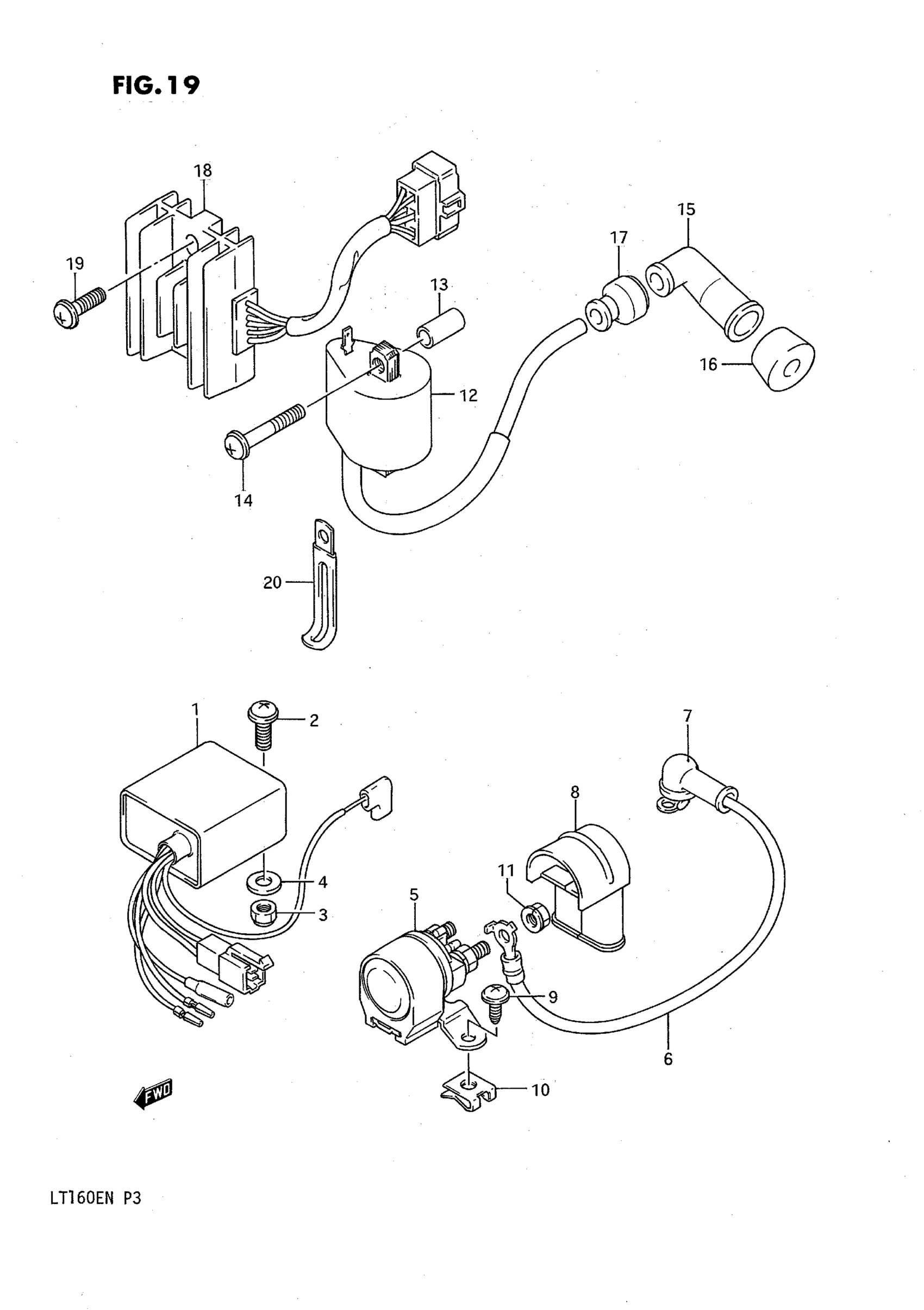

Suzuki LT160E (1992) ELECTRICAL Diagram

#

Description
Price

1

C.D.I UNIT

32900-02C00

Unavailable

2

SCREW

02152-06206

Unavailable

3

NUT This part replaces 09159-06066.

09159-06015

$2.02

4

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-060G4.

09160-06052

$1.49

5

RELAY, STARTING MOTOR This part replaces 31800-30B00.

31800-49100

$97.31

6

LEAD WIRE, STARTING MOTOR | Includes Item(s) 7 This part replaces 33850-02C00.

33850-44B01

$37.82

7

CAP, STARTER MOTOR This part replaces 31861-05300.

31861-48B10

$6.55

8

CAP, RELAY TERMINAL

31861-02C00

Unavailable

9

SCREW This part replaces 03241-15125.

03241-1512B

$2.39

10

NUT

09148-05019

$1.86

11

NUT This part replaces 08361-35066.

08361-3506A

$1.80

12

COIL ASSY,IGNIT This part replaces 33410-02C00.

33410-02C01

$112.62

13

SPACER This part replaces 09180-06072.

09180-06271

$2.35

14

SCREW This part replaces 02112-16356.

02142-0635A

$2.72

15

CAP, SPARK PLUG

33510-43010

$24.99

16

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

17

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

18

RECTIFIER ASSY This part replaces 32800-19B00.

32800-19B11

$227.68

19

SCREW This part replaces 02112-16206.

02142-0620A

$1.49

20

CLAMP This part replaces 09404-06403.

09404-06039

$1.74
