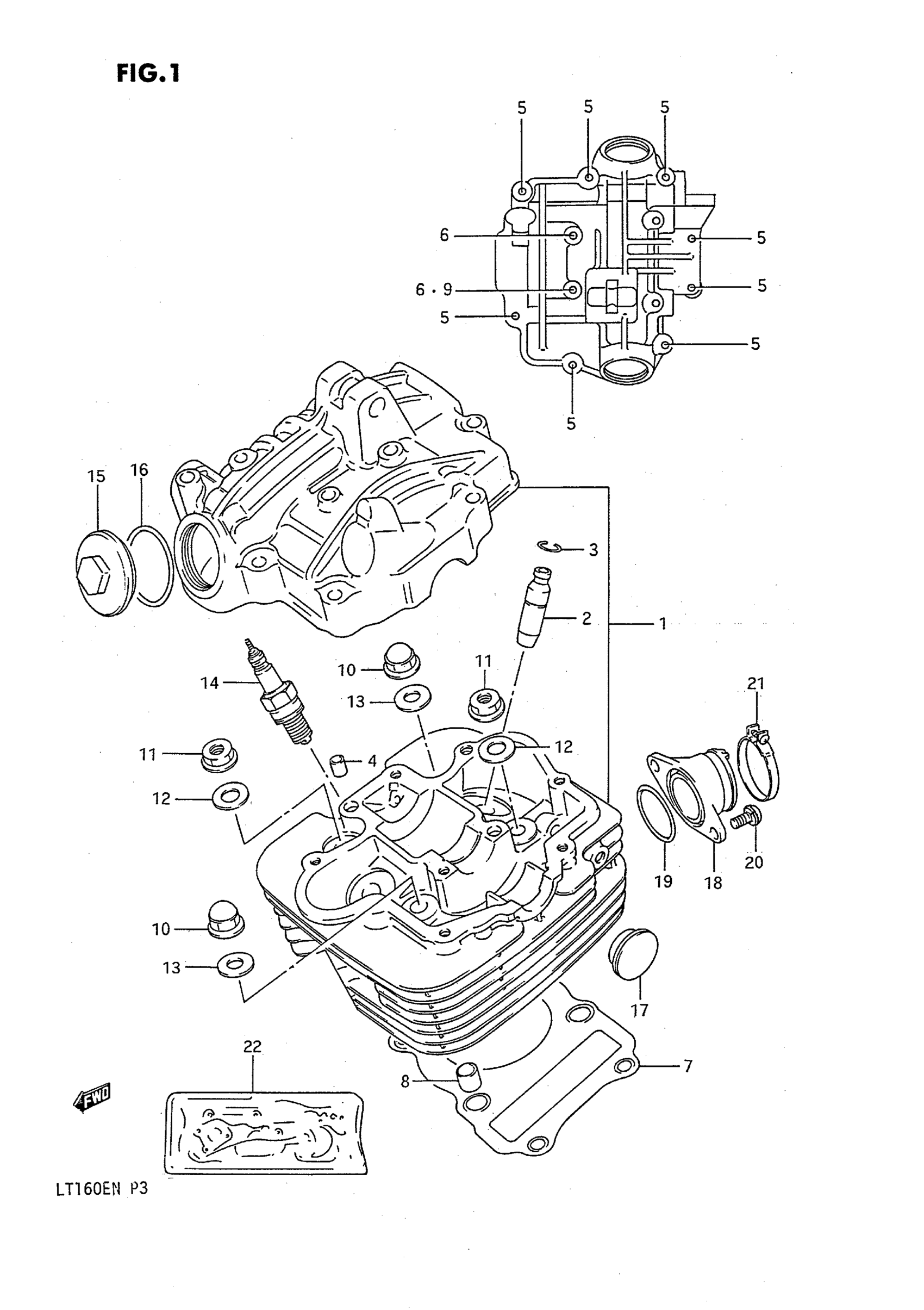

Suzuki LT160E (1992) CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY | Includes Item(s) 2 - 6

11100-02C00

Unavailable

2

GUIDE, VALVE (0S:0.3)

11115-05270

$32.10

3

.RING (10X85)

09381-10004

$1.50

4

PIN

09206-08001

$1.78

5

BOLT This part replaces 01517-06358.

01550-06357

$2.77

6

BOLT This part replaces 01517-06608.

01550-06607

$4.17

7

GASKET, CYLINDER HEAD

11141-02C01

$11.63

8

PIN

04211-11169

$1.78

9

WASHER

09168-06023

$2.35

10

NUT

09159-08074

$5.36

11

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

12

WASHER

09160-08039

$2.03

13

GASKET This part replaces 09168-08012.

09168-08013

$2.92

14

SPARK PLUG (NGK,DR7EA) | MODEL K This part replaces 09482-00182.

09482-00398

$3.03

14

SPARK PLUG (CHAMPION,A8YC) | MODEL K

09482-00292

Unavailable

14

SPARK PLUG (NGK,DPR7EA-9) | MODEL L/M/N This part replaces 09482-00352.

09482-00354

$3.32

14

NO DESCRIPTION AVAILABLE | MODEL L/M/N This part replaces 09482-00353-111.

09482-00353

Unavailable

15

CAP INSPECTION This part replaces 11175-37111.

11175-18920

$12.20

16

.O RING (D:3,ID:29.5)

09280-30001

$1.72

17

PLUG, HEAD

09241-22002

$5.24

18

PIPE, INTAKE This part replaces 13110-02C00.

13110-02C01

$32.10

19

O RING

09280-30008

$8.82

20

SCREW This part replaces 02112-36168.

02112-36167

$2.34

21

CLAMP This part replaces 09402-42207.

09402-42208

$6.88

22

GASKET SET | OPT This part replaces 11401-02840.

11401-02846

Unavailable
