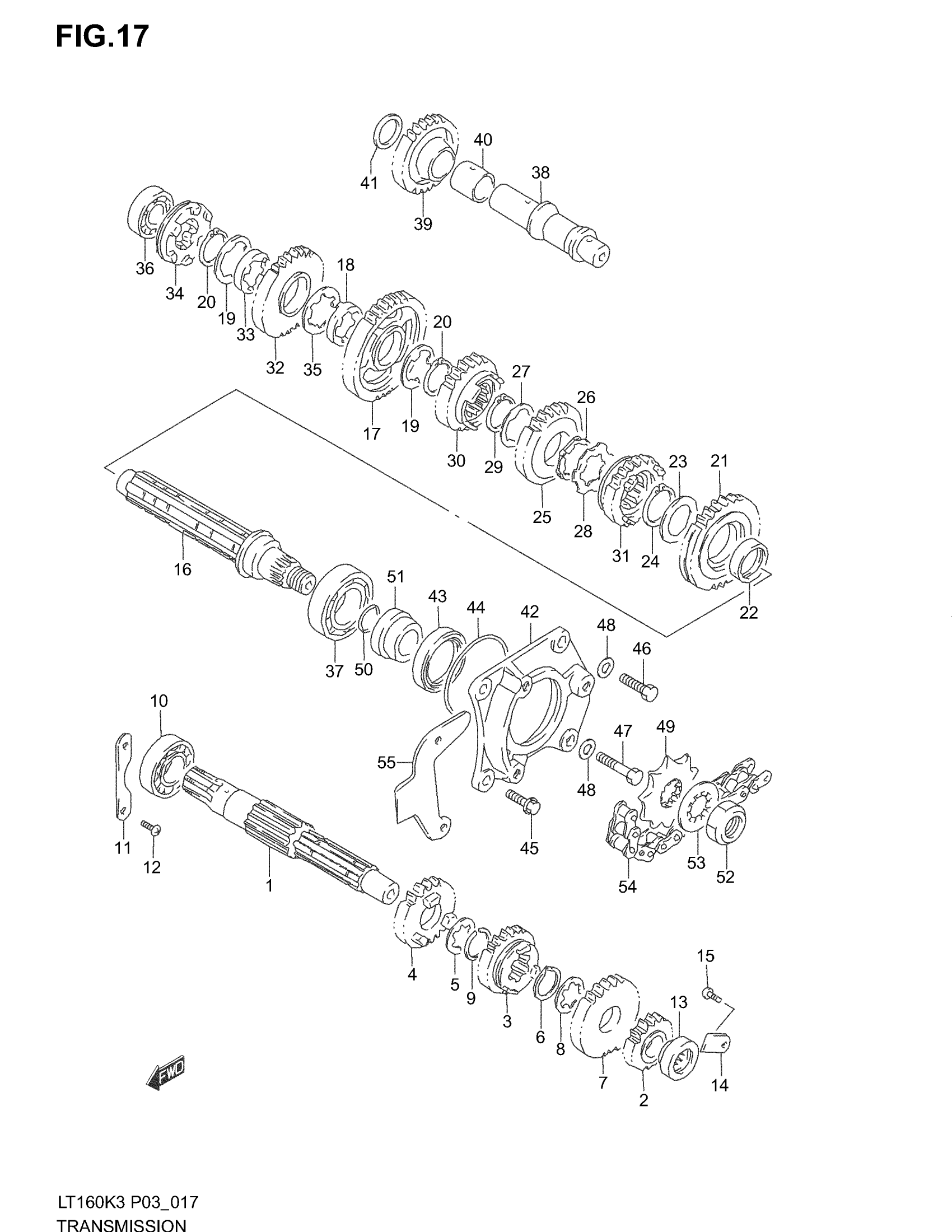

Suzuki LT160 (2004) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:12)

24121-18A03

Unavailable

2

GEAR, 2ND DRIVE (NT:14)

24221-02C01

Unavailable

3

GEAR, 3RD DRIVE (NT:17)

24231-02C01

Unavailable

4

GEAR, 4TH DRIVE (NT:20)

24241-02C01

Unavailable

5

WASHER (22X28X1.0)

09181-22139

$3.48

6

CIRCLIP

09380-22006

$3.10

7

GEAR, 5TH DRIVE (NT:20)

24251-18B01

Unavailable

8

WASHER (22.1X27X0.5)

09167-22013

Unavailable

9

CIRCLIP

09380-22006

$3.10

10

BEARING, RH (22X50X14)

09262-22018

$25.60

11

RETAINER

24741-18A00

Unavailable

12

SCREW (6X12)

09125-06110

$2.12

13

BEARING, LH (17X30X14)

09263-17026

$51.10

14

RETAINER

24742-18A00

$4.35

15

SCREW This part replaces 02112-06103.

02112-0610B

$1.84

16

DRIVESHAFT

24131-35B10

Unavailable

17

GEAR, 1ST DRIVEN (NT:38)

24311-02C01

Unavailable

18

BUSH

24332-24510

$18.67

19

LOCK WASHER

09167-25016

$3.72

20

SNAP RING

09380-25003

$3.04

21

GEAR, 2ND DRIVEN (NT:30)

24321-02C00

Unavailable

22

BUSH

09300-25020

$16.87

23

WASHER

08211-25351

$3.72

24

SNAP RING

09380-25003

$3.04

25

GEAR, 3RD DRIVEN (NT:28)

24331-02C01

Unavailable

26

LOCK WASHER

09169-25001

$2.70

27

LOCK WASHER

09167-25016

$3.72

28

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

29

SNAP RING

09380-25003

$3.04

30

GEAR, 4TH DRIVEN (NT:24)

24341-02C01

Unavailable

31

GEAR, 5TH DRIVEN (NT:19)

24351-18B01

Unavailable

32

GEAR, REVERSE DRIVEN (NT:34)

24571-18A02

Unavailable

33

BUSH,REVERSE DRIVEN GEAR

24333-18A00

Unavailable

34

DOG

24581-18A00

Unavailable

35

WASHER (25.1X40X1.5)

09167-25017

$3.87

36

BEARING, RH (20X42X12)

09262-20059

$25.60

37

BEARING, LH (30X62X16)

09262-30084

$48.78

38

SHAFT, REVERSE IDLER

24551-35B10

Unavailable

39

GEAR, REVERSE IDLER (NT:29)

24561-18A02

Unavailable

40

BUSH, REVERSE IDLER GEAR

09300-20034

Unavailable

41

THRUST WASHER (20X30X1.0)

09181-20195

$2.60

42

RETAINER

24751-35B10

$65.77

43

OIL SEAL (38X52X8)

09283-38017

$15.67

44

O RING (D:2.5,ID:71.9)

09280-70009

$4.64

45

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

46

BOLT (8X20)

09100-08259

$2.23

47

BOLT (8X30)

09100-08260

$2.33

48

WASHER (8.5X18X1)

09160-08043

$1.83

49

SPROCKET, ENGINE (NT:11)

27511-35B00

$20.66

50

O RING (D:2.5,ID:21)

09280-21008

$1.91

51

SPACER (L:25.1)

27531-35B10

$44.07

52

NUT

09140-18008

$6.00

53

LOCK WASHER

09167-22012

$1.54

54

CHAIN, DRIVE (RK520SMO-Z9)

27600-34A40-084

$145.77

55

PLATE, FRONT CHAIN GUIDE

27641-35B00

$5.30
