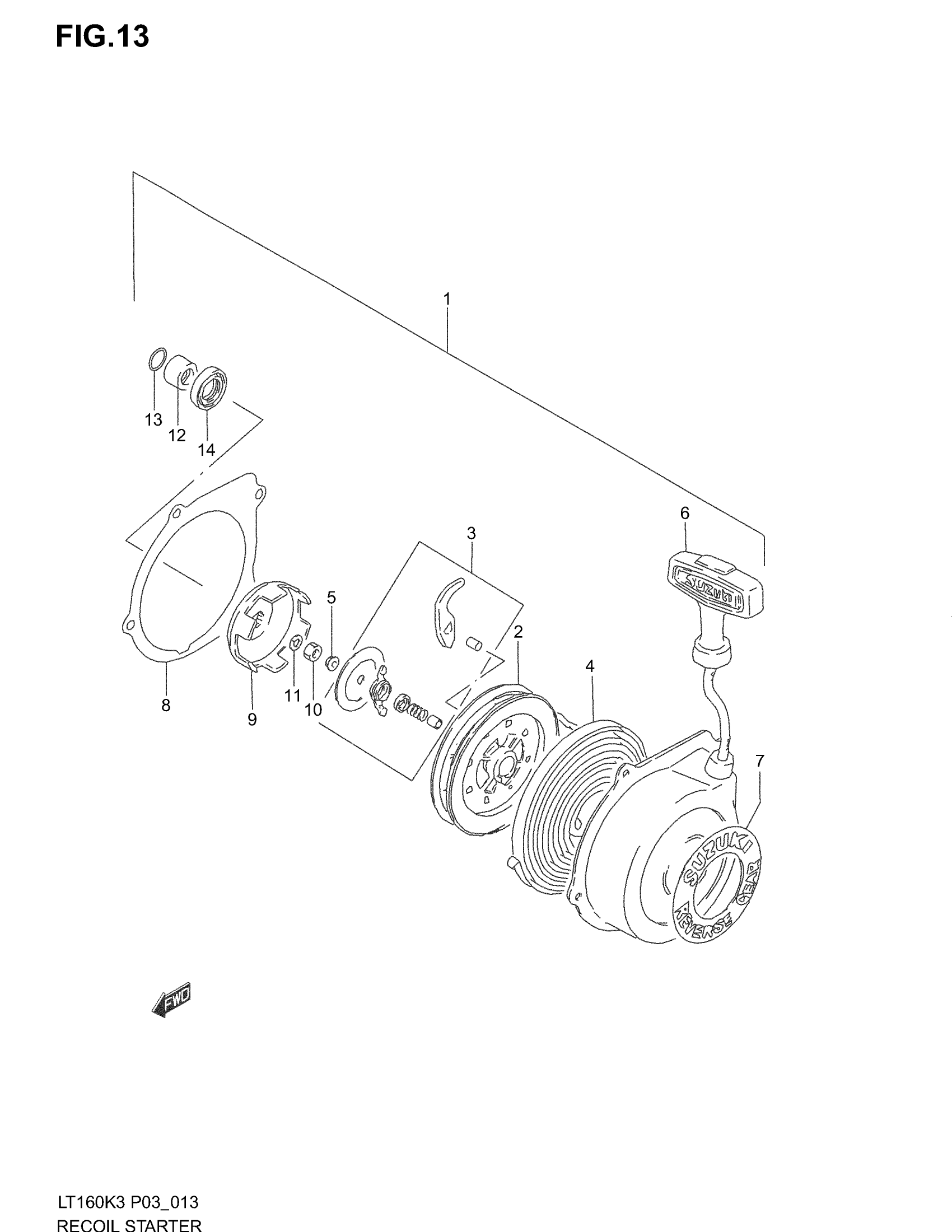

Suzuki LT160 (2004) RECOIL STARTER (OPTIONAL) Diagram

STARTER SET, RECOIL | Includes Item(s) 2 - 14

18000-02820

$178.87

REEL

18120-24400

$35.94

RATCHET SET

18130-24400

$16.96

.SPRING,SPIRAL

18142-24400

$29.60

NUT This part replaces 08316-10063.

08316-1006B

$2.50

ROPE ASSY

18200-24400

$34.27

EMBLEM

68398-24410

$13.81

GASKET, RECOIL STARTER

18299-18A00

$5.32

CUP, STARTER

18411-18A03

Unavailable

NUT This part replaces 08310-00103.

08310-0010A

$1.84

LOCK WASHER This part replaces 08321-01103.

08321-0110A

$1.84

SPACER

12359-18A02

$20.45

O RING (D:1.9,ID:12.6)

09280-12009

$3.18

OIL SEAL (22X35X7)

09289-22008

$22.86
