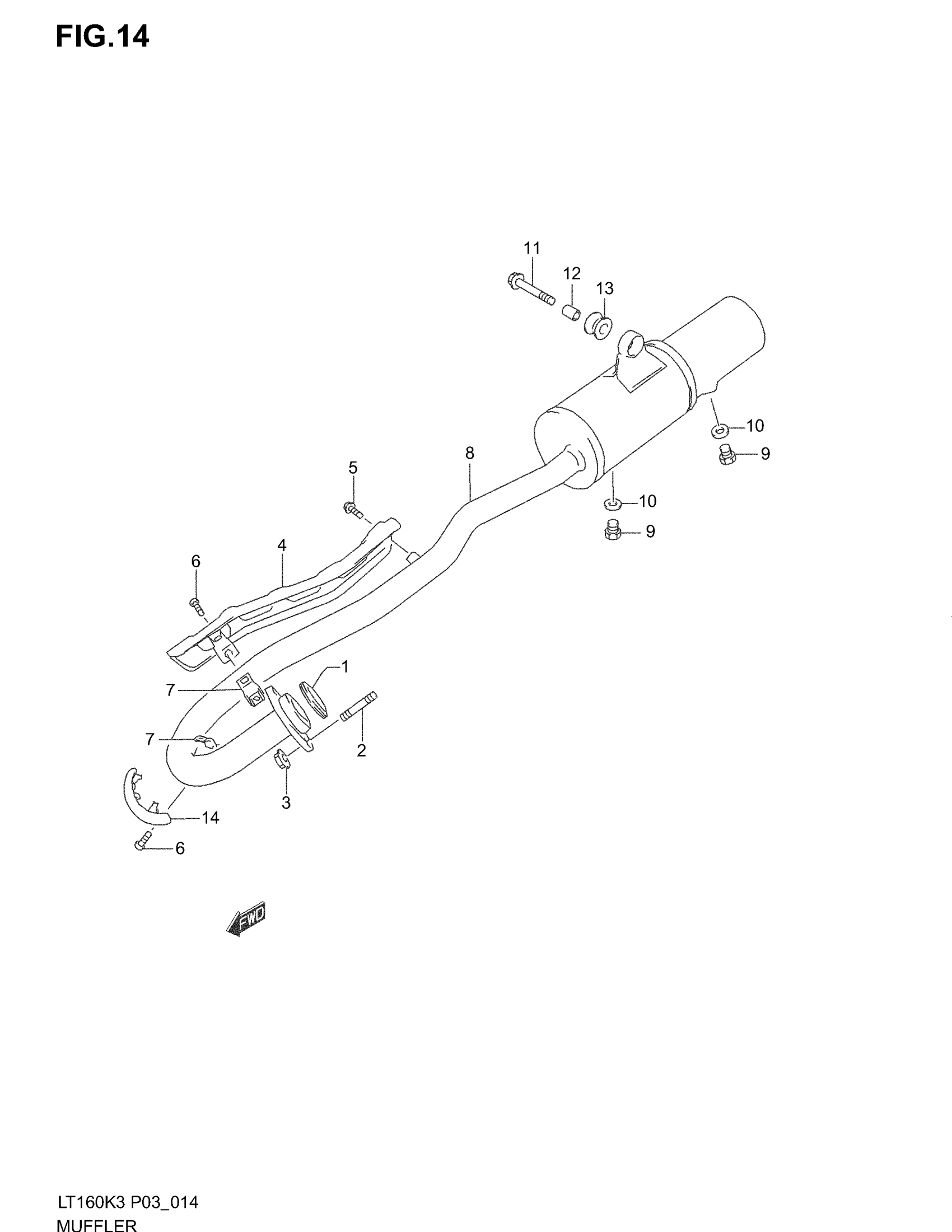

Suzuki LT160 (2004) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST This part replaces 14181-02C01.

14181-18C00

$7.22

2

STUD BOLT (8X22)

09108-08207

$2.53

3

NUT This part replaces 08361-15083.

08361-1508A

$2.02

4

COVER, EXHAUST PIPE

14180-02C00

Unavailable

5

BOLT This part replaces 01580-06103.

01580-0610A

$2.90

6

SCREW This part replaces 02112-06203.

02112-0620A

$1.49

7

CLAMP, EXHAUST PIPE COVER

14190-02C00

$6.38

8

MUFFLER

14310-02C01

$722.21

9

PLUG, DRAIN

09247-12103

$2.84

10

GASKET

09168-12002

$1.59

11

BOLT (8X75)

09112-08010

Unavailable

12

SPACER (8.5X12X18.5)

09180-08195

$3.87

13

CUSHION

09320-12033

$31.71

14

COVER, EXHAUST PIPE FRONT

14170-02C00

Unavailable
