Description

Price

1

CYLINDER HEAD ASSY | Includes Item(s) 2 - 5

11100-02C00

Unavailable

2

.RING (10X85)

09381-10004

$1.50

3

PIN

09206-08001

$1.78

4

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

5

BOLT This part replaces 01550-06603.

01550-0660A

$3.05

6

GUIDE, VALVE (0S:0.3) | OPT

11115-05270

$32.10

7

GASKET, CYLINDER HEAD

11141-02C01

$11.63

8

PIN

04211-11169

$1.78

9

WASHER

09168-06023

$2.35

10

NUT

09159-08049

$4.71

11

NUT This part replaces 08316-10083.

08316-1008B

$2.66

12

WASHER (8.5X19X2.3) This part replaces 09160-08053.

09160-08039

$2.03

13

GASKET (8.5X17X2.3)

09168-08021

$2.61

14

SPARK PLUG (NGK,DPR7EA-9)

09482-00354

$3.32

14

SPARK PLUG (NGK,DPR7EA-9) This part replaces 09482-00355-111.

09482-00354

$3.32

15

CAP INSPECTION This part replaces 11175-18900.

11175-18920

$12.20

16

.O RING (D:3,ID:29.5)

09280-30001

$1.72

17

PLUG, HEAD

09241-22002

$5.24

18

PIPE, INTAKE | P3

13110-02C01

$32.10

18

PIPE, INTAKE | P33

13110-02C10

Unavailable

19

O RING (D:2.3,ID:29.7)

09280-30008

$8.82

20

SCREW This part replaces 02112-36203.

02112-3620A

$2.06

21

CLAMP | P3

09402-42208

$6.88

21

CLAMP | P33

09402-46208

$4.64

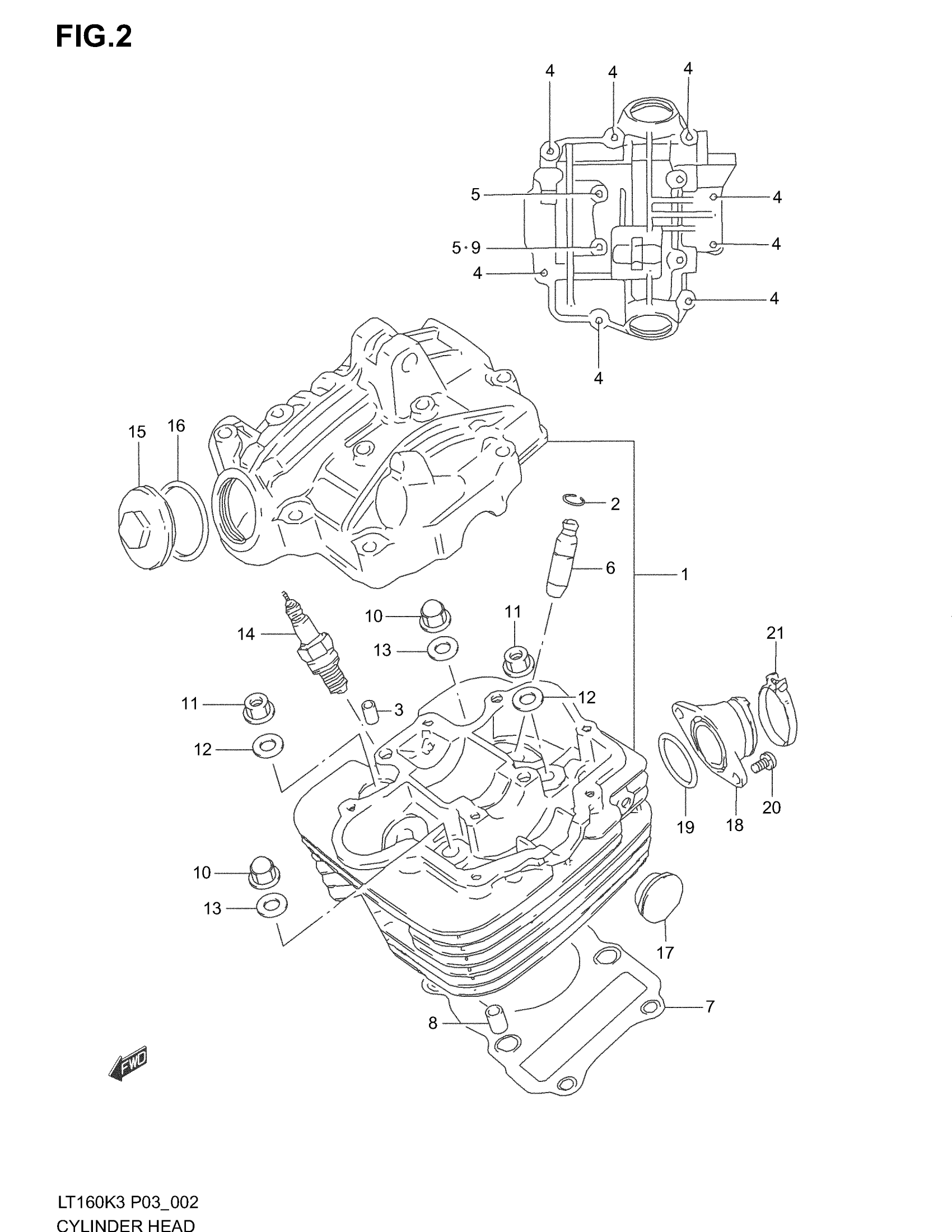

Suzuki LT160 (2004) CYLINDER HEAD Diagram
