Description

Price

1

CHAIN, CAMSHAFT DRIVE (98LE)

12760-44A00

$87.25

2

GUIDE, CAM CHAIN

12771-05200

$43.68

3

TENSIONER, CAM CHAIN This part replaces 12811-05220.

12811-05221

$37.87

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$3.71

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

6

ADJUSTER ASSY,T | Includes Item(s) 7 - 11 This part replaces 12830-32452.

12830-12FB0

$55.43

7

ROD, PUSH

12832-32401

Unavailable

8

SPRING

09440-11018

$3.69

9

SCREW

12838-45001

$8.42

10

.O RING (D:1.9,ID:5.7)

09280-06005

$1.49

11

NUT This part replaces 08316-10083.

08316-1008B

$2.66

12

.GASKET, TENSIONER ADJUSTER

12837-32410

$2.74

13

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

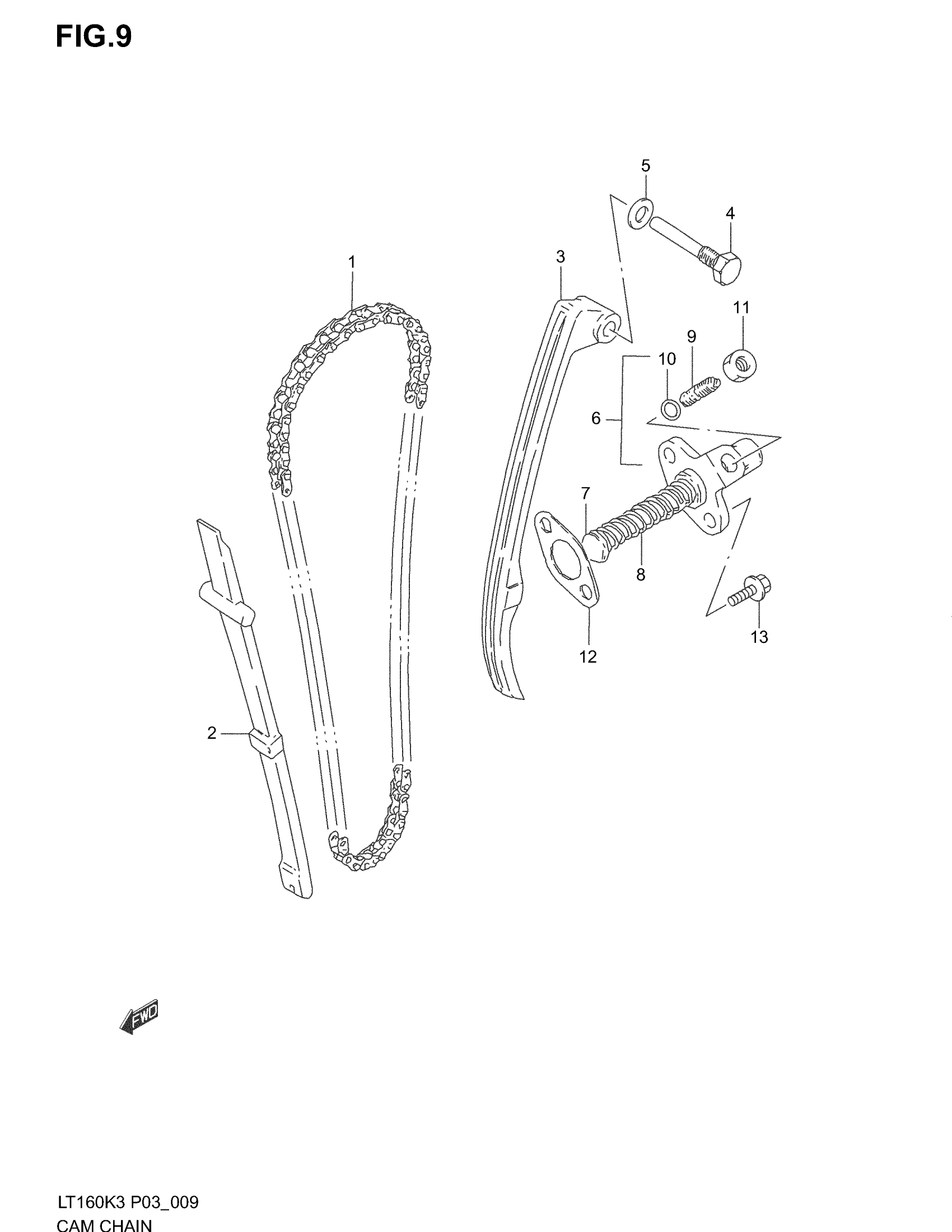

Suzuki LT160 (2004) CAM CHAIN Diagram
