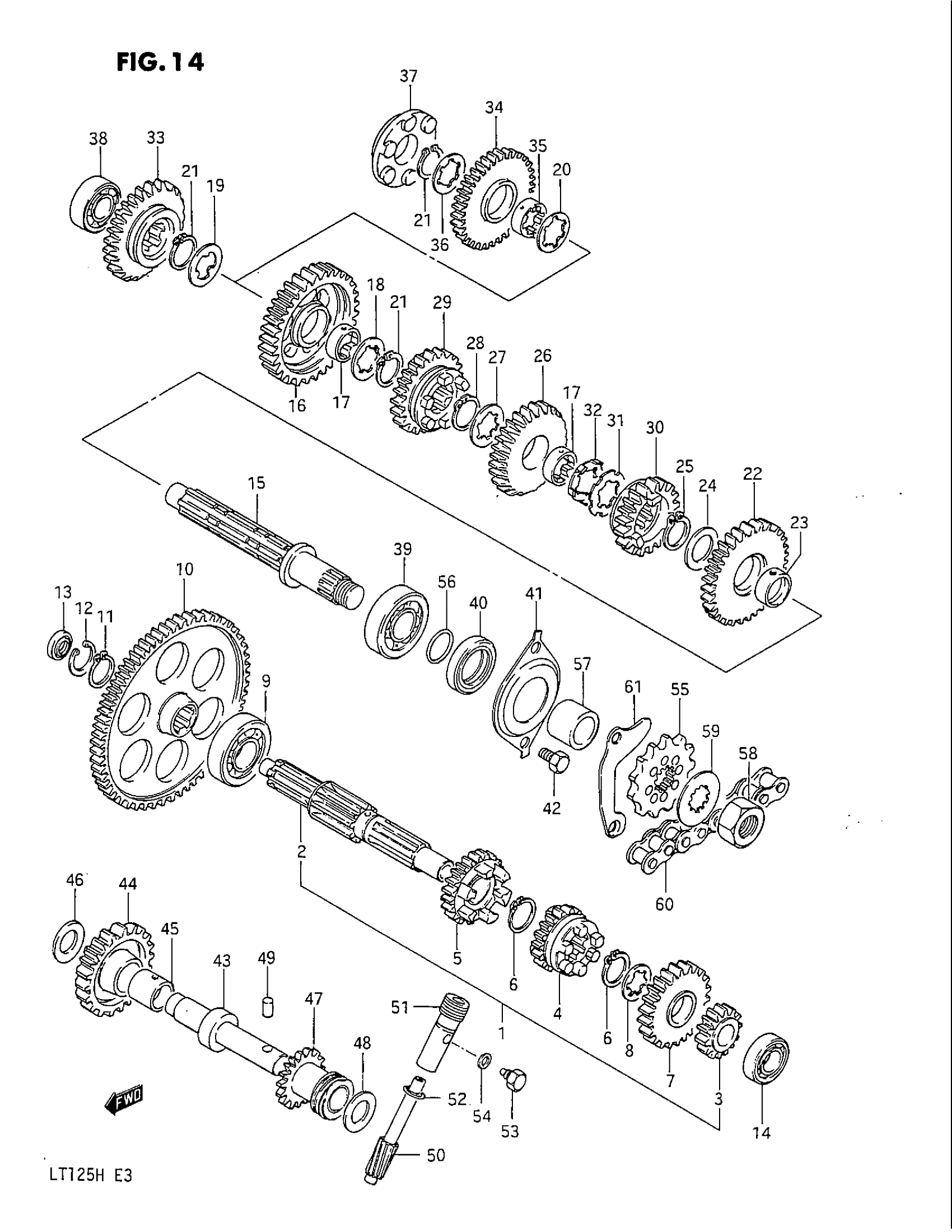

Suzuki LT125 (1987) TRANSMISSION Diagram

#

Description
Price

1

COUNTER SHAFT ASSY | Includes Item(s) 2 - 8

24120-18913

Unavailable

2

COUNTER SHAFT (NT:11)

24100-18841

Unavailable

3

GEAR, 2ND DRIVE (NT:15)

24221-18910

Unavailable

4

GEAR, 3RD DRIVE (NT:20)

24231-18905

Unavailable

5

GEAR, 4TH DRIVE (NT:23)

24240-18901

Unavailable

6

CIRCLIP

09380-20007

$2.43

7

GEAR, 5TH DRIVE (NT:23)

24251-18910

Unavailable

8

WASHER

09167-20011

$2.31

9

BEARING, DRIVE SHAFT LH This part replaces 09262-20087.

09262-20069

$23.28

10

GEAR, PRIMARY DRIVEN (NT:71) | MODEL F This part replaces 21211-24300.

21211-24301

Unavailable

10

GEAR, PRIMARY DRIVEN (NT:71) | MODEL G/H

21211-24301

Unavailable

11

CIRCLIP, KICK START DRIVE GEAR This part replaces 08331-11209.

08331-3120A

$2.03

12

CIRCLIP This part replaces 08331-41209.

08331-41206

Unavailable

13

OIL SEAL (10X20X5)

09282-10005

Unavailable

14

BEARING, LH

08113-60020

$16.01

15

DRIVE SHAFT | MODEL F

24131-18911

Unavailable

15

DRIVE SHAFT | MODEL G/H

24131-24210

Unavailable

16

GEAR, 1ST DRIVEN (NT:39)

24311-18910

Unavailable

17

BUSH

24332-18910

Unavailable

18

LOCK WASHER, LH

09167-20022

Unavailable

19

LOCK WASHER, RH | MODEL F

09167-20016

Unavailable

20

LOCK WASHER, RH | MODEL G/H

09167-20025

Unavailable

21

CIRCLIP

09380-20007

$2.43

22

GEAR, 2ND DRIVEN (NT:35)

24321-18910

Unavailable

23

BUSH

09300-20033

$19.52

24

WASHER

08211-20301

$2.35

25

CIRCLIP

09380-20007

$2.43

26

GEAR, 3RD DRIVEN (NT:30)

24331-18910

Unavailable

27

LOCK WASHER

09167-20022

Unavailable

28

CIRCLIP

09380-20007

$2.43

29

GEAR, 4TH DRIVEN (NT:27)

24341-18902

Unavailable

30

GEAR, 5TH DRIVEN (NT:21)

24351-18904

Unavailable

31

LOCK WASHER

09167-20015

Unavailable

32

LOCK WASHER

09169-20003

Unavailable

33

GEAR, REVERSE DRIVEN (NT:34) | MODEL F

24571-18901

Unavailable

34

GEAR, REVERSE DRIVEN (NT:34) | MODEL G/H

24571-24210

Unavailable

35

BUSH | MODEL G/H

24333-24210

Unavailable

36

WASHER | MODEL G/H

09167-20022

Unavailable

37

DOG, REVERSE | MODEL G/H

24581-24210

Unavailable

38

BEARING, RH

08123-62027

$18.57

39

BEARING, DRIVE SHAFT LH This part replaces 09262-20087.

09262-20069

$23.28

40

OIL SEAL (27X40X6)

09283-27010

$10.30

41

RETAINER

24751-18900

Unavailable

42

BOLT This part replaces 01107-06106.

01500-0610B

$1.81

43

SHAFT, REVERSE IDLER

24550-24400

Unavailable

44

GEAR, REVERSE IDLER (NT:38) | MODEL F

24561-18910

Unavailable

44

GEAR, REVERSE IDLER (NT:30) | MODEL G/H

24561-24210

Unavailable

45

BUSH

09300-17010

Unavailable

46

WASHER, GOVERNOR THRUST This part replaces 08211-15281.

09181-15223

$2.53

47

GEAR, ODOMETER DRIVE | MODEL F This part replaces 26460-24300.

26460-24301

Unavailable

47

GEAR, ODOMETER DRIVE | MODEL G/H

26460-24301

Unavailable

48

SHIM, CAM CHAIN IDLER,T:1.0 This part replaces 08211-15241.

09181-15166

$2.85

49

PIN This part replaces 06211-04103.

04221-04109

Unavailable

50

GEAR, ODOMETER DRIVEN (NT:12)

26471-24200

Unavailable

51

SLEEVE

26481-24200

Unavailable

52

O RING (D:1.3,ID:9.6)

09280-10001

$2.02

53

BOLT (6X10) This part replaces 09135-06002.

09135-06501

$3.04

54

WASHER

09168-06004

$1.49

55

SPROCKET, ENGINE (NT:13)

27511-41701

Unavailable

56

O RING (D:1,ID:19.5)

09280-20001

$1.65

57

SPACER (20X27X19.5)

09180-20081

Unavailable

58

NUT

09140-16017

$6.97

59

LOCK WASHER

09167-20012

$2.44

60

CHAIN, DRIVE (428VX90LE)

27600-18910

Unavailable

61

PLATE

27641-18900

Unavailable
