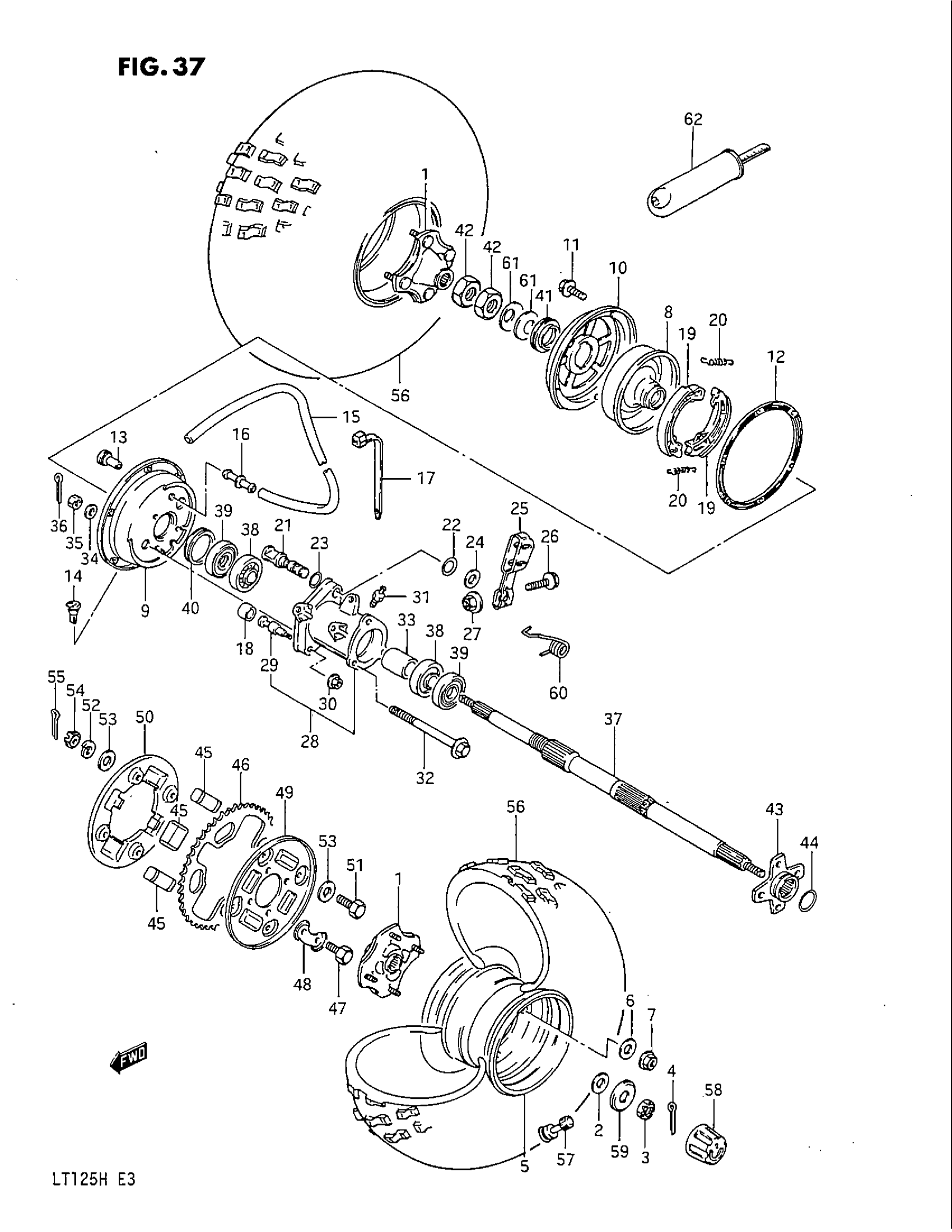

Suzuki LT125 (1987) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR | MODEL F/G This part replaces 64110-24402.

64110-24403

Unavailable

1

HUB, REAR | MODEL H

64110-24403

Unavailable

2

WASHER, HUB

09160-18015

$7.63

3

NUT,RR AXLE This part replaces 09141-18001.

09141-18003

$4.34

4

PIN, COTTER This part replaces 04111-40356.

04111-4040A

$1.49

5

RIM, WHEEL (SILVER) | MODEL F/G This part replaces 65310-24401-19T.

65310-24401-13L

Unavailable

5

RIM, WHEEL (SILVER) | MODEL H

65310-24401-13L

Unavailable

6

WASHER, KNUCKLE END | MODEL F/G This part replaces 08322-11106.

08322-0110A

$1.84

6

WASHER | MODEL H This part replaces 08322-11107.

08322-01107

$2.15

7

NUT | MODEL F/G This part replaces 08316-16106.

08316-1010B

$2.66

7

NUT, WHEEL SET | MODEL H This part replaces 08316-16108.

08316-10107

$2.39

8

DRUM, BRAKE

64120-24401

$278.28

9

COVER, DRUM INNER

64122-24401

Unavailable

10

COVER, DRUM OUTER

64130-24413

Unavailable

11

BOLT, CLAMP This part replaces 01517-06126.

01550-0612A

$1.97

12

PACKING, COVER

64160-24400

$22.22

13

PLUG, BREATHER

09259-12002

Unavailable

14

PLUG, DRAIN

09250-11002

$2.12

15

HOSE, 7X12, 1X2 | L:1130->780 This part replaces 09343-07011.

09352-70121-00B

$32.90

16

JOINT, HOSE

09367-08001

$4.17

17

CLAMP, HOSE

09407-14403

$2.26

18

DUST SEAL, BRAKE ANCHOR PIN

64233-24400

Unavailable

19

SHOE SET, REAR BRAKE This part replaces 54410-40300.

64400-02830

$55.17

20

SPRING

55420-30000

$4.48

21

CAM, REAR BRAKE This part replaces 64440-24401.

64440-24402

$21.05

22

O RING

64443-24300

$2.08

23

O RING

09280-21012

Unavailable

24

WASHER This part replaces 09160-15001.

09160-15048

$2.56

25

LEVER, BRAKE CAM

64451-24302

$34.63

26

BOLT This part replaces 01517-06306.

01550-0630A

$2.32

27

NUT This part replaces 08316-16066.

08316-1006B

$2.50

28

HOUSING, AXLE | Includes Item(s) 29 - 30

64720-24402

Unavailable

29

PIN

64231-24400

Unavailable

30

NUT

08319-31107

$2.73

31

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68

32

BOLT, HOUSING

64716-24301

Unavailable

33

SPACER

64731-24200

$34.63

34

WASHER This part replaces 08322-11088.

08322-01087

$2.13

35

NUT

08314-31088

Unavailable

36

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

37

AXLE, REAR

64711-24303

Unavailable

38

BEARING (35X62X14) | MODEL F/G This part replaces 08123-60077.

09262-35032

$60.15

38

BEARING, AXLE | MODEL H

09262-35032

$60.15

39

DUST SEAL

09283-42011

$12.61

40

DUST SEAL, INNER

64729-24400

Unavailable

41

DUST SEAL This part replaces 64729-24411.

64729-24300

Unavailable

42

NUT

09140-32001

Unavailable

43

FLANGE, SPROCKET MOUNTING

64611-24302

Unavailable

44

RING

09380-31001

Unavailable

45

SHOCK ABSORBER This part replaces 64650-24201.

64650-24400

Unavailable

46

SPROCKET, REAR (NT:49)

64511-24201

Unavailable

47

BOLT

09100-10196

Unavailable

48

WASHER

09169-10017

Unavailable

49

PLATE, SPROCKET

64512-24300

Unavailable

50

PLATE, SPROCKET

64513-24300

Unavailable

51

BOLT

09101-06007

Unavailable

52

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

53

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

54

NUT

09141-06001

Unavailable

55

.COTTER PIN This part replaces 04111-20156.

04111-2015A

$1.49

56

TIRE, T/L (22X11.00-8) | DUNLOP

55100-24256

Unavailable

56

TIRE, T/L REAR (22X11.00-8) | BS This part replaces 65100-18920.

65100-18A35

Unavailable

57

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

58

CAP | MODEL F This part replaces 54725-24500.

54725-18A00

$10.28

58

CAP, CENTER | MODEL G/H

54725-18A00

$10.28

59

HOLDER, CENTER CAP | MODEL F This part replaces 64726-24500.

64726-19B00

$3.31

59

HOLDER, CENTER CAP | MODEL G/H This part replaces 64726-18A00.

64726-19B00

$3.31

60

SPRING

09448-17017

Unavailable

61

WASHER

09164-32004

Unavailable

62

GAUGE ASSY,AIR PRESSUR | MODEL G/H This part replaces 96200-18A00.

96200-18A02

$58.92
