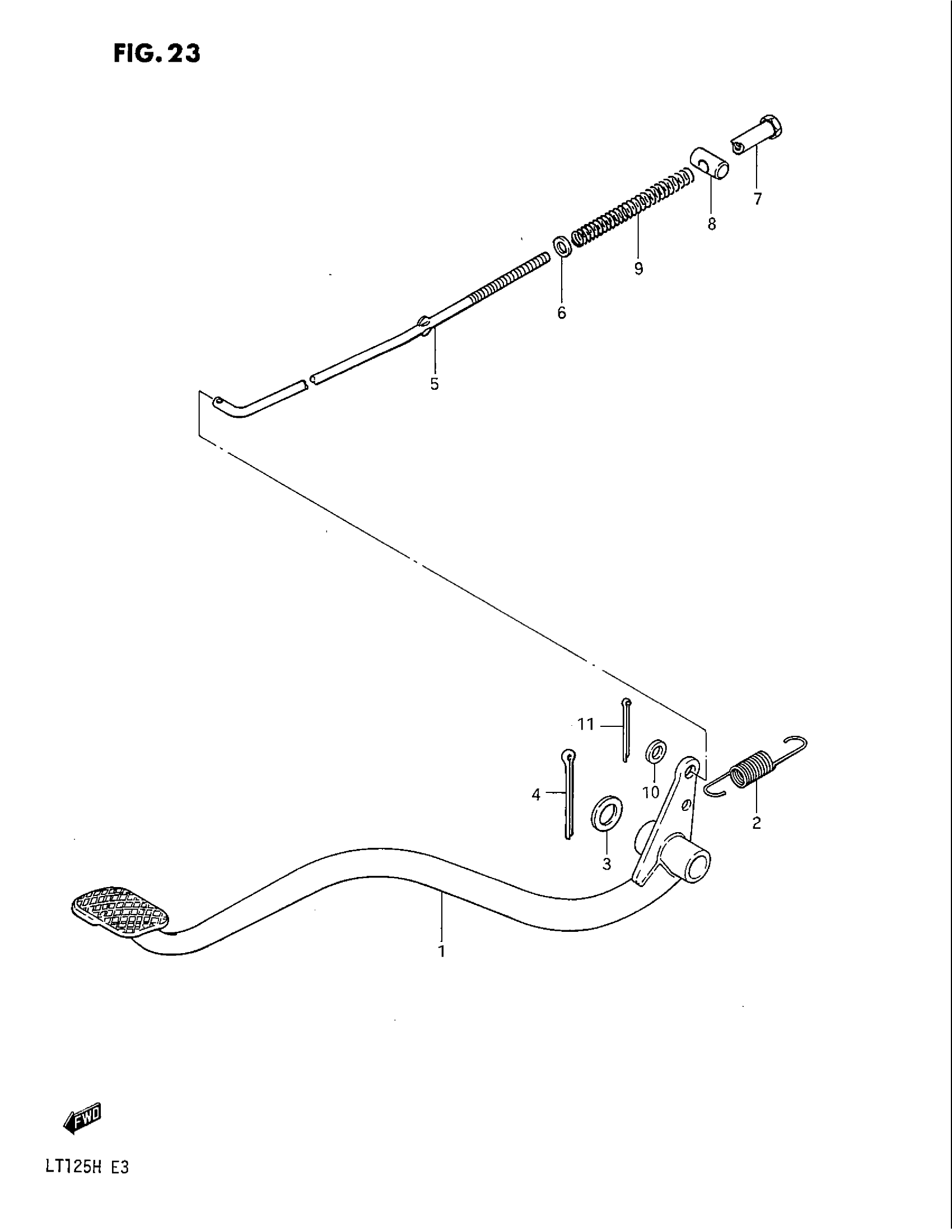

Suzuki LT125 (1987) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-24300

Unavailable

2

SPRING This part replaces 09443-14020.

09443-14015

$2.89

3

WASHER

09160-15002

$1.91

4

PIN This part replaces 04111-30308.

04111-3030A

$1.49

5

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 43300-24300.

43300-24X51

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL G/H; Includes Item(s) 6 - 11 This part replaces 43300-24302.

43300-24X51

Unavailable

6

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

7

NUT | MODEL F This part replaces 09150-06008.

09150-06012

$3.37

7

NUT | MODEL G/H

09150-06012

$3.37

8

PIN

09209-13006

$5.24

9

.SPRING This part replaces 09440-09013.

09440-09004

$2.20

10

WASHER, FRONT This part replaces 08322-21056.

08322-0105A

$1.84

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
