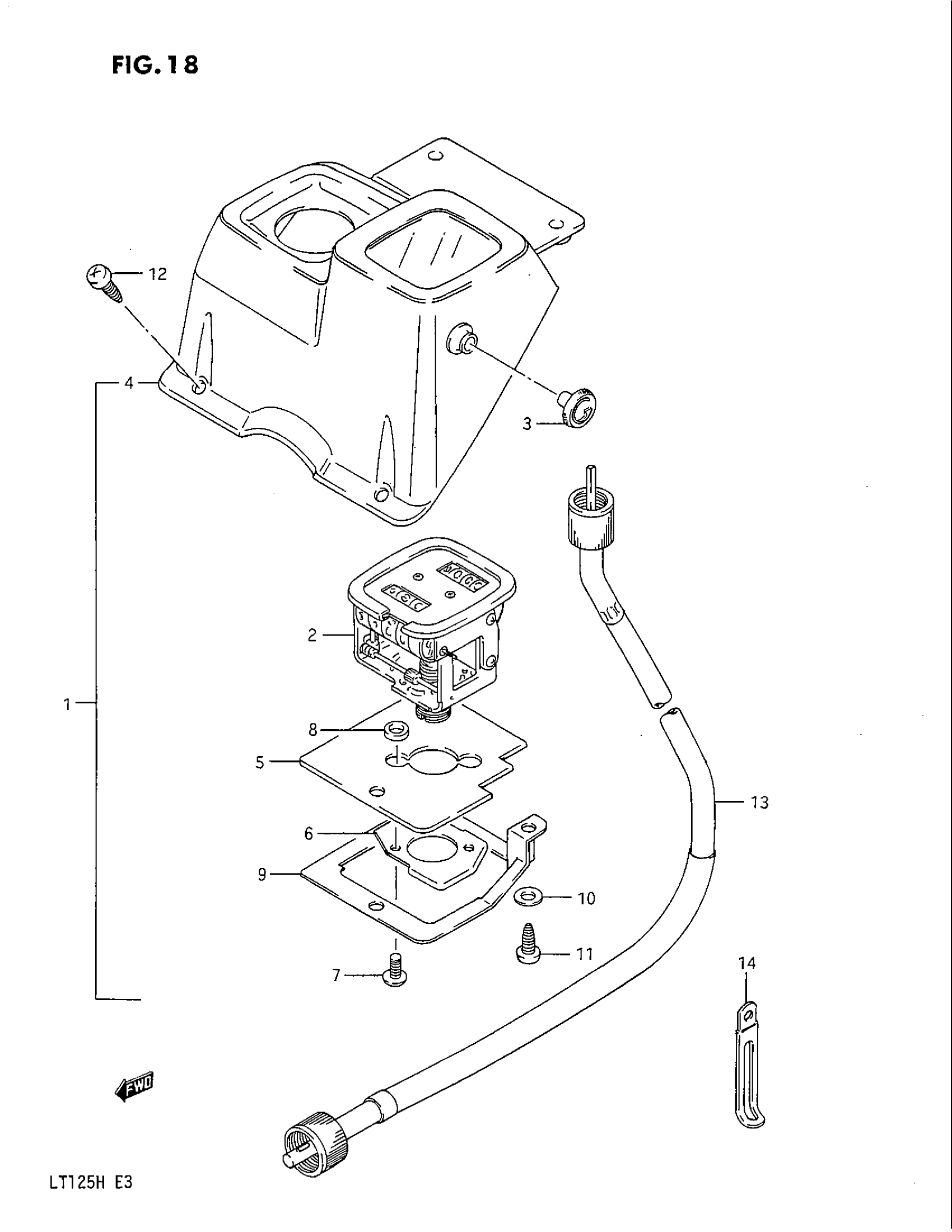

Suzuki LT125 (1987) ODOMETER Diagram

#

Description
Price

1

ODOMETER ASSY (MILE) | MODEL F/G

34720-18901

Unavailable

1

ODOMETER ASSY (MILE) | MODEL H; Includes Item(s) 2 - 11

34720-24230

Unavailable

2

ODOMETER

34721-24510

Unavailable

3

KNOB, TRIP

34124-24420

Unavailable

4

HOOD, METER | MODEL F/G This part replaces 34722-18900.

34722-24230

Unavailable

4

HOOD, METER | MODEL H

34722-24230

Unavailable

5

CUSHION

34726-18900

Unavailable

6

PLATE, METER

34724-18900

Unavailable

7

SCREW This part replaces 02112-03086.

02112-0308A

$1.80

8

SPACER

34187-24500

Unavailable

9

PLATE, METER CASE

34723-18900

Unavailable

10

WASHER This part replaces 08322-21046.

08322-0104A

$1.91

11

SCREW This part replaces 03211-04126.

03211-0412A

$2.23

12

SCREW This part replaces 02142-04165.

02142-0416A

$2.27

13

CABLE ASSY, ODOMETER

34910-18912

Unavailable

14

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.74
