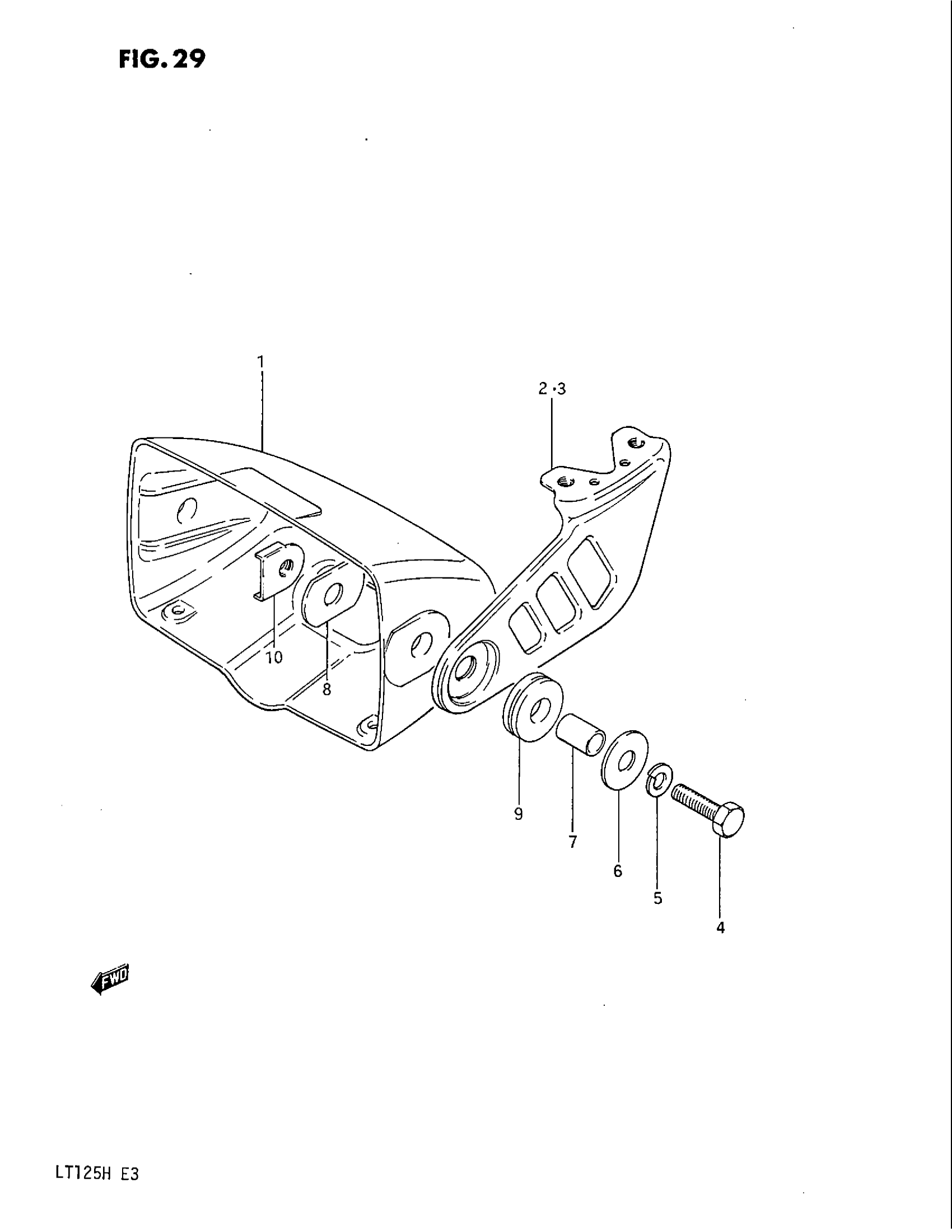

Suzuki LT125 (1987) HEADLAMP HOUSING Diagram

#

Description
Price

1

HOUSING, HEADLAMP | BLACK

51811-17202-291

Unavailable

2

NO DESCRIPTION AVAILABLE | BLACK This part replaces 51530-18901-291.

51500-18880-291

Unavailable

3

BRACKET, HEAD LAMP, LH | BLACK

51540-18901-291

Unavailable

4

BOLT | MODEL F This part replaces 01107-08308.

01500-08307

$3.04

4

BOLT | MODEL G/H This part replaces 01107-08304.

01500-0830B

$3.16

5

.LOCK WASHER | MODEL F This part replaces 08321-21088.

08321-01087

$2.13

5

LOCK WASHER | MODEL G/H This part replaces 08321-21084.

08321-0108A

$1.84

6

WASHER 6.5x26x1.2 | MODEL F This part replaces 09160-08068.

09160-08032

$2.30

6

WASHER 6.5x26x1.2 | MODEL G/H This part replaces 09160-08064.

09160-08032

$2.30

7

SPACER,8.8X12X1 This part replaces 09180-08036.

09180-08036-XC0

Unavailable

8

CUSHION This part replaces 09329-12002.

09329-12005

$2.32

9

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

10

PLATE

51860-46400

Unavailable
