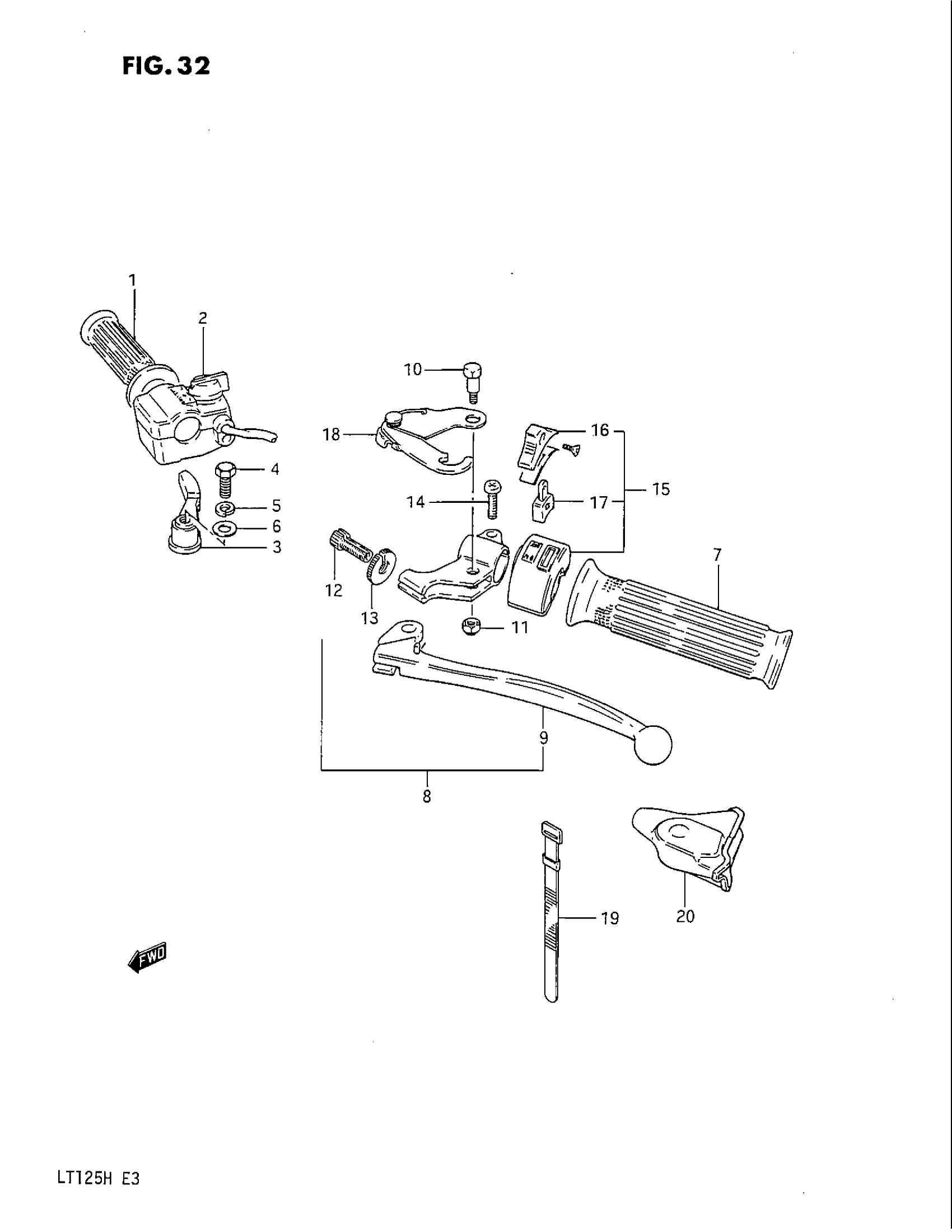

Find the part on the Handle Switch diagram for your 1987 Suzuki LT125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki LT125 Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP

57211-24201

1
Out of stock

2

THROTTLE CASE ASSY | Includes Item(s) 3 - 6

57100-24312

1
Out of stock

3

LEVER

57151-24301

1

$13.28

In stock

4

1

$1.90

In stock

5

1

$1.97

In stock

6

WASHER

09160-06019

1

$1.49

In stock

7

GRIP

57211-24201

1
Out of stock

8

LEVER ASSY, REAR BRAKE | Includes Item(s) 9 - 14

57500-24200

1
Out of stock

9

LEVER,BRAKE This part replaces 57620-24200.

57620-29500

1
Out of stock

10

1

$8.65

In stock

11

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

12

ADJUSTER, CABLE

57441-11010

1

$5.60

In stock

13

NUT, CABLE ADJUSTER

57442-11010

1

$2.92

In stock

14

1

$1.55

In stock

15

SWITCH ASSY, LIGHTING | Includes Item(s) 16 - 17

37250-38200

1
Out of stock

16

KNOB

57617-28602

1
Out of stock

17

BLOCK, SLIDING

57680-28602

1
Out of stock

18

STOPPER, BRAKE LEVER

57790-18900

1
Out of stock

19

BAND

09407-12402

2
Out of stock

20

1

$11.55

In stock
