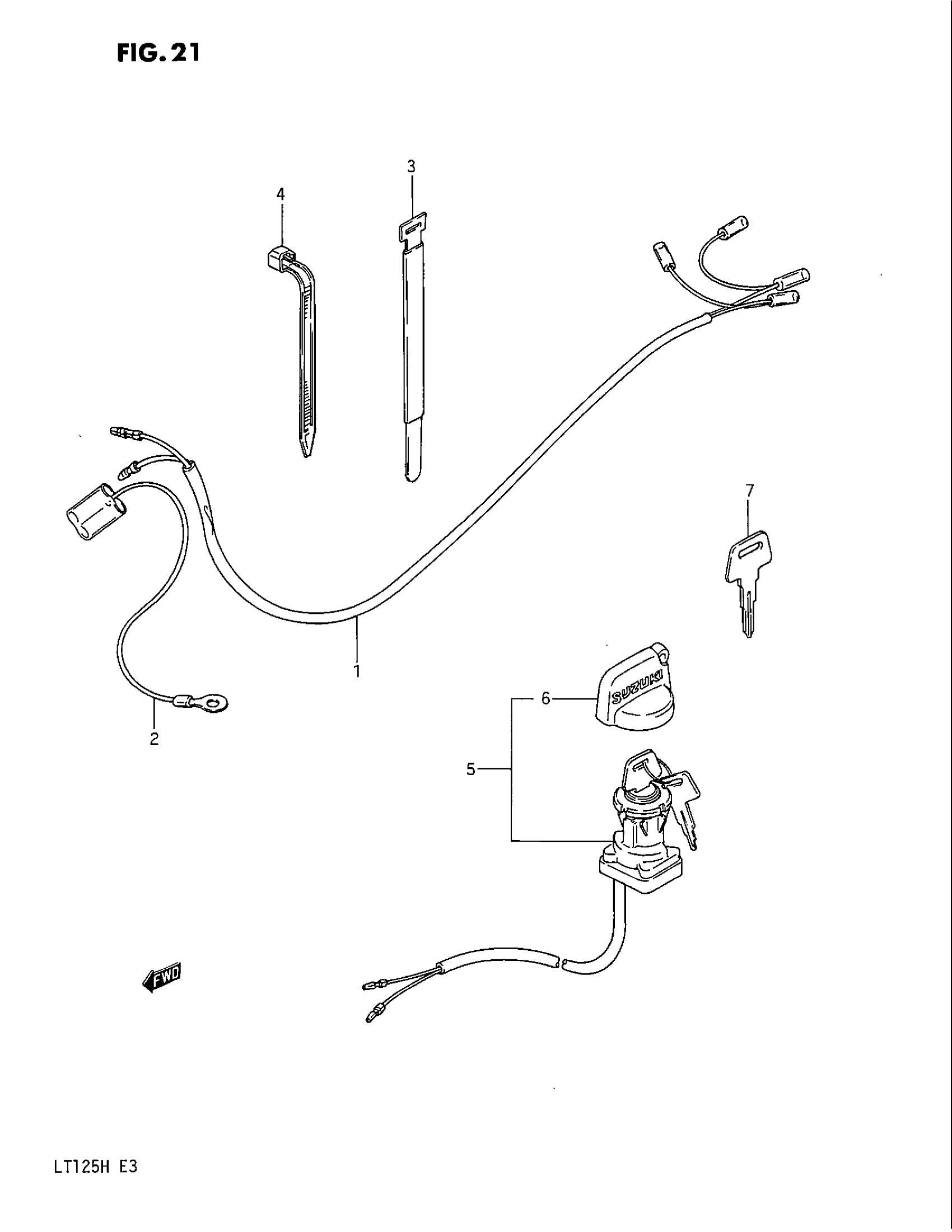

Suzuki LT125 (1987) WIRING HARNESS Diagram

#

Description

Price

1

LEAD WIRE, TAIL LAMP This part replaces 36852-18900.

36852-22A01

Unavailable

2

LEAD WIRE, EARTH

36851-24200

Unavailable

3

CLAMP This part replaces 09407-18301.

09407-18302

$2.27

4

CLAMP (L:95)

09407-11401

$2.87

4

CLAMP (L:125)

09407-14403

$2.24

4

CLAMP (L:165)

09407-18402

$2.21

5

SWITCH ASSY,IGN | MODEL H This part replaces 37110-24200.

37110-24202

Unavailable

6

.MASCOT,KEY | MODEL H This part replaces 37142-19B00.

37142-19B01

$4.56

7

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.38

7

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.38
