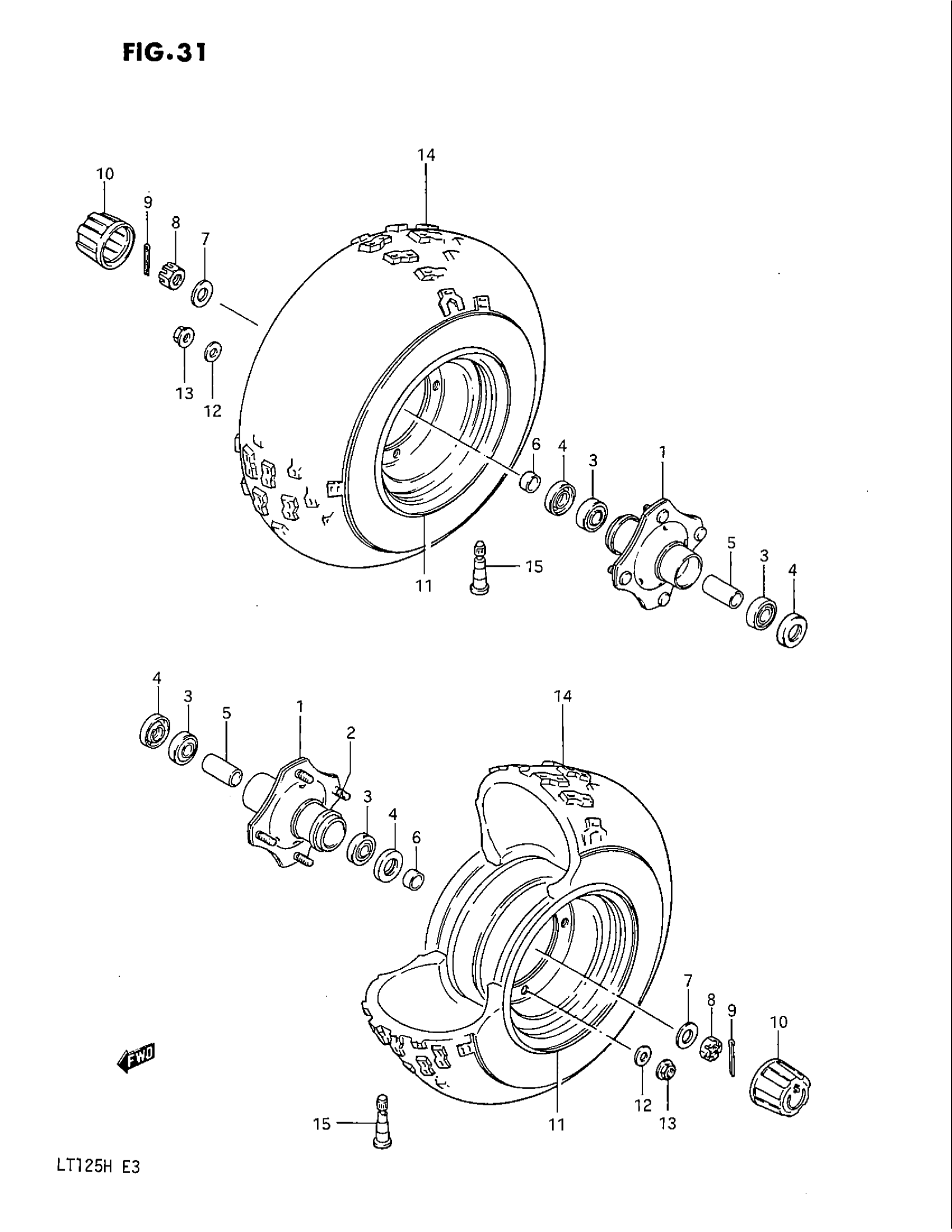

Suzuki LT125 (1987) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT | MODEL F This part replaces 54110-24402.

54110-24403

Unavailable

1

HUB, FRONT | MODEL G/H; Includes Item(s) 2

54110-24403

Unavailable

2

BOLT | MODEL G/H

09119-10048

$3.72

3

BEARING

08120-62037

$21.05

4

DUST SEAL

09284-22002

$13.87

5

SPACER, FRONT HUB

54731-18900

Unavailable

6

SPACER, FRONT AXLE This part replaces 54741-18900.

54741-189A0

$6.64

7

WASHER This part replaces 08322-11166.

08322-0116A

$1.84

8

NUT, HUB This part replaces 08314-41166.

08314-4016A

$3.79

9

PIN, REAR AXLE This part replaces 04111-40306.

04111-4030A

$1.49

10

CAP | MODEL F This part replaces 54725-24500.

54725-18A00

$10.28

10

CAP, WHEEL CENTER | MODEL G/H

54725-18A00

$10.28

11

RIM, FRONT WHEEL (SILVER) | MODEL F/G This part replaces 55310-24401-19T.

55310-24401-13L

Unavailable

11

RIM, FRONT WHEEL (SILVER) | MODEL H

55310-24401-13L

Unavailable

12

WASHER This part replaces 08322-11107.

08322-01107

$2.15

13

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

14

TIRE, T/L (20X7.00-8) | DUNLOP

55100-18956

Unavailable

14

TIRE, T/L (20X7.00-8) | BS This part replaces 55100-18920.

55100-18956

Unavailable

15

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25
