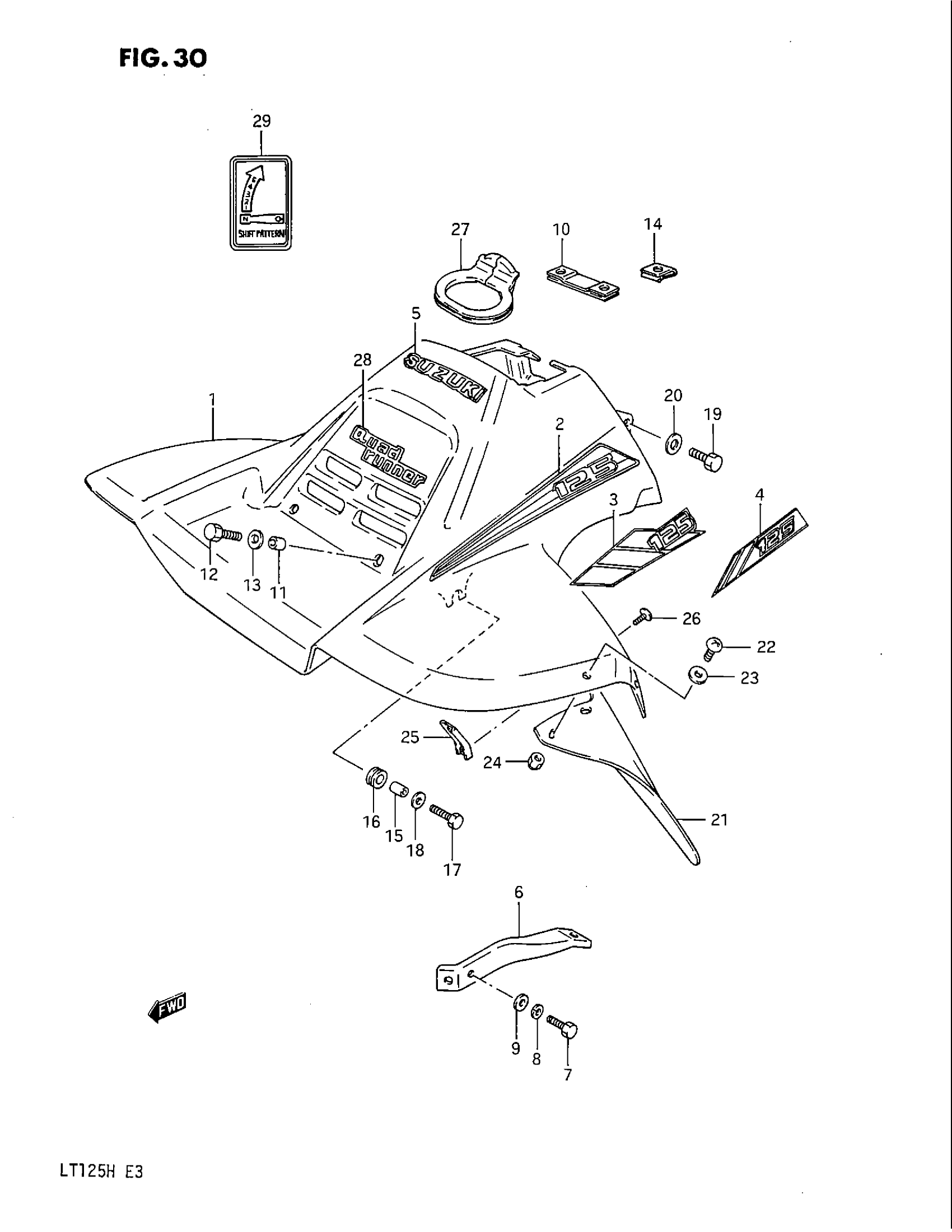

Suzuki LT125 (1987) FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT (ORANGE) | MODEL F This part replaces 53111-18900-00N.

53111-18900-25G

Unavailable

1

FENDER, FRONT (ORANGE) | MODEL G/H

53111-18900-25G

Unavailable

2

TAPE SET | MODEL F

68150-18920-96W

Unavailable

3

TAPE SET | MODEL G

68150-18930-7ZG

Unavailable

4

TAPE SET | MODEL H

68150-18940-31W

Unavailable

5

EMBLEM

68151-18900-92R

Unavailable

6

BRACKET, FRONT FENDER, RH

53213-18901

Unavailable

6

BRACKET, FRONT FENDER, LH

53243-18901

Unavailable

7

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

8

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

9

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

10

PLATE

53280-18900

Unavailable

11

SPACER, REAR This part replaces 09180-08110.

09180-08184

$3.16

12

BOLT

01204-08207

$2.30

13

WASHER (8.5X20X1.6) This part replaces 09160-08072.

09160-08054

$1.49

14

NUT

09148-04015

$2.36

15

SPACER, CENTER

09180-06001

$2.30

16

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

17

BOLT This part replaces 01107-06207.

01500-06207

$2.28

18

WASHER This part replaces 09160-06007.

09160-06084

$1.78

19

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

20

WASHER This part replaces 09160-06007.

09160-06084

$1.78

21

MUDFLAP

53311-18900

Unavailable

22

SCREW

02142-06207

$1.49

23

WASHER This part replaces 09160-06006.

09160-06084

$1.78

24

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

25

PLATE, MUD FLAP

53420-18902

Unavailable

26

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

27

GROMMET, CABLE

58627-18901

Unavailable

28

EMBLEM, FENDER NAME (ORANGE) | MODEL F This part replaces 68233-18920-7HF.

68233-24500-20R

Unavailable

28

EMBLEM, FENDER NAME | MODEL G/H

68233-18930-73J

Unavailable

29

LABEL | MODEL G/H

68392-24210

$2.92
