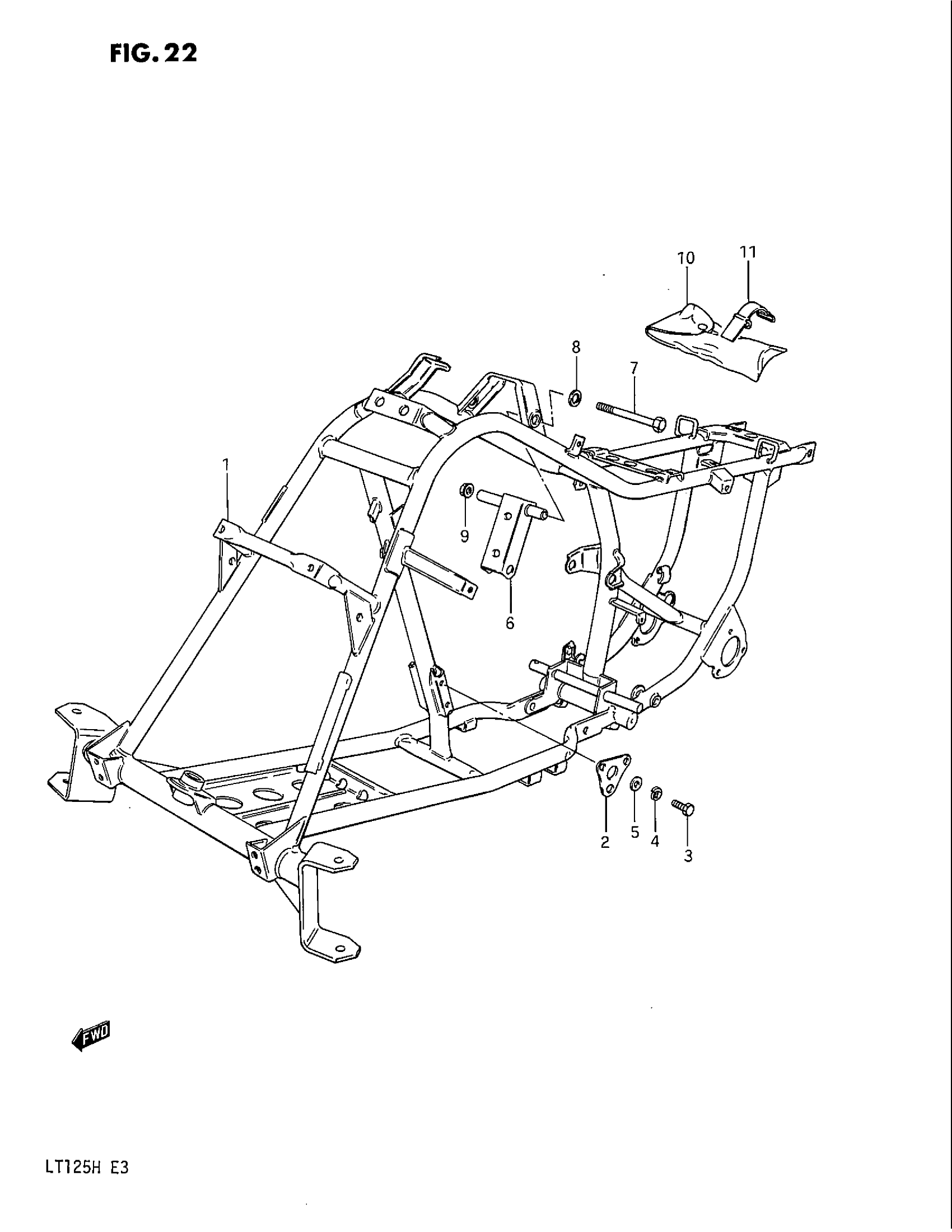

Suzuki LT125 (1987) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) | MODEL F/G

41100-18950-019

Unavailable

1

FRAME (BLACK) | MODEL H

41100-18920-019

Unavailable

2

PLATE, MOUNTING FRONT

41911-18900

Unavailable

3

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

4

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

5

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

6

PLATE, MOUNTING UPPER

41930-18900

Unavailable

7

BOLT 10X125 This part replaces 09100-10051.

09100-10274

$7.15

8

WASHER This part replaces 08322-11107.

08322-01107

$2.15

9

NUT This part replaces 08319-31105.

08319-3110A

$2.73

10

TOOL ASSY This part replaces 09800-00236.

09800-21075

$44.50

11

BAND This part replaces 09462-00072.

09462-00094

$3.16
