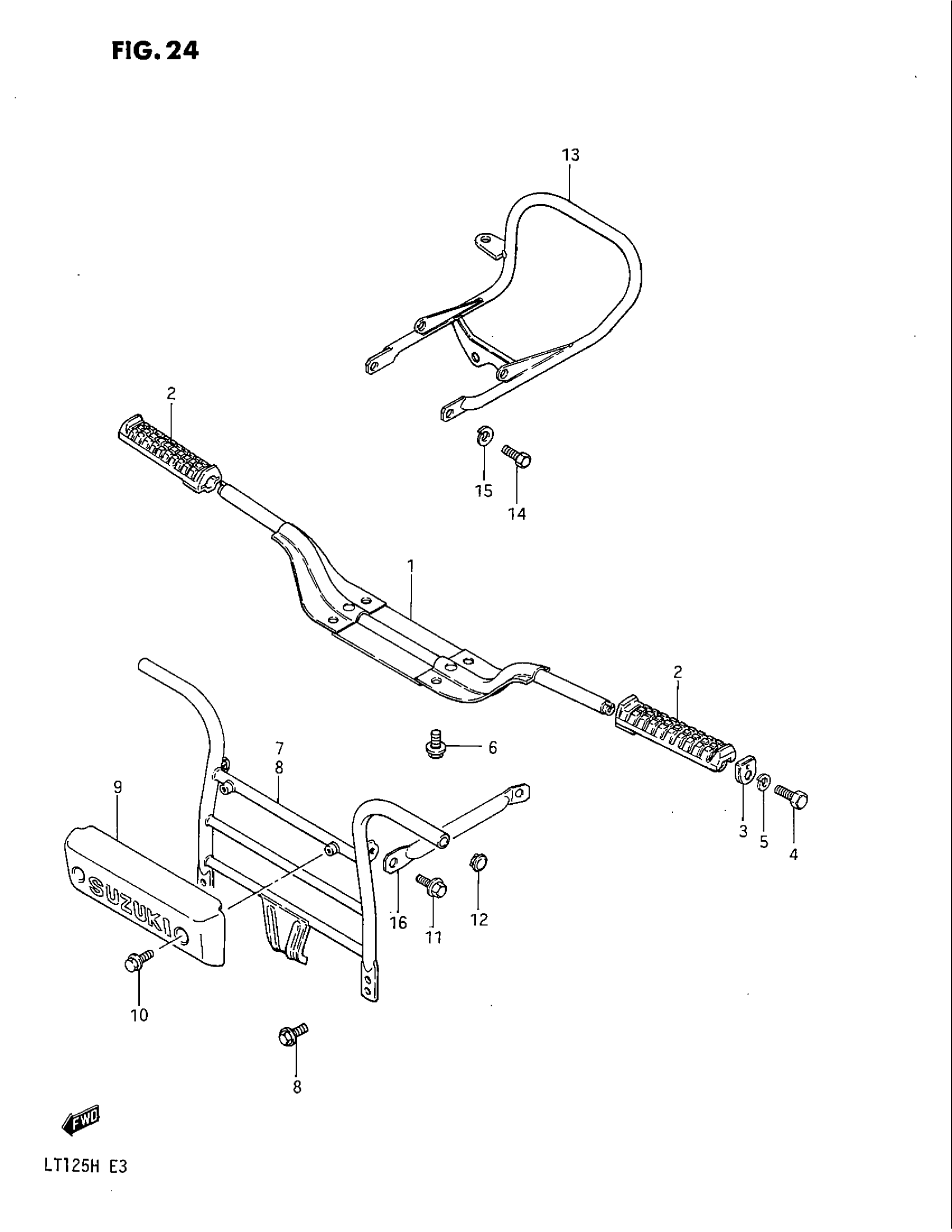

Suzuki LT125 (1987) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST

43510-24400

Unavailable

2

RUBBER

43551-24400

Unavailable

3

STOPPER

43553-18900

Unavailable

4

BOLT This part replaces 01107-08125.

01500-0812A

$2.28

5

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

6

BOLT (8X12) This part replaces 01517-08126.

01550-0812A

$2.32

7

GRIP, FRONT | MODEL F This part replaces 43990-18900.

43990-18910

Unavailable

8

GRIP, FRONT | MODEL G/H

43990-18910

Unavailable

9

RUBBER, FRONT GRIP | MODEL G/H

43976-18A00

Unavailable

10

BOLT | MODEL G/H This part replaces 01517-05125.

01550-0512B

$2.87

11

BOLT (8X16) This part replaces 01517-08165.

01550-0816A

$2.32

12

CAP

43978-18900

Unavailable

13

GRIP, REAR This part replaces 43980-18910.

43980-24410

Unavailable

14

BOLT, REAR This part replaces 01107-08207.

01500-08207

$2.53

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

TUBE, FRONT GRIP SUPPORT

43971-18900

Unavailable
