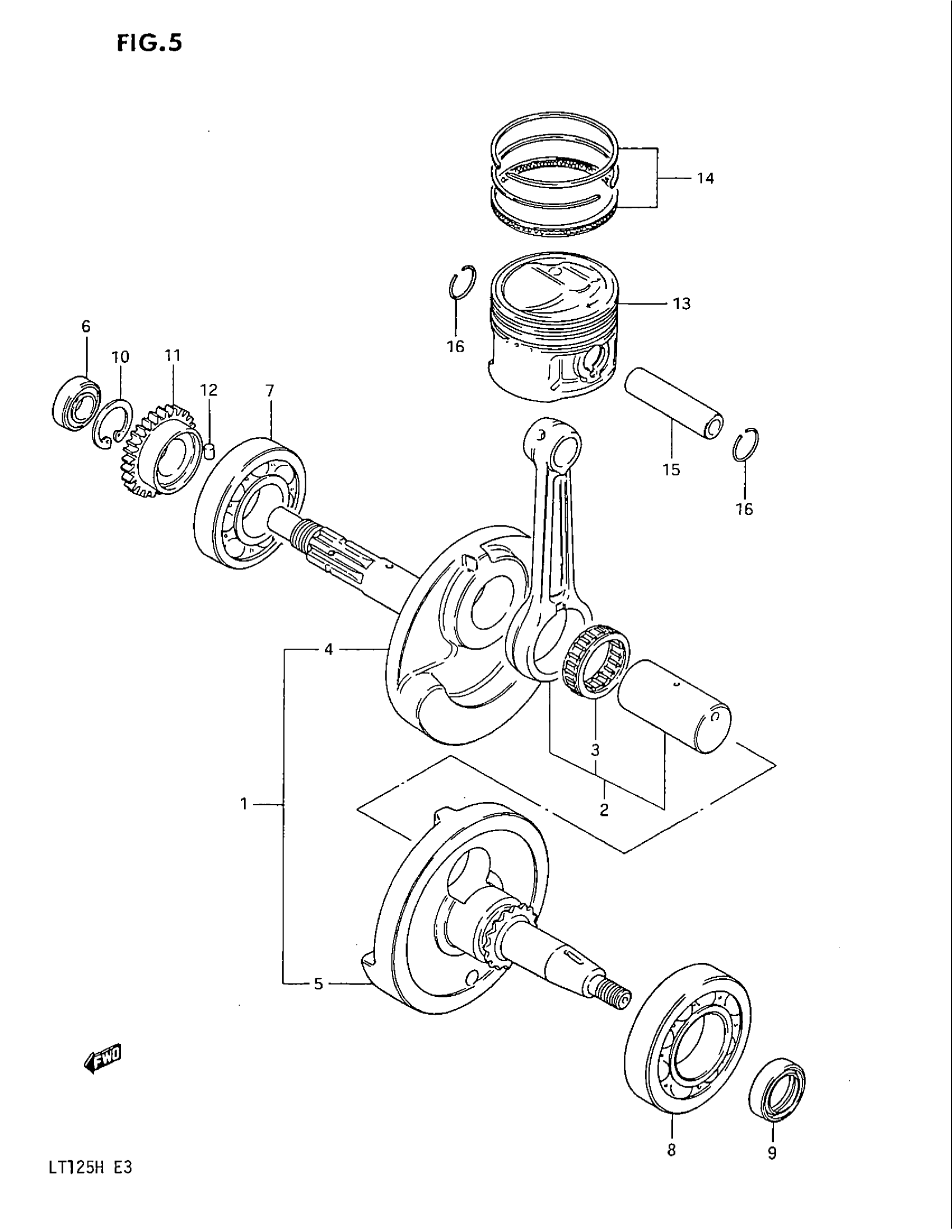

Suzuki LT125 (1987) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 5

12200-18905

Unavailable

2

ROD SET, CONNECTING This part replaces 12200-05851.

12105-05821

$175.98

3

BEARING (28X36X15.8) This part replaces 09263-28022-0B0.

09263-28027-0B0

Unavailable

4

CRANKSHAFT, RH

12221-18903

Unavailable

5

CRANKSHAFT, LH

12261-18901

Unavailable

6

BEARING, RH

09262-12004

Unavailable

7

B1 28X58X16 BEA This part replaces 09262-28013.

09262-28019

Unavailable

8

BEARING (35X72X17) This part replaces 09262-35034.

09262-35038

$46.10

9

OIL SEAL, LH

09283-20037

$6.97

10

CIRCLIP This part replaces 08331-21289.

08331-41289

$2.68

11

GEAR, OIL PUMP DRIVE

16321-18902

Unavailable

12

PIN This part replaces 06211-03052.

04221-03059

$1.72

13

PISTON

12111-01420

Unavailable

13

PISTON SET,OS 0 | OPT This part replaces 12111-01420-050.

12103-01870-050

Unavailable

13

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-01420-100.

12103-01870-100

Unavailable

14

RING SET, PISTON This part replaces 12140-05211.

12140-01410

$36.08

14

RING SET, PISTON (OS:0.5) | OPT This part replaces 12140-05211-050.

12140-01410-050

$44.10

14

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-05211-100.

12140-01410-100

Unavailable

15

PIN, PISTON

12151-18902

$13.67

16

RING

09381-14001

$1.49
