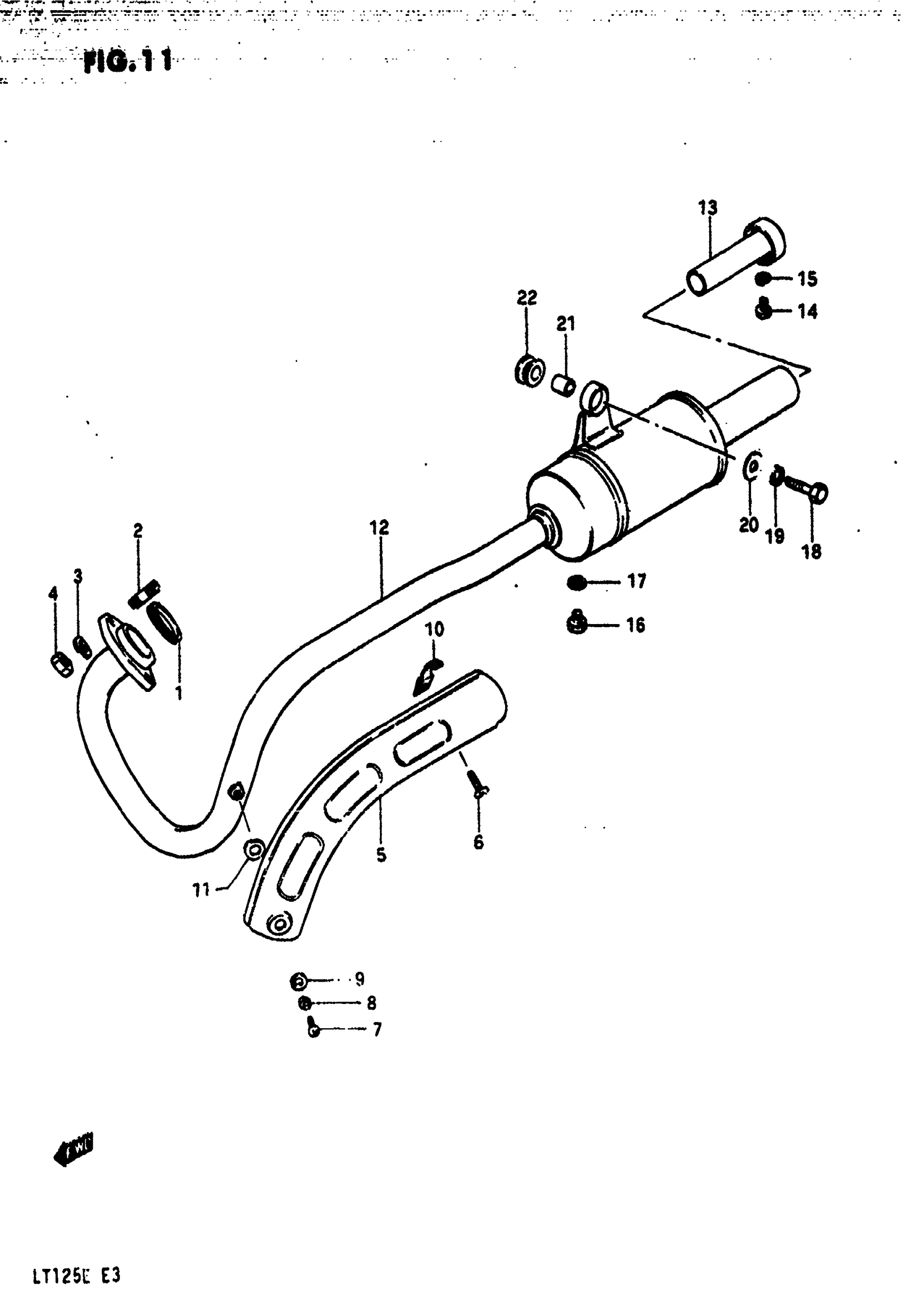

Suzuki LT125 (1984) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

$6.91

2

STUD BOLT | MODEL D This part replaces 01421-06205.

01421-0620A

$1.97

2

STUD BOLT | MODEL E This part replaces 01421-08205.

01421-0820A

$1.99

3

LOCK WASHER | MODEL D This part replaces 08321-21065.

08321-0106A

$1.89

3

LOCK WASHER | MODEL E This part replaces 08321-21085.

08321-0108A

$1.91

4

NUT | MODEL D This part replaces 08310-11065.

08310-0006A

$1.89

4

NUT | MODEL E This part replaces 08310-11085.

08310-0008A

$1.94

5

COVER This part replaces 14180-18900.

14180-18910

Unavailable

6

SCREW This part replaces 02112-05205.

02112-0520B

$1.94

7

SCREW This part replaces 02112-06125.

02112-0612A

$1.46

8

LOCK WASHER This part replaces 08321-21065.

08321-0106A

$1.89

9

.WASHER This part replaces 08322-21064.

08322-0106B

$2.31

10

CLAMP

14185-05200

Unavailable

11

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.21

12

MUFFLER ASSY | MODEL D This part replaces 14301-18900.

14301-18904-H01

Unavailable

12

MUFFLER ASSY | MODEL E; Includes Item(s) 13 - 17 This part replaces 14301-18902-H01.

14301-18904-H01

Unavailable

13

TUBE, CLEAN OUT This part replaces 14850-18900.

14850-24500

Unavailable

14

BOLT

09100-06011

$1.58

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

16

PLUG

09247-12103

$2.80

17

GASKET

09168-12002

$1.63

18

BOLT This part replaces 01107-08358.

01500-0835B

$2.82

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

20

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.17

21

SPACER This part replaces 09180-08102.

09180-08194

$2.90

22

CUSHION, EXHAUST SUPPORT This part replaces 09320-12026.

09320-12043

$7.42
