1984 Suzuki LT125 Handlebar - Steering Diagram

← All diagrams

Find the part on the Handlebar - Steering diagram for your 1984 Suzuki LT125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

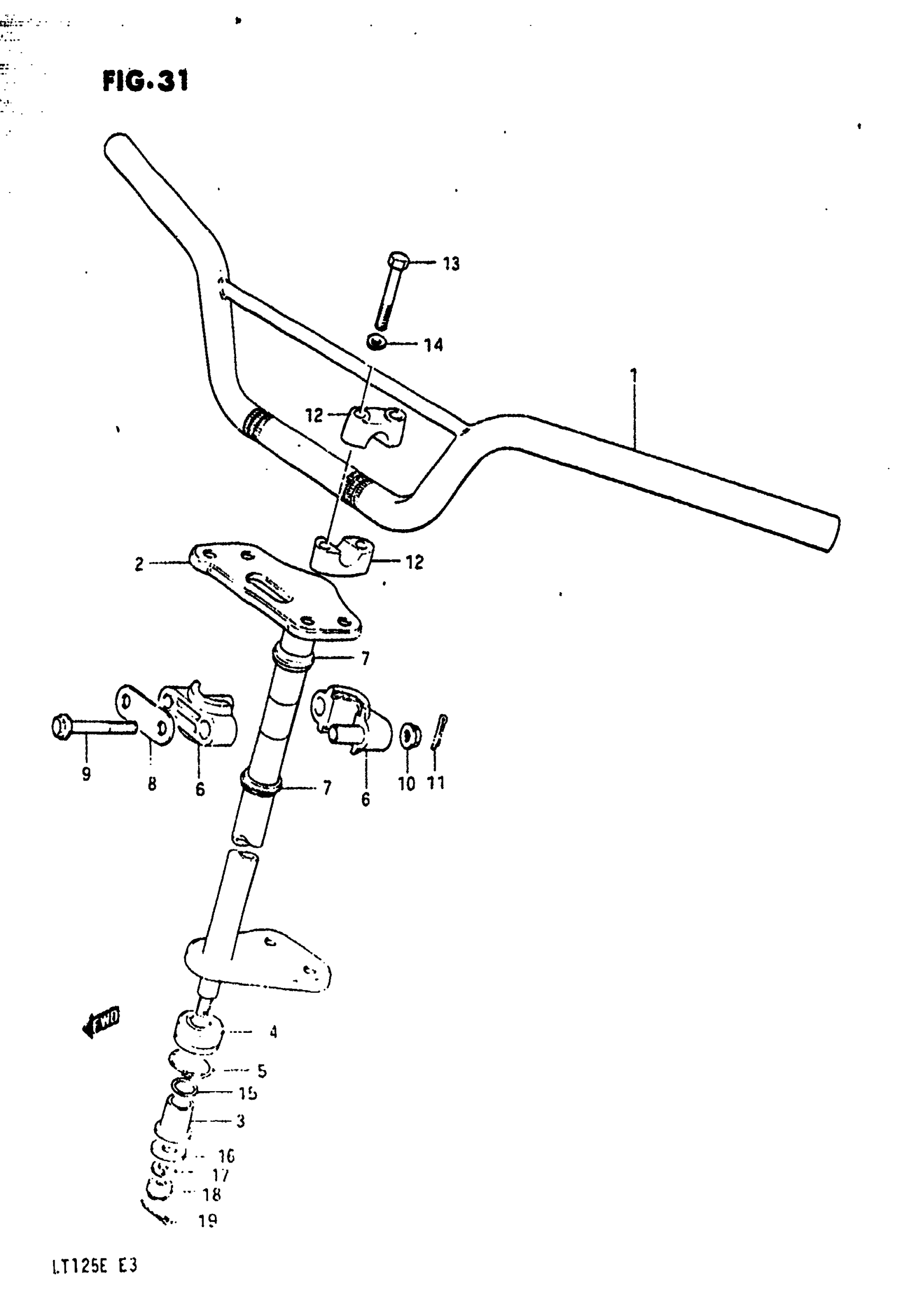

1984 Suzuki LT125 Handlebar - Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 56110-18900.

56110-18900-291

1
Out of stock

2

SHAFT, STEERING This part replaces 51650-18902-019.

51650-18903-019

1
Out of stock

3

BUSH, STEERING LOWER This part replaces 51661-18900.

51661-24401

1
Out of stock

4

DUST SEAL, STEERING SHAFT

51662-18900

1
Out of stock

5

CLIP, DUST SEAL

09380-31002

1
Out of stock

6

HOLDER,STEERING SHAFT This part replaces 51670-18901.

51670-18902

2
Out of stock

7

DUST SEAL, STEERING

51678-18900

2
Out of stock

8

REINFORCEMENT

51681-18900

1
Out of stock

9

BOLT

09103-08085

2
Out of stock

10

NUT (CHROME) This part replaces 08316-16086.

08316-10087

2
Out of stock

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

12

CLAMP, HANDLEBAR

56211-27200-291

4
Out of stock

13

BOLT

01204-08557

4
Out of stock

14

4

$2.28

In stock

15

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

1
Out of stock

16

WASHER This part replaces 09160-10068.

09160-10128-XC0

1
Out of stock

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

18

NUT This part replaces 08319-21108.

09159-10027

1
Out of stock

19

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock
