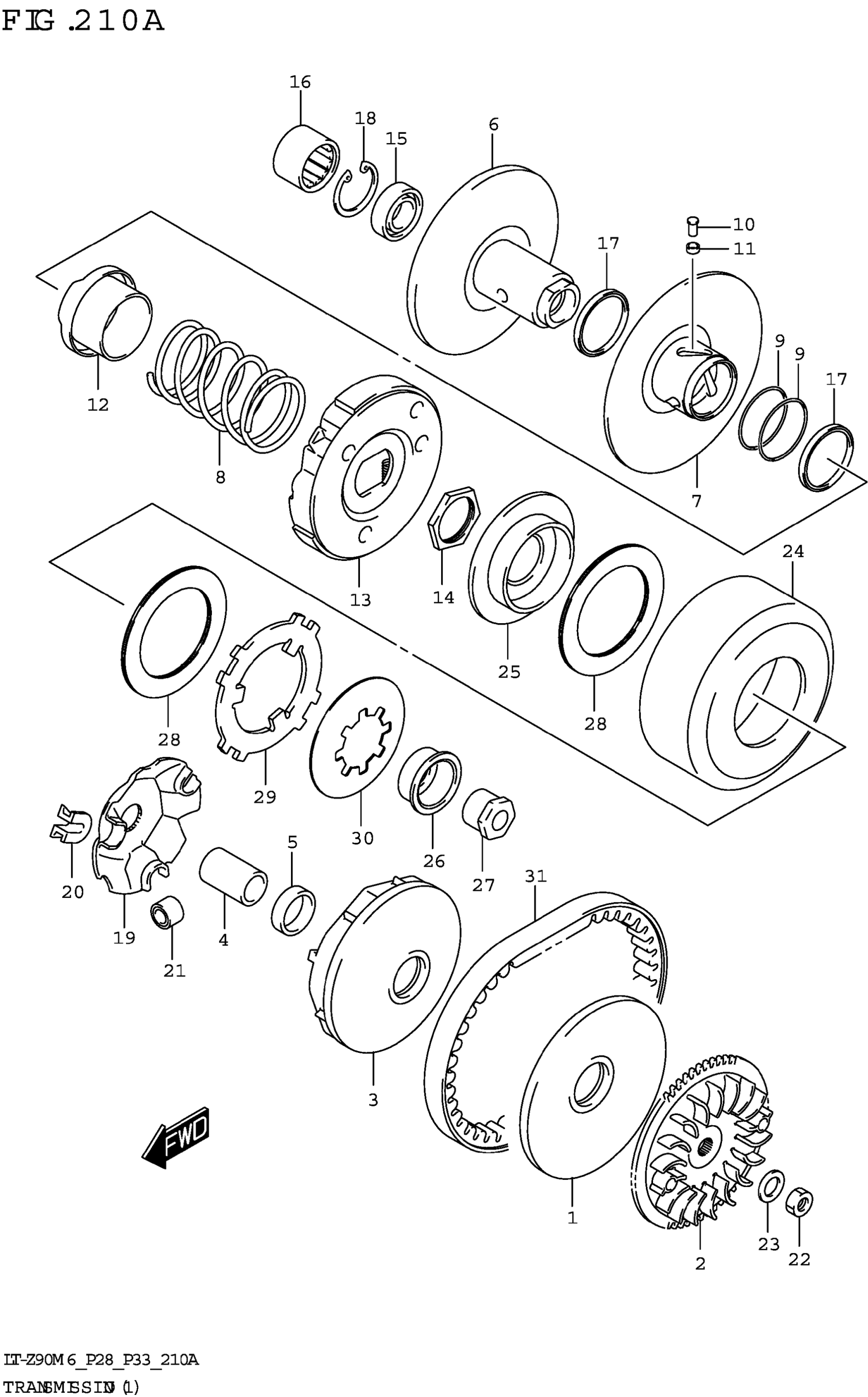

Suzuki LT-Z90M6 (2026) TRANSMISSION (1) Diagram

#

Description
Price

1

FACE,FIXED DRIVE

21111-08H00

$41.37

2

FAN,FIXED DRIVE FACE (NT:36)

21113-08H00

$87.47

3

FACE,MOVABLE DRIVE

21120-33G00

$109.53

4

SPACER,MOVABLE DRIVE

21125-33G00

Unavailable

5

SPACER,MOVABLE DRIVE STOPPER

21128-08H00

$7.30

6

FACE,FIXED DRIVEN

21210-33G00

Unavailable

7

FACE,MOVABLE DRIVEN

21240-33G01

Unavailable

8

SPRING,MOVABLE DRIVEN

21243-33G00

$54.60

9

O-RING,MOVABLE DRIVEN

21245-33G00

$9.62

10

PIN,MOVABLE DRIVEN

21248-33G00

Unavailable

11

SPACER,MOVABLE DRIVEN PIN

21249-33G00

Unavailable

12

SHEET,MOVABLE DRIVEN

21471-33G00

Unavailable

13

CLUTCH ASSY,SHOE

21501-08H00

$295.57

14

NUT

09140-28004

$10.33

15-1

BEARING (15X24X5)

09262-15035

Unavailable

15-2

BEARING,15X24X5 (15X24X5)

09262-15051

Unavailable

16-1

BEARING (20X26X14)

09263-20093

Unavailable

16-2

BEARING (20X26X14)

09263-20105

Unavailable

17

SEAL,OIL,33.2X39X3 (34X39X3)

09284-34004

$14.73

18

CIRCLIP

09381-24005

$4.18

19

PLATE,MOVABLE DRIVE

21431-33G00

Unavailable

20

DAMPER,MOVABLE DRIVE PLATE

21481-14F00

$6.61

21

ROLLER,MOVABLE DRIVE

21650-21F70

$18.60

22

NUT (M12)

09140-12039

$2.80

23

WASHER (12.2X22X1.2)

09164-12020

$2.10

24

HOUSING,CLUTCH

21220-29A01

$106.07

25

HUB,LIMITER CLUTCH

21411-08H00

Unavailable

26

STOPPER,LIMITER

21412-08H00

Unavailable

27

NUT,CLUTCH HOUSING

21413-08H00

Unavailable

28

PLATE,LIMITER CL FRICTION

21441-29A01

Unavailable

29

PLATE,LIMITER CLUTCH PRESSURE

21461-29A01

$8.27

30

SPRING

09164-30003

$14.90

31

V-BELT,DRIVE

27601-33G00

$162.61
