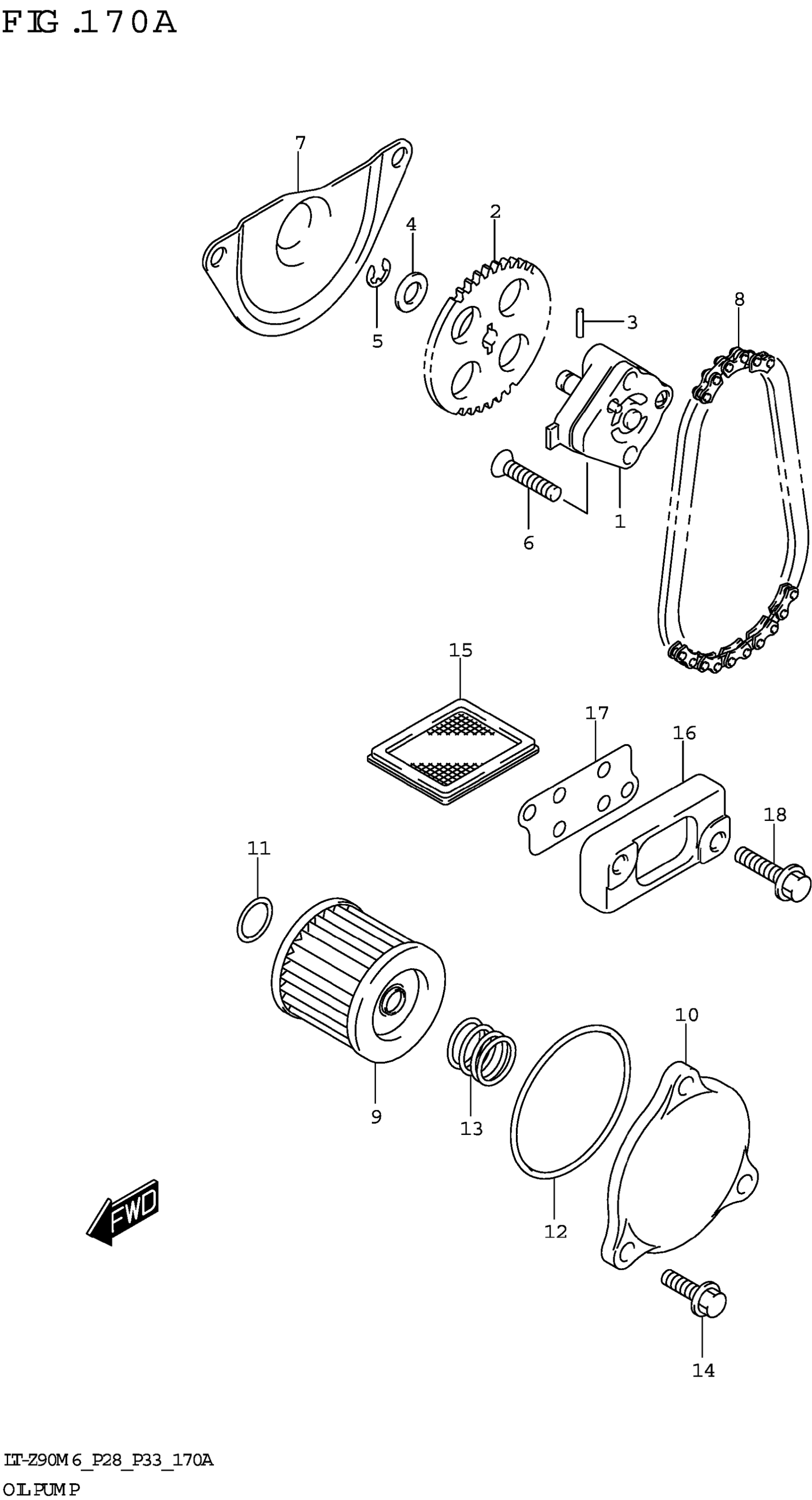

Suzuki LT-Z90M6 (2026) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY,ENG OIL

16400-33G40

Unavailable

2

SPROCKET,OIL PUMP DRIVEN (NT: | 1)

16331-33G40

Unavailable

3

PIN

16421-20E00

Unavailable

4

WASHER

16422-20E00

Unavailable

5

CIRCLIP

16423-20E00

Unavailable

6

SCREW

02122-0625B

$1.88

7

COVER,OIL PUMP

16422-33G00

Unavailable

8

CHAIN ASSY,OIL PUMP DRIVE

16310-33G40

Unavailable

9

FILTER ASSY,ENG OIL

16510-05240

$6.06

10

CAP,OIL FILTER

16512-09G00

$27.43

11

.O-RING (D:1.9,ID:13)

09280-13004

$2.17

12

.O-RING (D:2.4,ID:52.6)

09280-54001

$3.76

13

SPRING (L:14.5)

09440-18002

$1.49

14

BOLT

01547-0616B

$2.45

15

STRAINER,ENGINE OIL

16520-09410

$4.82

16

CAP,OIL STRAINER

16523-20E00

Unavailable

17

.GASKET,OIL STRAINER CAP

16524-20E00

$5.44

18

BOLT

01547-0625B

$2.45
