2026 Suzuki LT-Z90M6 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2026 Suzuki LT-Z90M6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

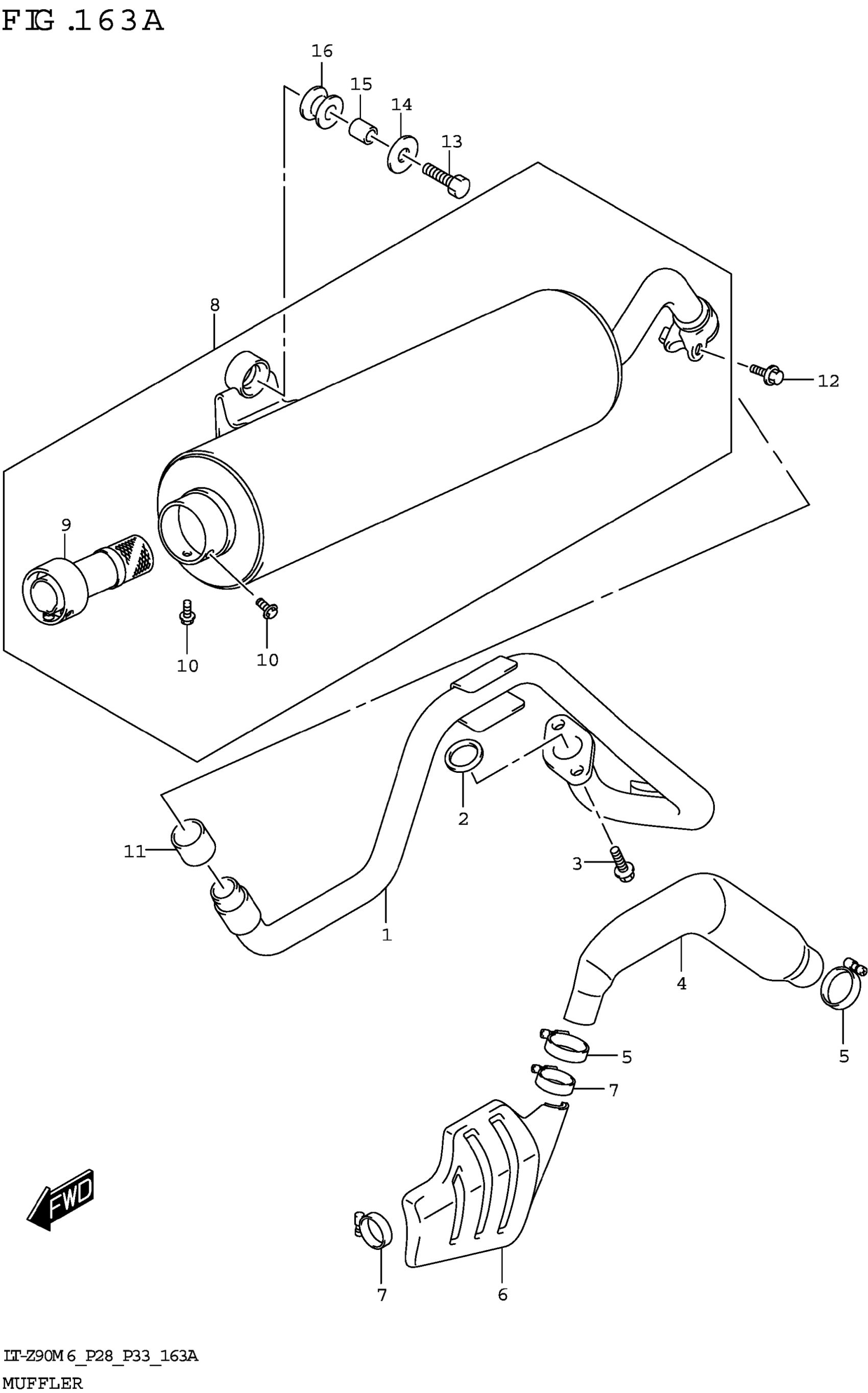

2026 Suzuki LT-Z90M6 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE,EXH

14150-08H00

1
Out of stock

2

.GASKET,EXH PIPE

14181-06F00

1
Out of stock

3

BOLT

07120-0820B

2

$4.45

In stock

4

COVER,EXH FR

14180-08H00

1
Out of stock

5

CLAMP

09402-40502

2
Out of stock

6

COVER,EXH RR

14190-08H00

1
Out of stock

7

CLAMP

09402-32512

2
Out of stock

8

BODY,MUFFLER

14310-08H01

1
Out of stock

9

.ARRESTER

14850-08H10

1
Out of stock

10

BOLT

01547-0610B

1
Out of stock

11

CONNECTOR,MUF

14771-26F00

1
Out of stock

12

BOLT

07120-0840B

1
Out of stock

13

BOLT

01500-0835B

1
Out of stock

14

WASHER (8.5X26X1.6)

09160-08151

1
Out of stock

15

SPACER,8.5X12X17.5 (8.5X12X17 | 5)

09180-08194

1
Out of stock

16

CUSHION

09320-12043

1
Out of stock
