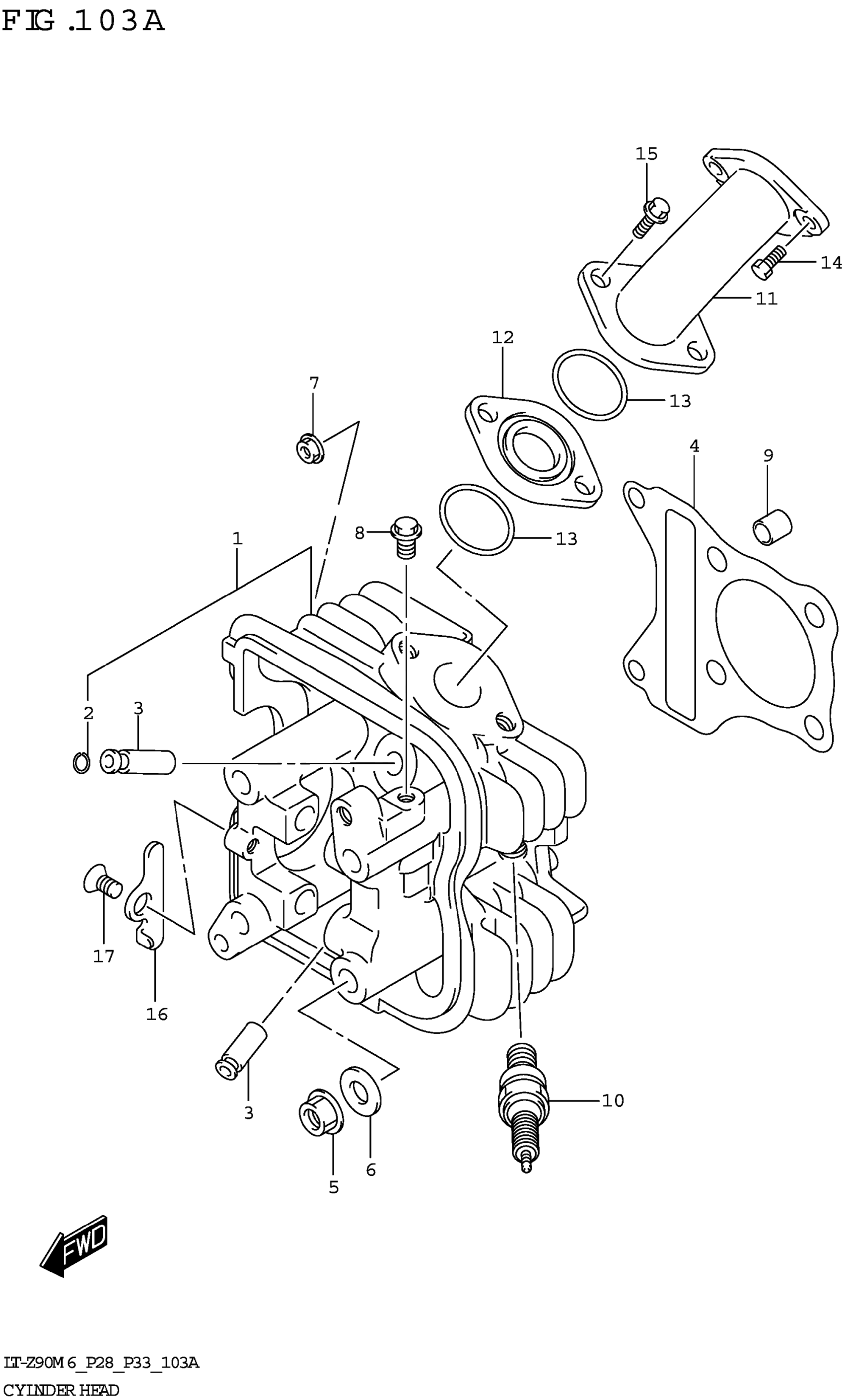

Suzuki LT-Z90M6 (2026) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD,CYLINDER

11110-08H00

Unavailable

2

.RING (10X85)

09381-10004

$1.35

3

GUIDE,VALVE (OS:0.3) | OPT

11115-30D70

$35.98

4

.GASKET,CYLINDER HEAD

11141-08H00

$32.88

5

NUT

08316-1008B

$2.65

6

WASHER (8.5X19X2.3)

09160-08039

$1.95

7

NUT

08316-1006B

$2.50

8

BOLT

01547-0610B

$2.47

9

PIN

04211-11129

$1.77

10-1

SPARK PLUG,CR6HSA (CR6HSA)

09482-00406

$2.92

10-2

SPARK PLUG,U20FSR-U (U20FSR-U

09482-00407

Unavailable

11

PIPE,INTAKE

13111-08H00

$55.92

12

INSULATOR,INTAKE PIPE

13117-08H00

$7.92

13

.O-RING (D:2.4,ID:24.7)

09280-25004

$2.01

14

BOLT (6X16)

07120-0616B

$2.47

15

BOLT

07120-0620B

$2.80

16

RETAINER,CAMSHAFT

12862-33G00

Unavailable

17

SCREW

02122-0612B

$1.86
