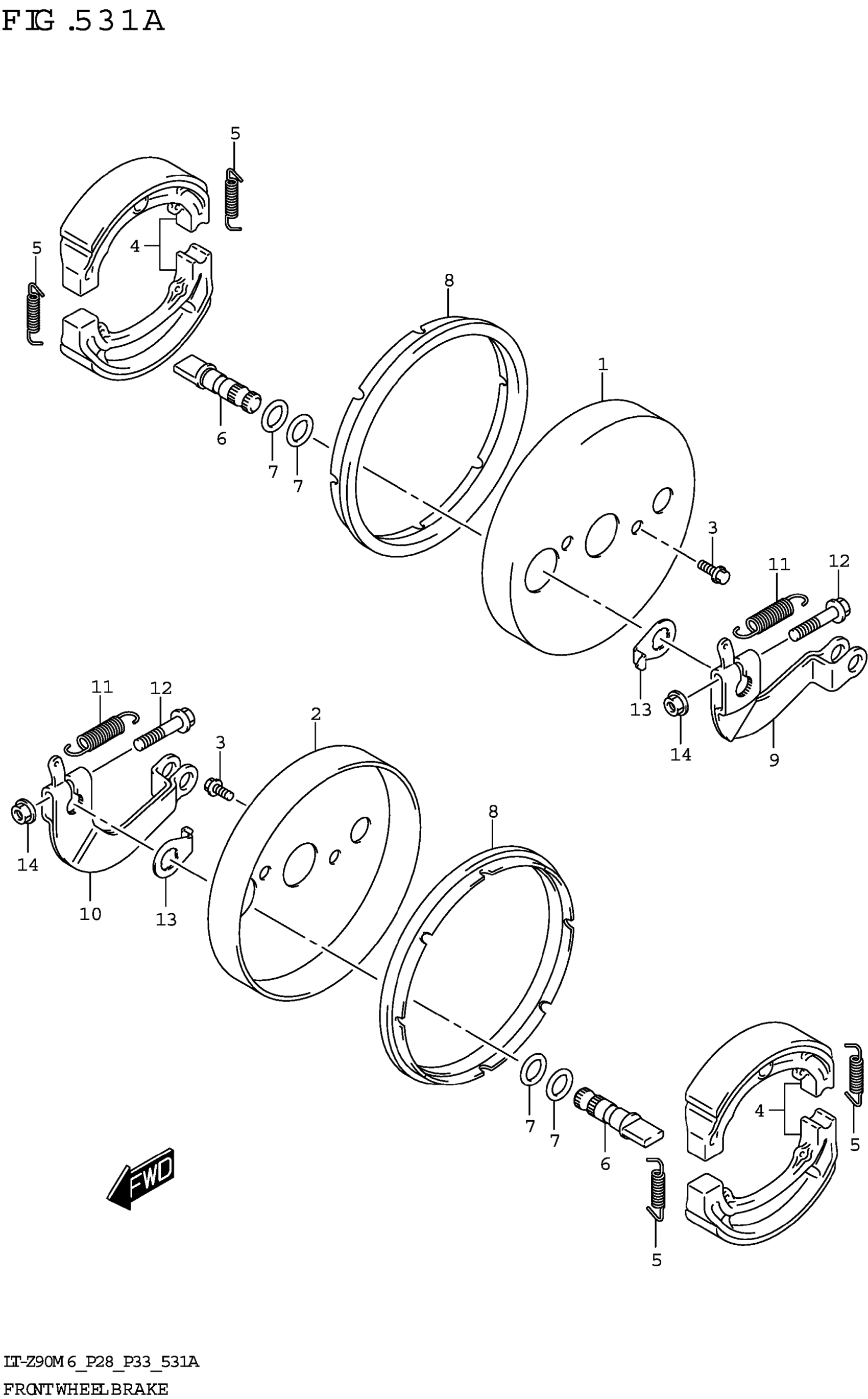

Suzuki LT-Z90M6 (2026) FRONT WHEEL BRAKE Diagram

#

Description
Price

1

PLATE,FRONT BRAKE,R

54511-08H00

$20.42

2

PLATE,FRONT BRAKE,L

54811-08H00

Unavailable

3

BOLT

01547-0610B

$2.45

4

SHOE SET,FRONT BRAKE

54400-08810

$87.90

5

SPRING,REAR BRAKE SHOE

55421-20E00

$2.92

6

CAM,FRONT BRAKE

54441-08H00

Unavailable

7

O RING, OIL GALLERY This part replaces 09280-12002.

09280-12012

$4.64

8

SEAL,FRONT BRAKE DUST

54124-08H00

Unavailable

9

LEVER,FRONT BRAKE CAM,R

54450-08H00

Unavailable

10

LEVER,FRONT BRAKE CAM,L

54460-08H00

$32.91

11

SPRING

09443-10044

$5.18

12

BOLT (6X32)

09103-06135

$2.53

13

PLATE,FR BK LINING INDICATOR

54492-08H00

Unavailable

14

NUT

08316-1006B

$2.50
