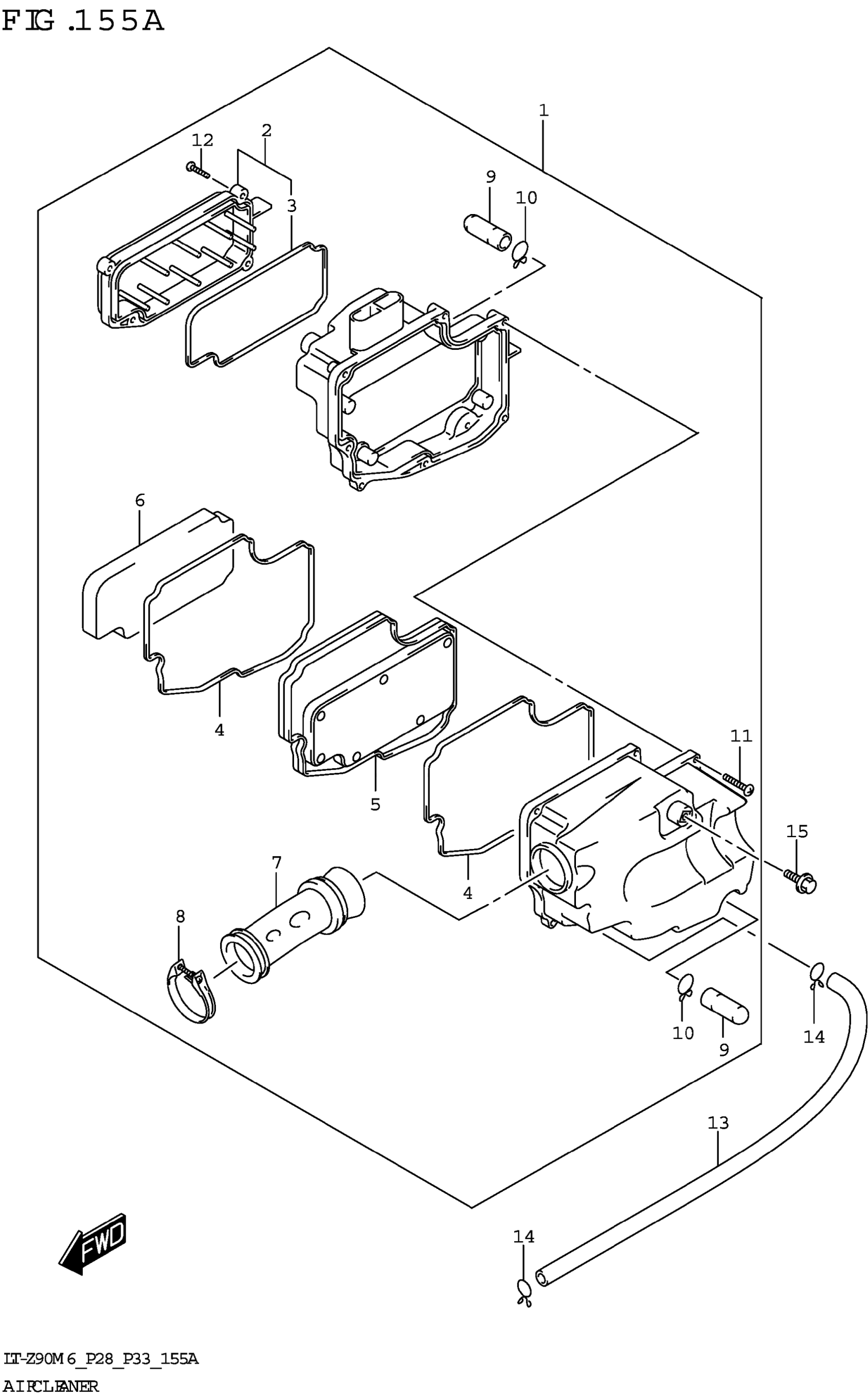

Suzuki LT-Z90M6 (2026) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR

13700-08H00

$294.38

2

.CAP

13740-08H00

$40.48

3

..GASKET,CAP

13746-08H00

$14.27

4

.GASKET,CASE

13756-08H00

$14.77

5

.CASE,SEPARETER

13723-08H00

Unavailable

6

.FILTER

13781-08H00

$16.12

7

.TUBE,OUTLET

13881-08H00

$53.33

8

.CLAMP

09402-42208

$6.88

9

.PLUG,DRAIN

13871-08H00

$8.05

10

.CLIP

09401-14301

$2.35

11

.SCREW

03541-0420A

$2.15

12

SCREW

03541-0520A

$1.80

13

HOSE,BREATHER

13853-08H00

Unavailable

14

.CLIP

09401-14301

$2.35

15

BOLT

01550-0612B

$2.39
