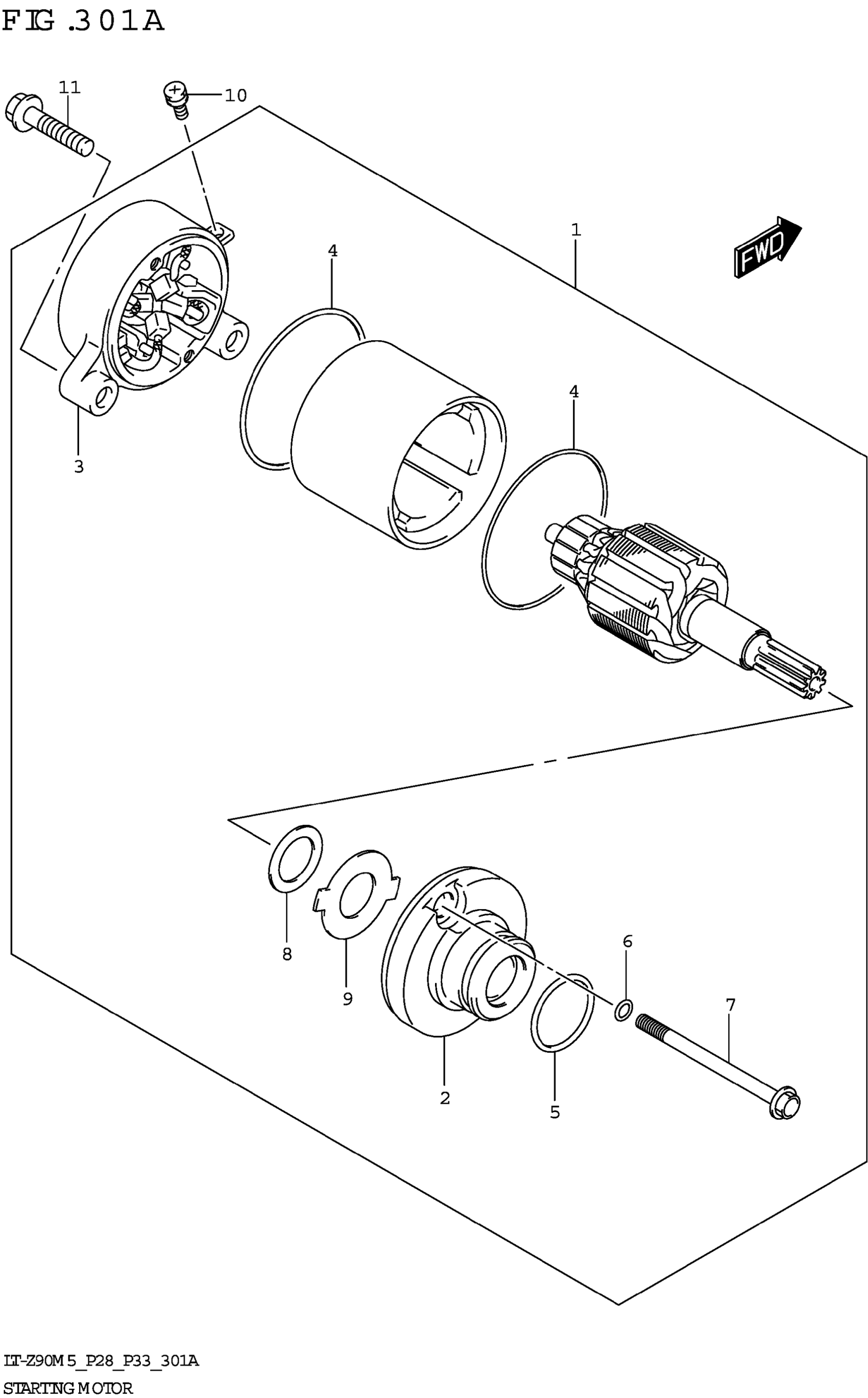

Suzuki LT-Z90M5 (2025) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY,STARTING

31100-33G01

$494.00

2

.BRACKET

31150-33G00

Unavailable

3

.FRAME ASSY,COMMUTATOR END

31175-33G01

Unavailable

4

.O RING

31264-05530

Unavailable

5

.O-RING (D:3,ID:24.5)

09280-24003

$1.61

6

.O RING

31156-05530

Unavailable

7

.BOLT

31281-33G00

Unavailable

8

.SHIM

31361-055A0

Unavailable

9

.PLATE,LOCK

31361-055B0

Unavailable

10

SCREW (5X8)

09137-05004

$2.50

11

BOLT

01547-0625B

$2.50
