2025 Suzuki LT-Z90M5 Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 2025 Suzuki LT-Z90M5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

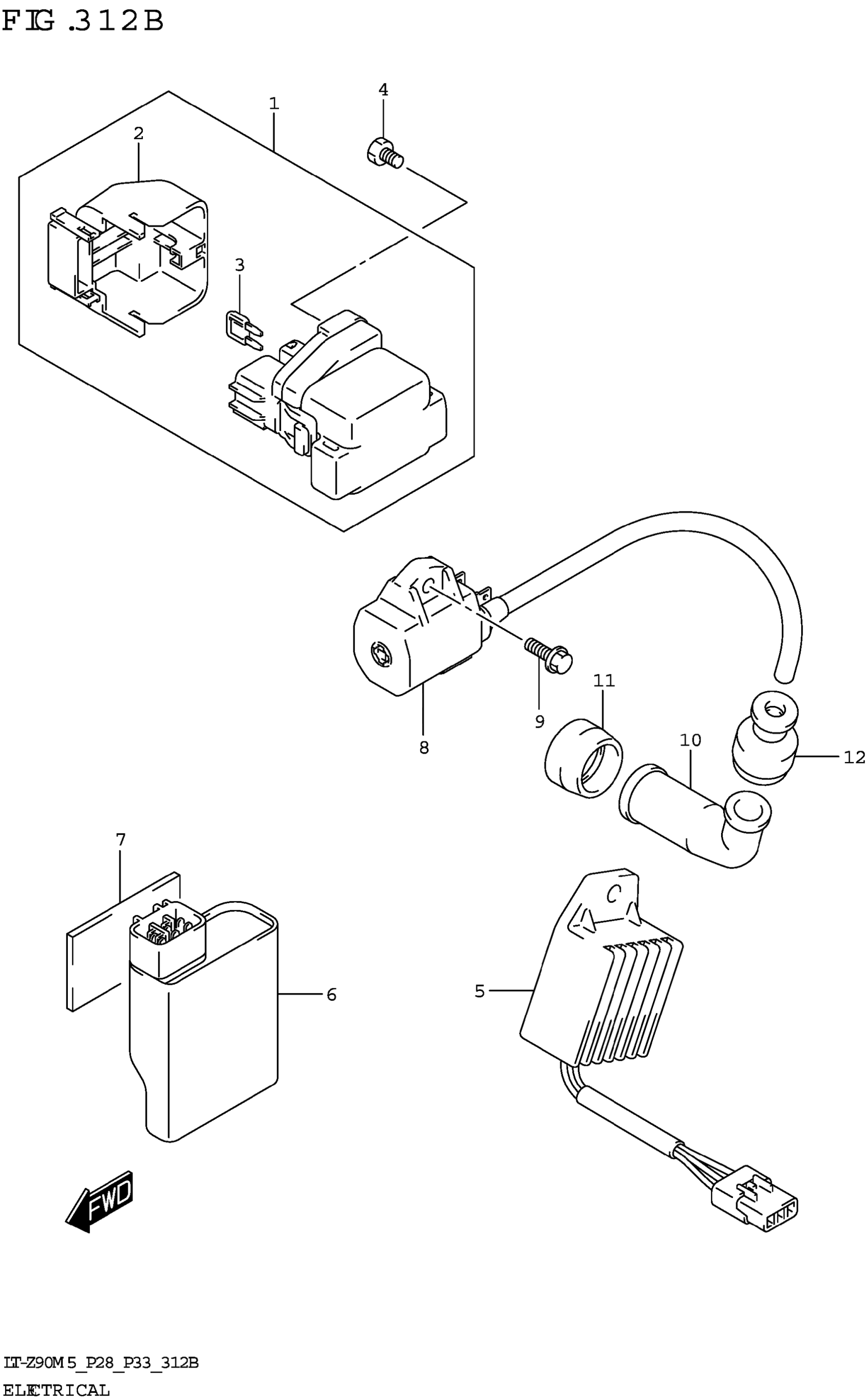

2025 Suzuki LT-Z90M5 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY,STARTING MOTOR

31800-08H00

1
Out of stock

2

.COVER

31861-38G00

1
Out of stock

3

.FUSE (10A)

09481-10501

2
Out of stock

4

SCREW (6X8)

09128-06013

2
Out of stock

5

RECTIFIER ASSY

32800-08H01

1
Out of stock

6

CDI UNIT

32900-08H00

1
Out of stock

7

CUSHION (30X50X3)

33652-36000

1

$2.87

In stock

8

COIL ASSY,IGNITION

33410-36G00

1
Out of stock

9

SCREW

02162-0620B

1
Out of stock

10

CAP ASSY,SPARK PLUG

33510-20E00

1
Out of stock

11

SEAL,SPARK PLUG

33541-47D00

1
Out of stock

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

1
Out of stock
