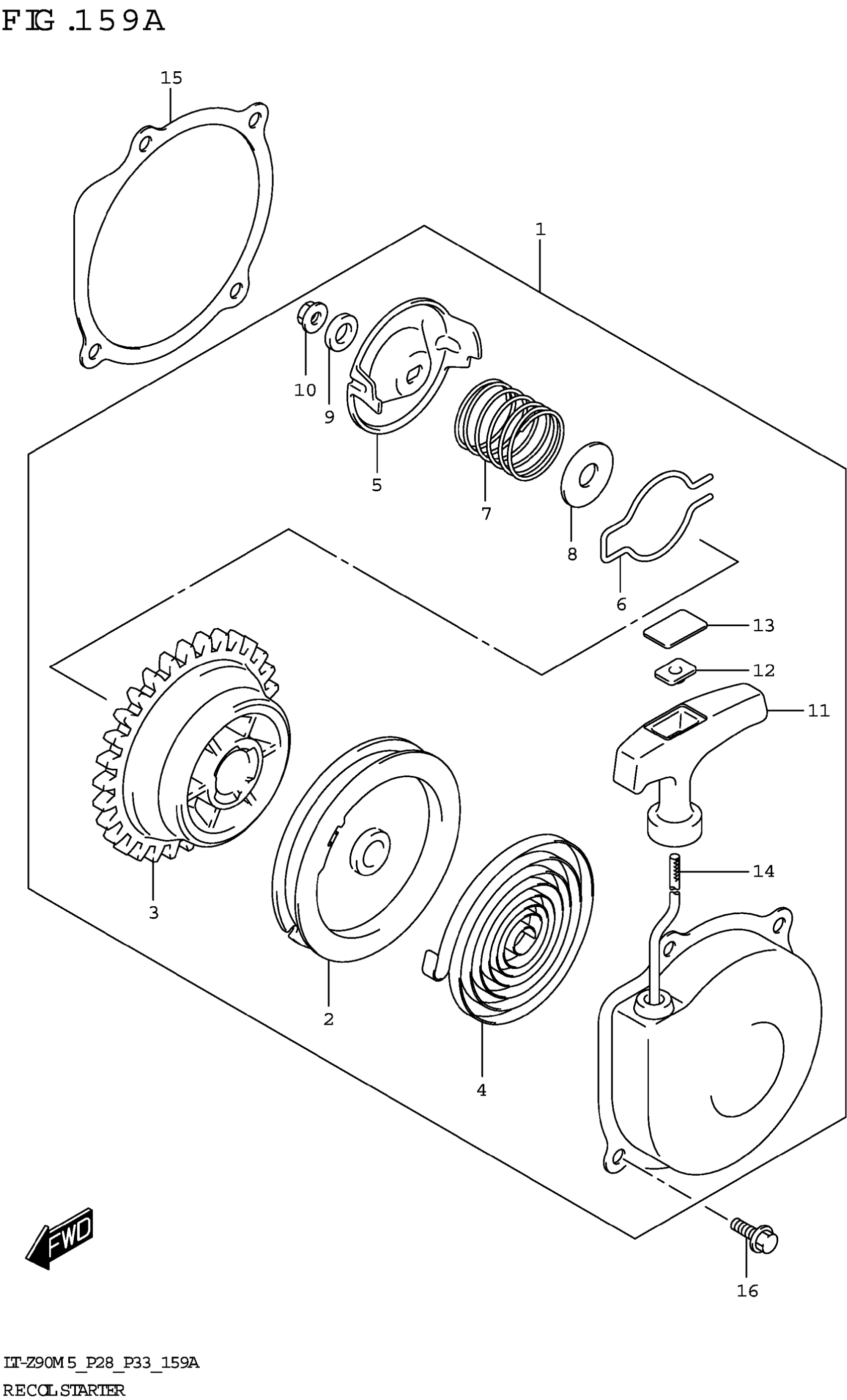

Suzuki LT-Z90M5 (2025) RECOIL STARTER Diagram

#

Description
Price

1

STARTER ASSY,RECOIL

18100-08H01

$259.93

2

.REEL

18121-08H00

$33.72

3

.GEAR

18131-08H00

$33.80

4

.SPRING,SPIRAL

18142-40B00

$24.42

5

.RETAINER

18151-08H00

$27.85

6

.SPRING,FRICTION

18153-40B00

$9.00

7

.SPRING,RETURN

18161-40B00

$14.76

8

WASHER This part replaces 09160-10129.

09160-10035

$1.78

9

.WASHER (8.5X18X1.6)

09160-08059

$1.68

10

.NUT

18334-40B00

$4.33

11

.KNOB

18211-08H01

Unavailable

12

.REINFORCEMENT

18212-04411

Unavailable

13

.SEAL

18214-08H00

Unavailable

14

.ROPE

18221-08H00

$16.13

15

.GASKET,RECOIL STARTER

18299-08H00

$14.03

16

BOLT (6X12)

09103-06236

$2.69
