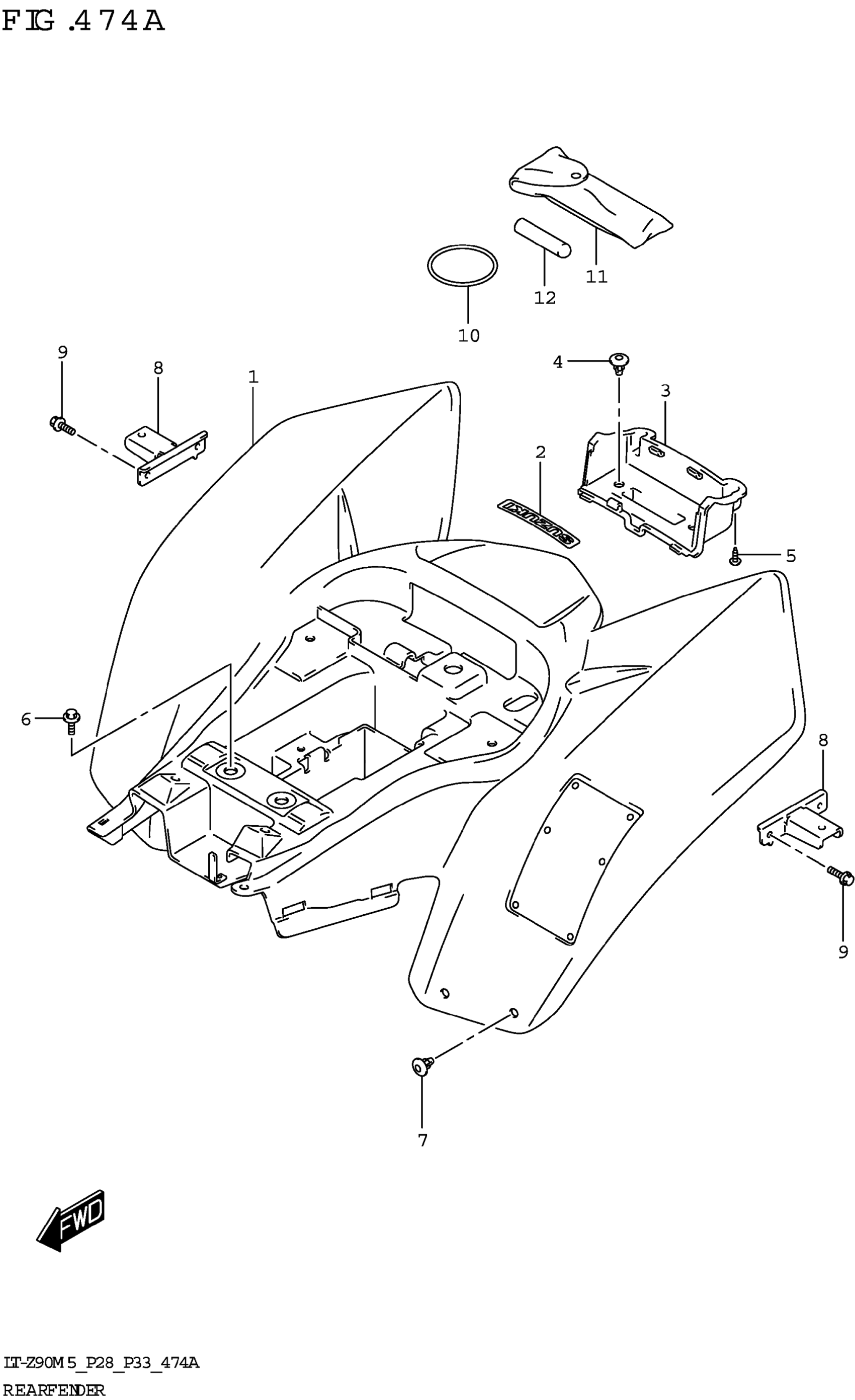

Suzuki LT-Z90M5 (2025) REAR FENDER Diagram

#

Description
Price

1

FENDER,RR (YELLOW)

63111-08H00-YU1

$647.78

2

EMBLEM,SUZUKI"" (YELLOW,BLACK

68721-09A00-GY8

$12.82

3

FENDER,REAR LOWER

63121-08H00

Unavailable

4

CLIP (D:2.4,ID:23.7)

09409-07333

$2.31

5

SCREW

03541-0516A

$1.49

6

BOLT (6X18)

09111-06081

$4.09

7

CLIP

09409-08335

$2.47

8

REINF,REAR FENDER

63130-08H00

Unavailable

9

BOLT (6X20)

01550-0620A

$1.97

10

O-RING (D:3.53,ID:69.44)

09280-70004

$3.85

11

TOOL ASSY

96510-08H01

$46.23

12

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92
