Description

Price

1

PIPE,EXH

14150-08H00

$135.95

2

.GASKET,EXH PIPE

14181-06F00

$12.80

3

BOLT

07120-0820B

$3.49

4

COVER,EXH FR

14180-08H00

Unavailable

5

CLAMP

09402-40502

Unavailable

6

COVER,EXH RR

14190-08H00

Unavailable

7

CLAMP

09402-32512

$12.85

8

BODY,MUFFLER

14310-08H01

Unavailable

9

.ARRESTER

14850-08H10

$84.32

10

BOLT

01547-0610B

$2.45

11

CONNECTOR,MUF

14771-26F00

$21.42

12

BOLT

07120-0840B

$3.82

13

BOLT

01500-0835B

$3.04

14

WASHER (8.5X26X1.6)

09160-08151

$1.99

15

SPACER,8.5X12X17.5 (8.5X12X17 | 5)

09180-08194

$3.05

16

CUSHION

09320-12043

$7.98

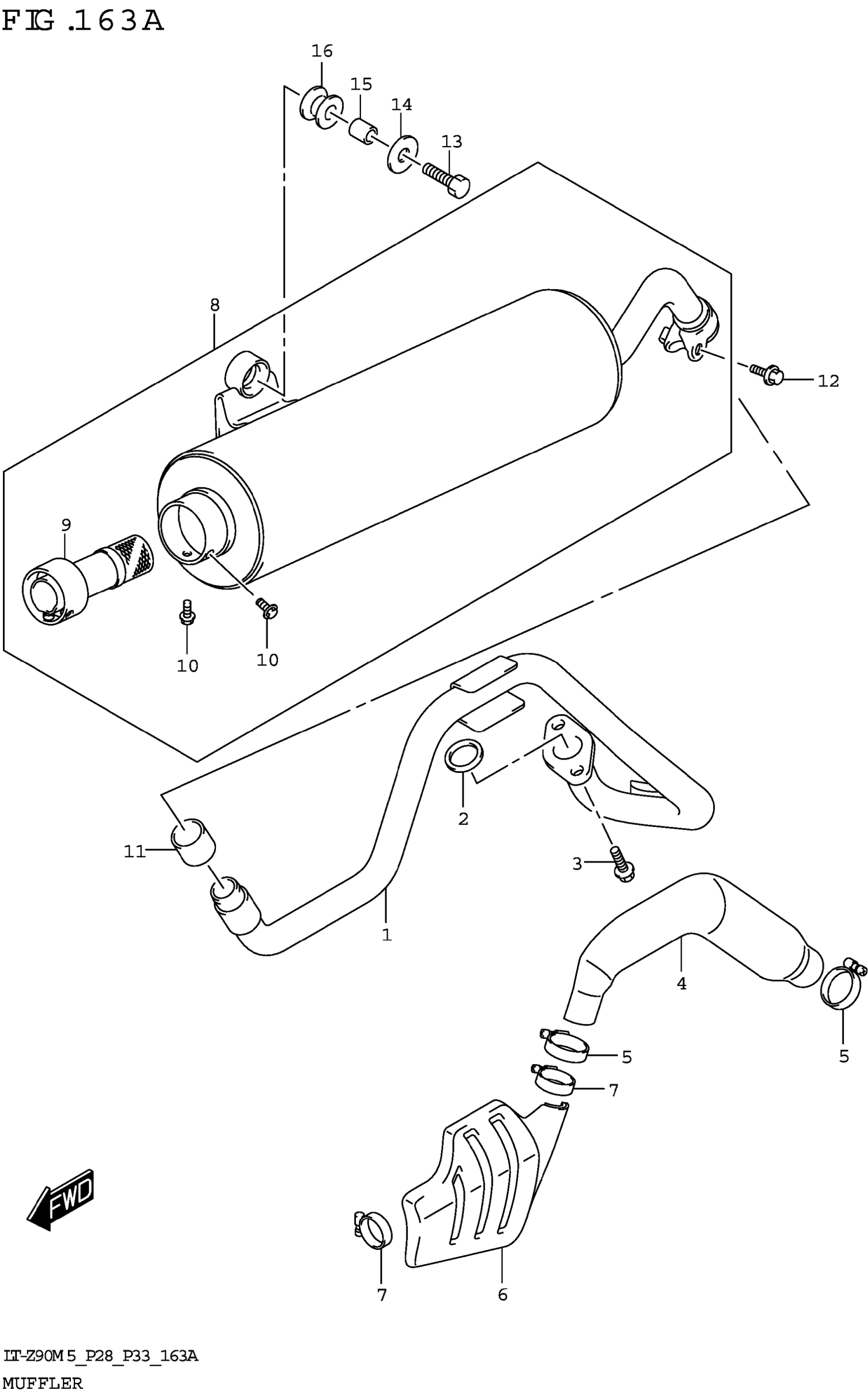

Suzuki LT-Z90M5 (2025) MUFFLER Diagram

PIPE,EXH

.GASKET,EXH PIPE

BOLT

COVER,EXH FR

CLAMP

COVER,EXH RR

CLAMP

BODY,MUFFLER

.ARRESTER

BOLT

CONNECTOR,MUF

BOLT

BOLT

WASHER (8.5X26X1.6)

SPACER,8.5X12X17.5 (8.5X12X17 | 5)

CUSHION
