Description

Price

1

HUB,FRONT

54110-08H00

$271.50

2

BEARING (17X40X12)

09262-17031

$33.65

3

SEAL,OIL (22X40X6)

09283-22028

$8.52

4

BEARING (15X35X11)

09262-15024

$24.83

5

OIL SEAL (20X35X5)

09283-20057

$6.02

6

SPACER,FRONT HUB BEARING INNE

54731-08H00

Unavailable

7

SPACER,FRONT AXLE

54741-40B00

$4.82

8

WASHER,14.5X29X2.3 (14.5X29X2 | 3)

09160-14009

$2.82

9

NUT

08314-4014B

$4.24

10

PIN

04111-3025A

$1.49

11

CAP,WHEEL CENTER

54725-18A00

$10.28

12

RIM,FRONT WHEEL (8X5.5AT,SILV | R)

55310-08H00-13L

$215.92

13

WASHER (10X20X2.3)

09160-10142

$2.34

14

NUT

08316-1010B

$2.66

15

TIRE,FRONT (AT19X7-8,DI-K149A

55110-08H10

$245.77

16

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

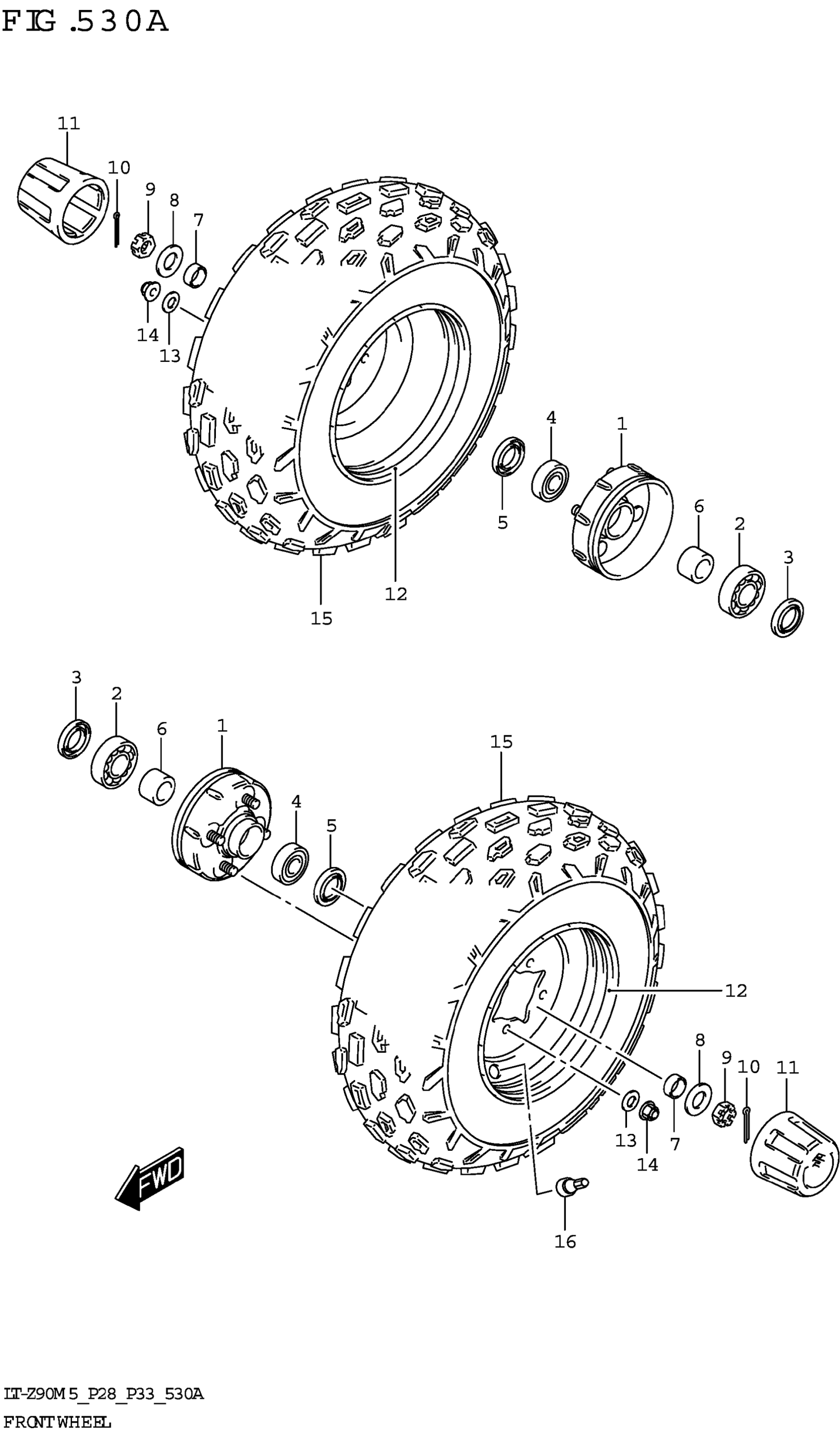

Suzuki LT-Z90M5 (2025) FRONT WHEEL Diagram
