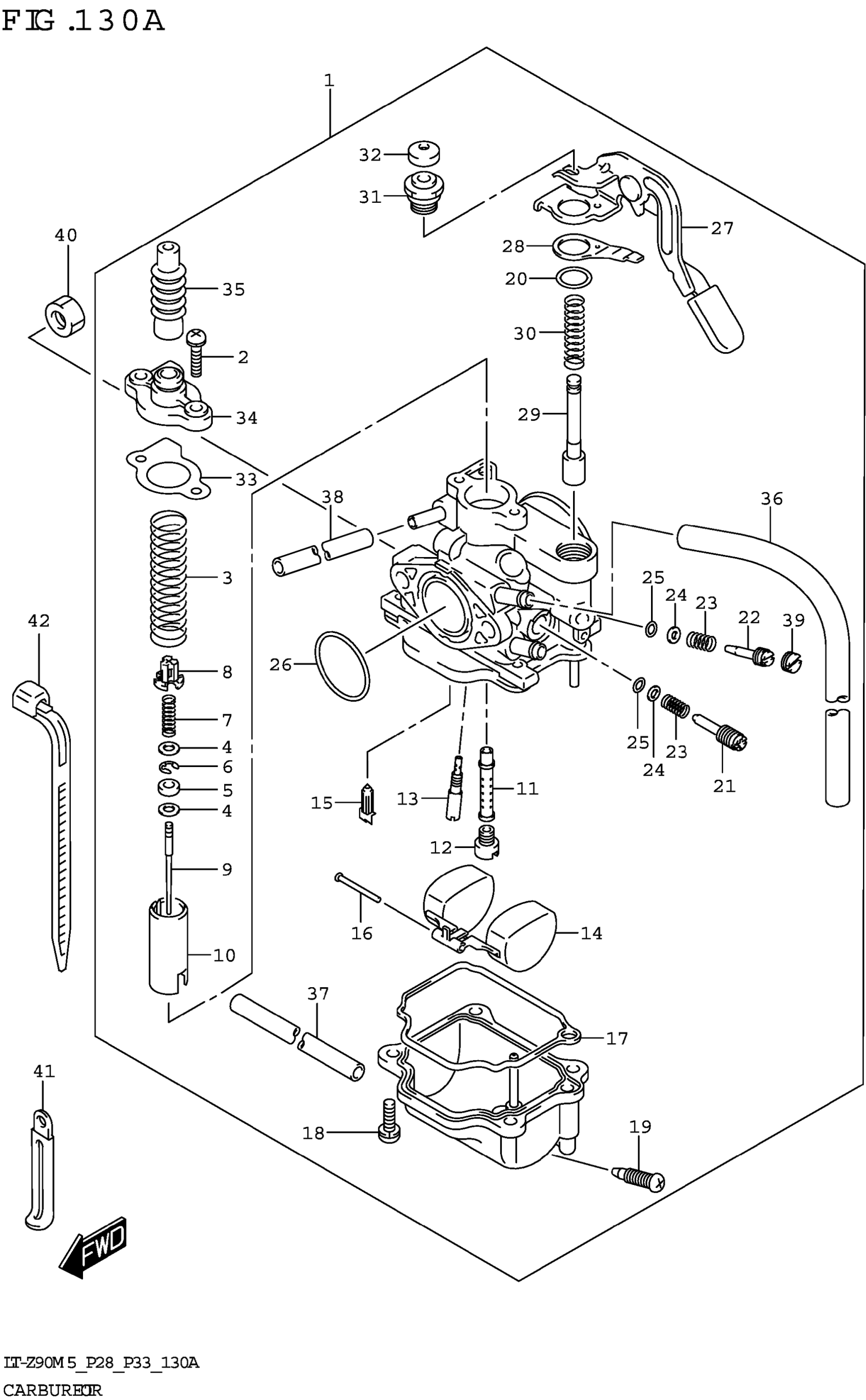

Suzuki LT-Z90M5 (2025) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

13200-08H01

$415.10

2

SCREW This part replaces 13601-04128.

02112-3412B

$2.30

3

.SPRING

13573-08H00

Unavailable

4

.WASHER

13382-23F00

$4.45

5

.RING

13387-23F00

$6.05

6

.E RING

13533-98410

$5.31

7

.SPRING

13481-23F00

$5.67

8

.HOLDER

13418-12F40

$7.20

9

.NEEDLE,JET

13383-08H00

$18.80

10

.PISTON VALVE

13511-08H00

$86.82

11

.JET,NEEDLE

13341-08H00

$41.63

12

.JET,MAIN (#80)

09491-80011

$16.57

13

.JET,PILOT (#17.5)

09492-17012

$24.42

14

.FLOAT

13250-06410

$36.73

15

.VALVE ASSY,NEEDLE

13370-09D00

$32.73

16

.PIN,FLOAT

13254-29C50

Unavailable

17

.O RING,FLOAT CHAMBER

13258-30A01

$6.85

18

.SCREW

13601-04148

$2.81

19

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

20

.O RING (16)

13278-47091

$1.90

21

.ADJUSTER

13267-47A00

$7.08

22

.ADJUSTER

13269-08H00

$13.05

23

.SPRING

13494-09410

$4.35

24

.WASHER (14X17)

13291-29900

$1.98

25

O-RING

13295-29901

$4.34

26

.O-RING (D:2,ID:23.5)

09280-24006

$1.72

27

.LEVER ASSY,STARTER

13420-08H00

$55.23

28

.PLATE,SPRING

13421-08H00

Unavailable

29

.PLUNGER ASSY

13411-08H00

$19.15

30

.SPRING

13417-43G00

$4.52

31

.HOLDER,GUIDE

13418-08H00

$25.18

32

.CAP

13416-46711

$2.58

33

.GASKET

13249-30A10

$3.70

34

.CAP ASSY,TOP

13261-09G20

Unavailable

35

.CAP

13681-36GA0

$12.80

36

.Y2 HOSE

13683-48B01

$13.48

37

.HOSE

13683-35431

$2.18

38

.HOSE

13683-08H01

$10.98

39

.PLUG

13281-05A00

$4.60

40

NUT (6X3.6)

09140-06023

$2.06

41

CLAMP (L:45)

09404-06429

$1.83

42

CLAMP (L:125)

09407-14403

$2.26
