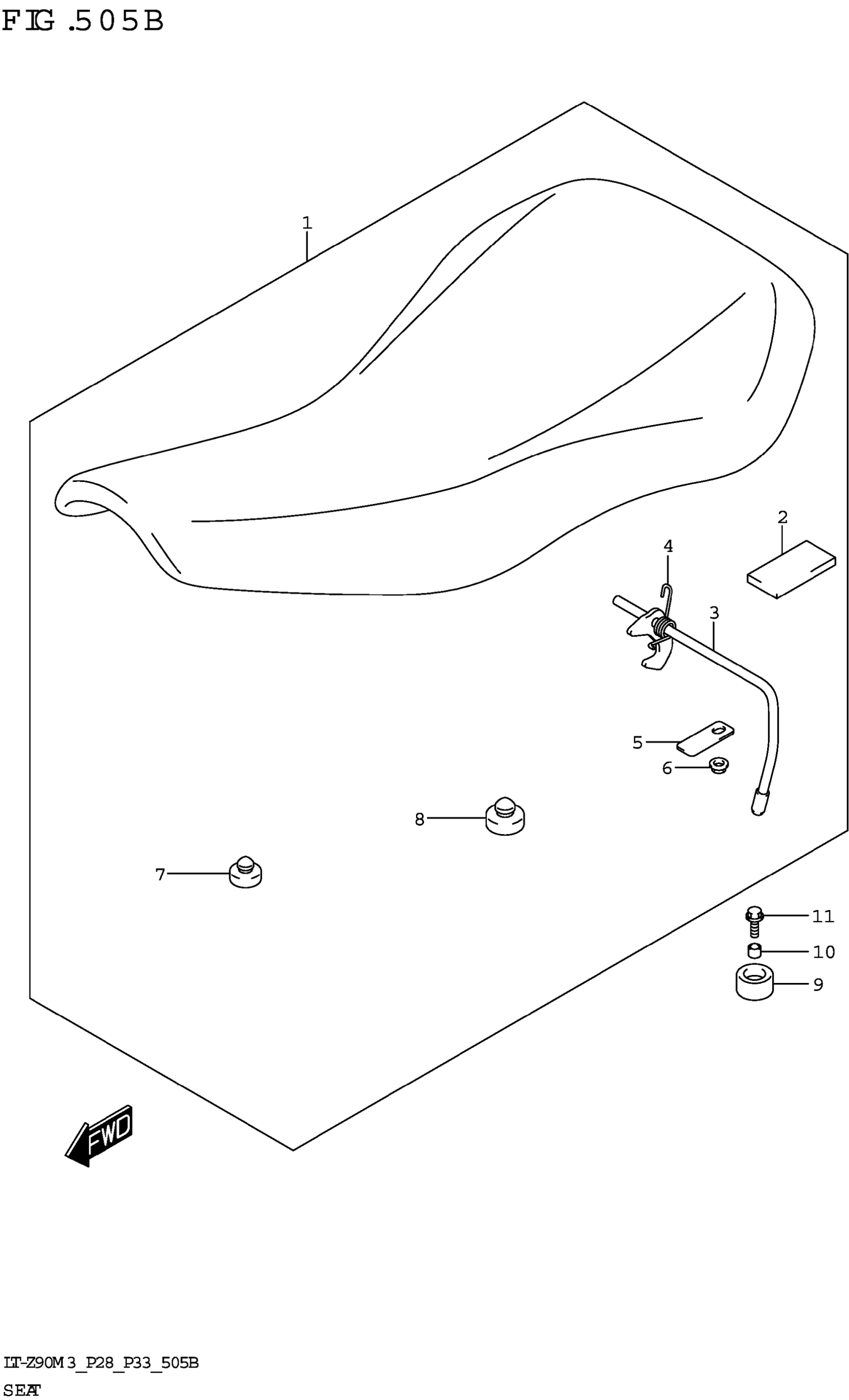

Suzuki LT-Z90M3 (2023) SEAT (P28) Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-08H11-6BY

Unavailable

2

.CUSHION,SEAT MOUNT BOSS

45149-08H00

Unavailable

3

.CLAMP,SEAT LOCK

45210-08H00

Unavailable

4

.SPRING

45135-43F00

$6.05

5

.PLATE,SEAT LOCK

45222-43G00

Unavailable

6

NUT

08316-1006B

$2.50

7

CUSHION

09321-10012

$2.92

8

.CUSHION

45148-08H00

Unavailable

9

CUSHION,SEAT MOUNT REAR

45141-08H00

$6.30

10

SPACER (6.5X9X8)

09180-06261

$1.91

11

BOLT

01550-0616B

$2.48
