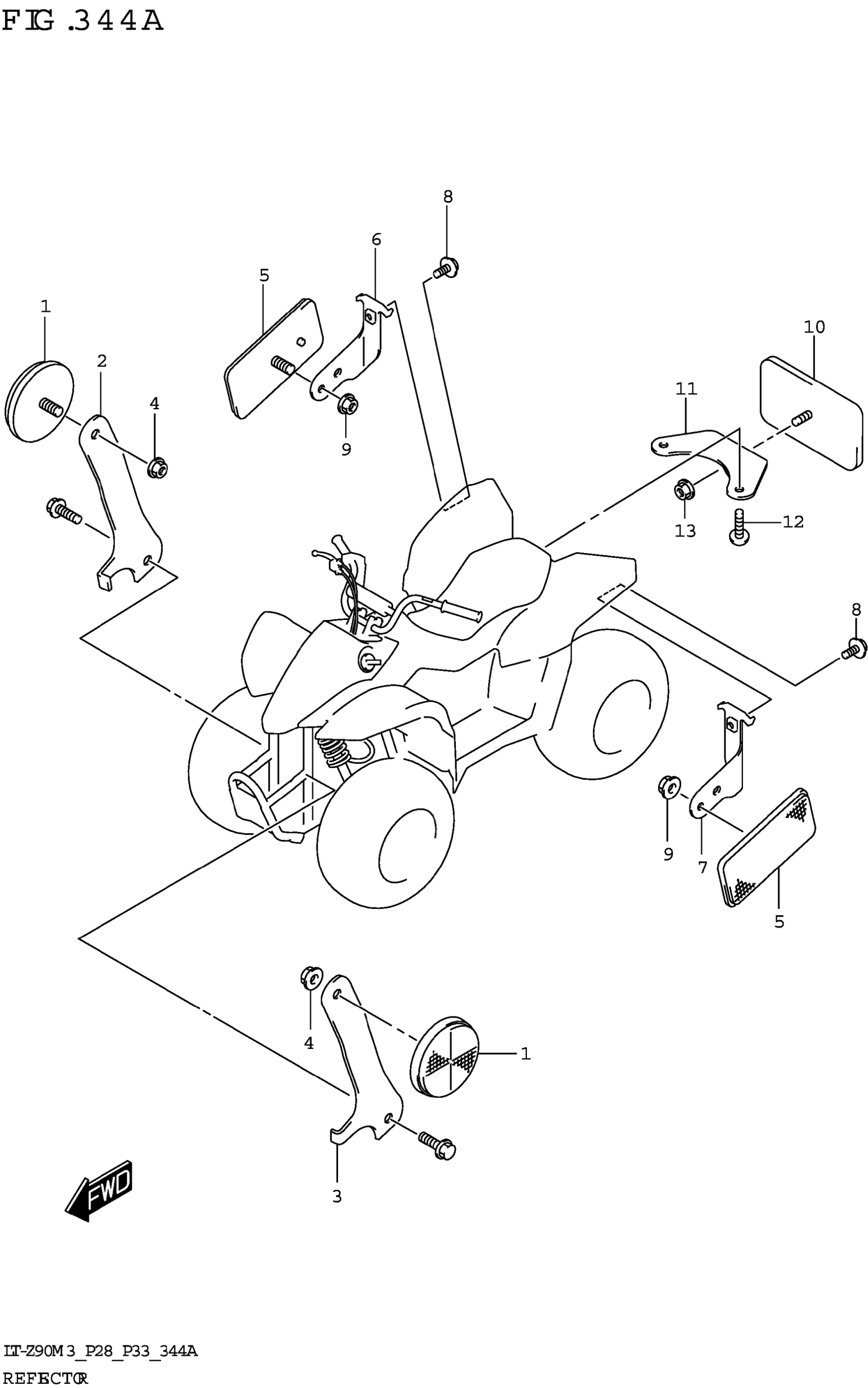

Suzuki LT-Z90M3 (2023) REFLECTOR (P28) Diagram

#

Description
Price

1

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

2

BRACKET,FRONT SIDE RR,R

35956-08H00

Unavailable

3

BRACKET,FRONT SIDE RR,L

35957-08H00

Unavailable

4

NUT

08316-1005A

$2.19

5

REFLECTOR ASSY,RR

35970-07F01

$20.88

6

BRACKET,REAR SIDE REFL,R

35975-08H00

Unavailable

7

BRACKET,REAR SIDE REFL,L

35976-08H00

Unavailable

8

BOLT (6X13.5)

09111-06088

$2.03

9

NUT

08316-1005B

$2.50

10

REFLECTOR ASSY,RR

35970-07F01

$20.88

11

BRACKET,REAR RR

35974-08H00

$8.90

12

SCREW

03541-0516A

$1.49

13

NUT

08316-1005B

$2.50
