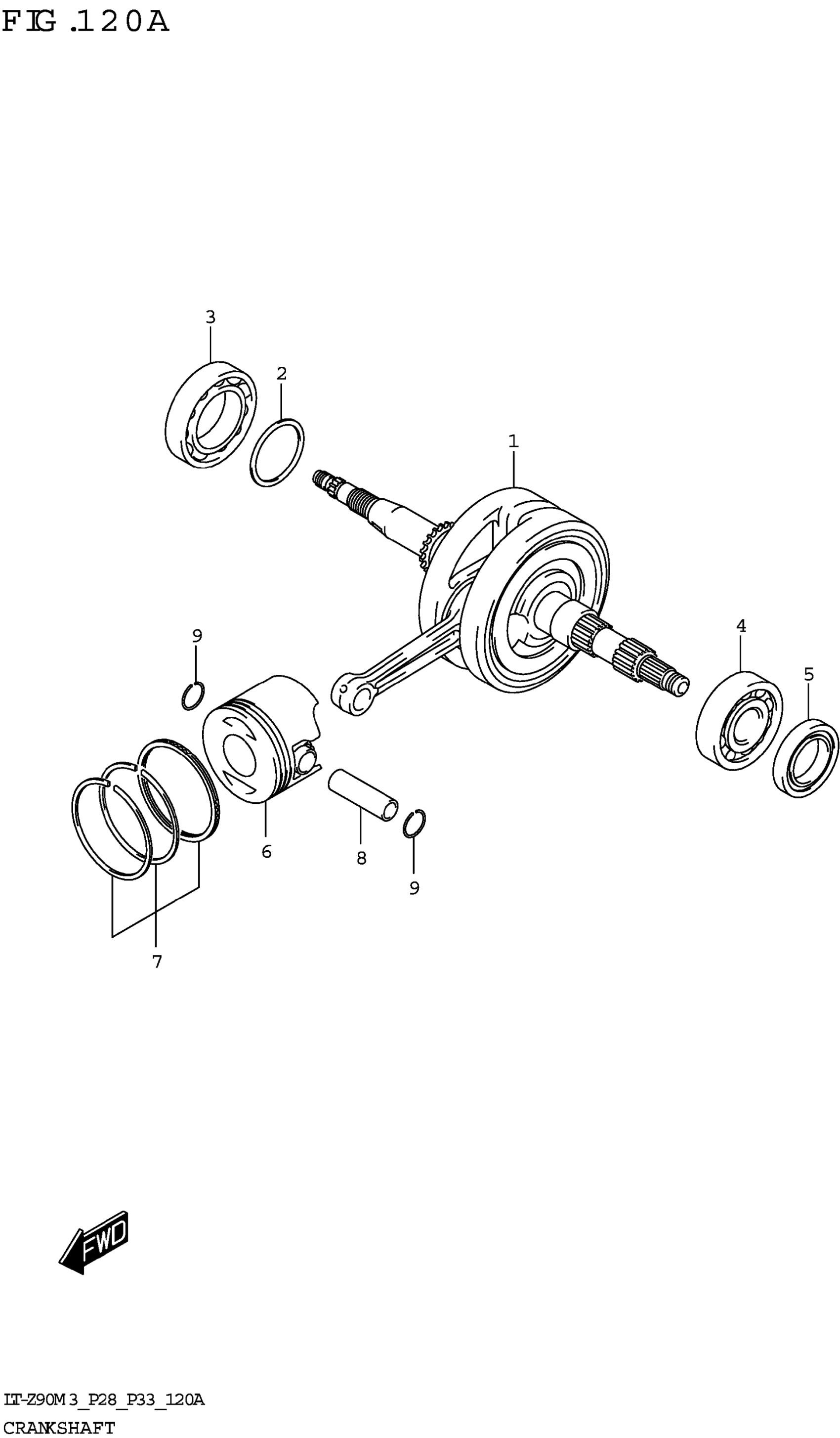

Suzuki LT-Z90M3 (2023) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-08H02

$591.62

2-1

SHIM (35X42X0.50)

09181-35101

$2.41

2-2

SHIM,35X42X0.55 (35X42X0.55)

09181-35025

Unavailable

2-3

SHIM,35X42X0.6 (35X42X0.6)

09181-35103

Unavailable

2-4

SHIM,35X42X0.65 (35X42X0.65)

09181-35026

Unavailable

2-5

SHIM,35X42X0.7 (35X42X0.7)

09181-35104

Unavailable

2-6

SHIM,35X42X0.75 (35X42X0.75)

09181-35105

Unavailable

2-7

SHIM (35X42X0.8)

09181-35106

Unavailable

2-8

SHIM (35X42X0.85)

09181-35107

Unavailable

2-9

SHIM (35X42X0.9)

09181-35108

Unavailable

2-10

SHIM,35X42X0.95 (35X42X0.95)

09181-35109

Unavailable

2-11

SHIM (35X42X1)

09181-35110

$5.73

2-12

SHIM,35X42X1.05 (35X42X1.05)

09181-35113

Unavailable

2-13

SHIM,35X42X1.1 (35X42X1.1)

09181-35116

Unavailable

2-14

SHIM (35X42X1.15)

09181-35118

Unavailable

2-15

SHIM,35X42X1.2 (35X42X1.2)

09181-35120

Unavailable

2-16

SHIM,35X42X1.25 (35X42X1.25)

09181-35123

Unavailable

2-17

SHIM (35X42X1.30)

09181-35125

Unavailable

3

BEARING,35X62X14 (35X62X14)

09262-35063

Unavailable

4

BEARING,25X52X15 (25X52X15)

09262-25122

$45.60

5

SEAL,OIL,25X42X6 (25X42X6)

09283-25100

$13.78

6

PISTON

12111-08H00-0F0

$70.53

7

RING SET,PISTON

12140-08H00

$72.18

8

PIN,PISTON

12151-08H00

$16.65

9

RING

09381-14001

$1.49
